4 Inch IPS Electronic Display With High Brightness and High Contrast and Full Viewing Angle

Name: 4 Inch IPS Electronic Display With High Brightness and High Contrast and Full Viewing Angle
Brand: startek
SKU: 120762963

Negotiable MOQ: 1 Piece (Price negotiable depending on order volume and customization)

Key Specifications

Place of Origin:

Guangdong, China

Brand Name:

startek

Model Number:

KD040FM-1A

Shenzhen Startek Electronic Technology Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shenzhen

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Guangdong, China

Brand Name startek

Model Number KD040FM-1A

Type TFT

Detiled Descriptions:

1	LCD name	4 inch IPS outdoor display
2	Part No.	KD040FM-1A
3	Compatible part No.	No
4	Size.	4.0 inch
5	Display type	IPS
6	Display colors	65K/262K /16.7M
7	Resolution (pixels)	480(RGB)*800
8	Pixel pitch	0.108(H)*0.108(V)

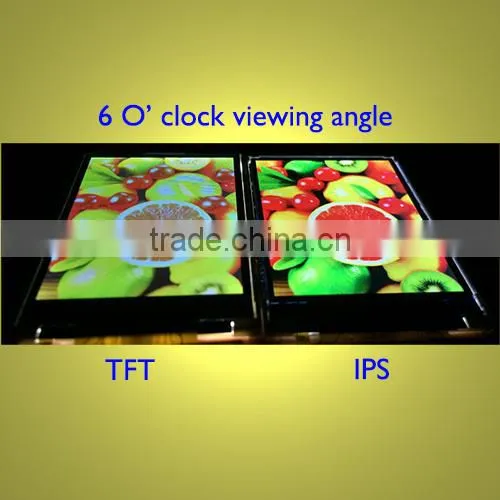

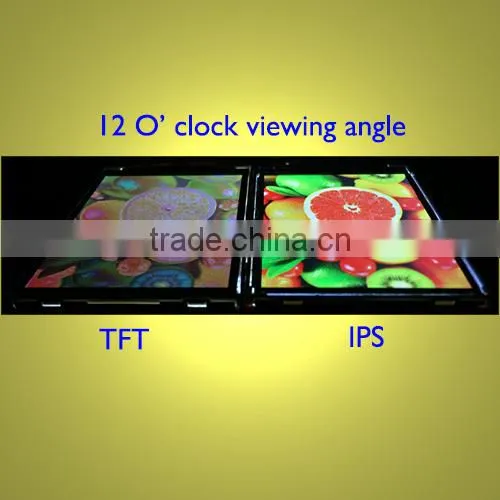

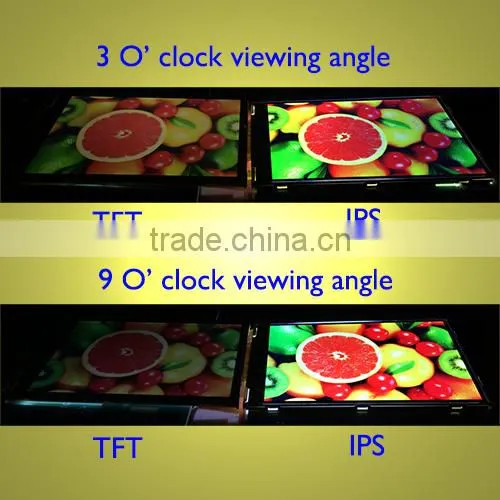

9	Viewing direction	ALL (160°)
10	Controller IC	ILI9806E
11	Luminance	350cd/m²
12	Contrast	500
13	Display mode	Transmissive Normally Black
14	Pin NO.	50pins
15	Pin pitch	0.5mm
16	Connecting type	FPC Socket
17	Overall size	58.2698.12.2 mm
18	Viewing area	53.44*88.0 mm
19	Active Area	51.84*86.40mm
20	Interface type	8/9/16/18 bit MCU 16/18/24 bit RGB 3 wire SPI
21	Input voltage	3.3V
22	Backlight type and color	LED backlight /White
23	Backlight	8 LED in series V_led =12.8V, I_led=40mA
24	Life span	100000h
25	Operating temperature range	-20----70 °C
26	Storage Temperature range	-30----80°C
27	Certification of registration	ISO9001:2008
28	Compliant	RoHS

Lead time:

Sample (1---30 PCS) immediately

31---100 PCS 1 week

101---500 PCS 1--2 weeks

501---1000 PCS 2--5 weeks

1001---5000 PCS 3--5 weeks

5000 PCS+ 5--7 weeks

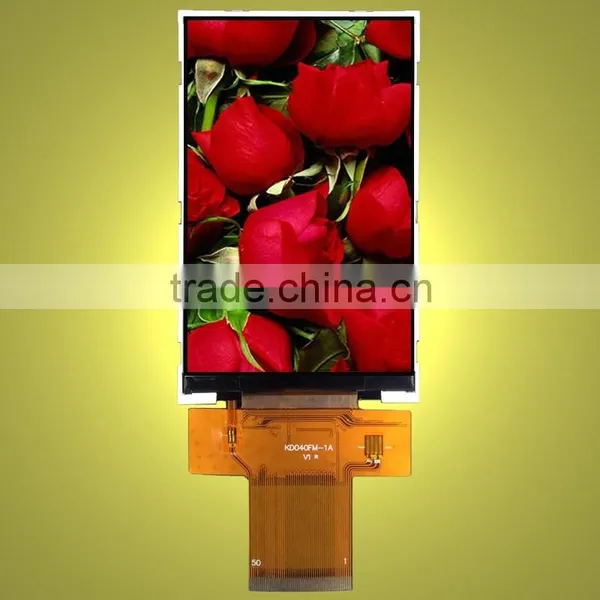

Pic 1: The photo of the front of the working LCD module

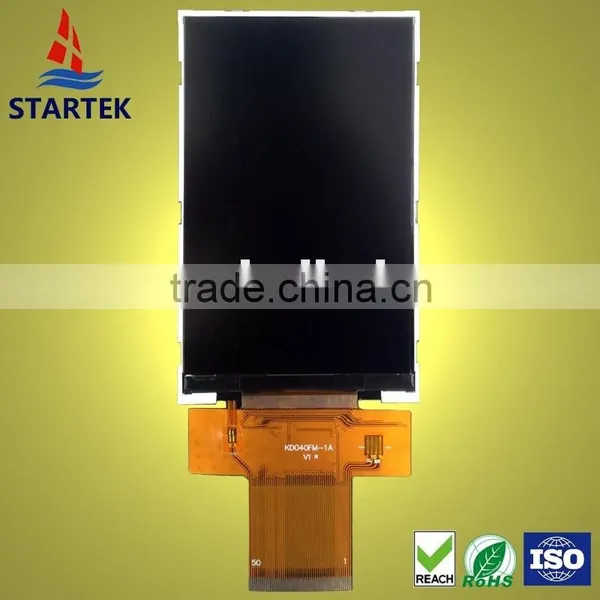

Pic 2: the photo of the front of the non-working LCD module

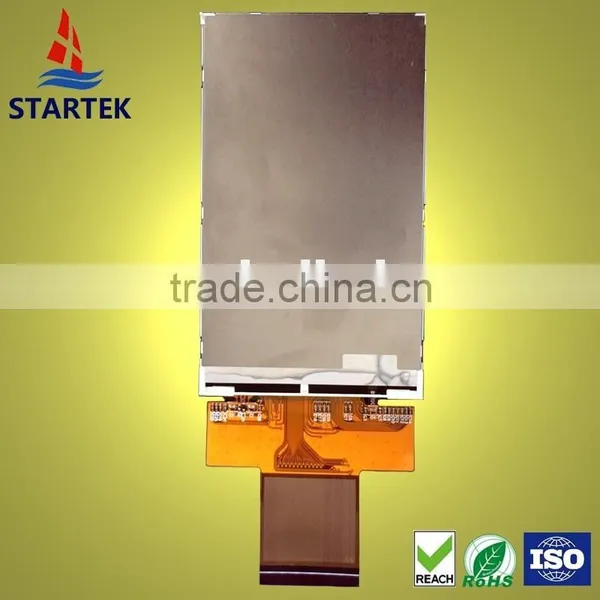

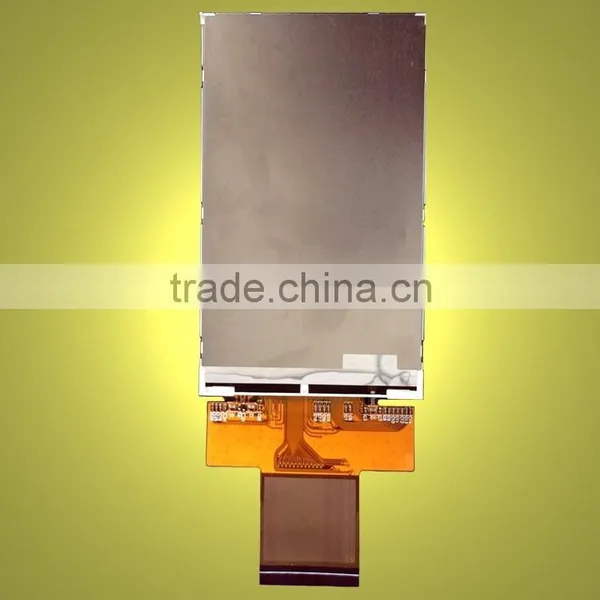

Pic 3; the photo of the back of the LCD module

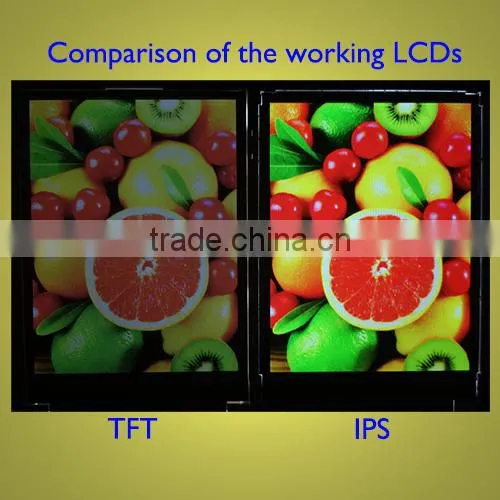

KD040FM-1A is a very special LCD module,the display effect is very similar to OLED.

Compared with the usual LCD module, it has great difference:
