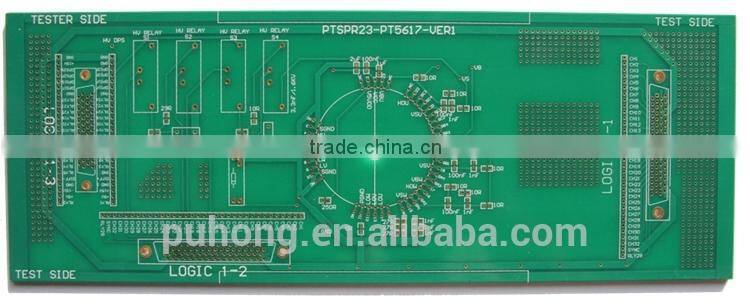

Help CenterHot Sales Fr4 1.0mm 1oz Drone Pcb
Related Products
-
OEM/ODM Service Round Pcb BoardUS$ 0.1 - 1MOQ: 1 Piece -
Quick Shipping 1.2mm Wireless Remote Control PcbUS$ 0.1 - 1MOQ: 1 Piece
-
Great Price Thermally Conductive Led PcbUS$ 0.1 - 1MOQ: 1 Piece
-
Factory Odm Inverter Welding Pcb BoardUS$ 0.1 - 1MOQ: 1 Piece
-
OEM Manufacture Fr4 Weighing Scale PcbUS$ 0.1 - 1MOQ: 1 Piece
Technical Capability(Rigid PCB)
Technology Parameter |
2014 |
Max. Layer Count |
20L for prototype |
12L for mass production | |
Base material |
CEM-1,CEM-3,FR4(Normal Tg,High Tg, |
Finish Board thickness |
0.40mm to 4.0mm |
Base Copper Foil |
1/3 oz to 4 oz |
Min. Line Width/Spacing |
3.0/3.0mil (0.076/0.076mm) |
Min. Mechanical Drill Size |
0.15mm |
Min. Dielectric (Core) Thickness |
2mil(0.05mm) |
Aspect Ratio |
12:1 |
Impedance Control |
8% |
Blind Via/Buried Via |
Yes |
HDI Capability |
2+N+2 |
Surface Finish |
HAL,HAL (Lead-free),OSP,Immersion Gold, |
Technical Capability(FPC)
Technology Parameter |
2014 |
Max. Layer Count |
20L for prototype |
12L for mass production | |
Base material |
CEM-1,CEM-3,FR4(Normal Tg,High Tg, |
Finish Board thickness |
0.40mm to 4.0mm |
Base Copper Foil |
1/3 oz to 4 oz |
Min. Line Width/Spacing |
3.0/3.0mil (0.076/0.076mm) |
Min. Mechanical Drill Size |
0.15mm |
Min. Dielectric (Core) Thickness |
2mil(0.05mm) |
Aspect Ratio |
12:1 |
Impedance Control |
8% |
Blind Via/Buried Via |
Yes |
HDI Capability |
2+N+2 |
Surface Finish |
HAL,HAL (Lead-free),OSP,Immersion Gold, |
| Lead Time (working day) | 1 layer | 2 layers | 4 layers | 6 layers | 8 layers | 10 layers | |
| Sample | Fastest | 1 wd | 1 wd | 2 wd | 3 wd | 3 wd | 5 wd |
| Standard | 3 wd | 4 wd | 6 wd | 7 wd | 8 wd | 10 wd | |
| Production | Standard | 6 wd | 7 wd | 12 wd | 13 wd | 14 wd | 16 wd |
Founded in 2002, MingDa (HK) Electronic Technology Group Co.,Ltd(Subsidiary: Guangzhou PuHong Electronic Co.,Ltd) is dedicated to supply high quality PCB(Printed Circuit Board) products and services to customers all over the world.
Our factory locates in Dongguan City, Guangdong Province, China which has a modern plant with 30,000 square meters floor area, brand-new equipments.
Our factory's monthly capacity is 900,000 square feet and is capable of producing over 1000 varieties of prototypes.
The PCB products produced by our factory have been widely applied to various fields such as industrial & medical equipment, automotive, telecommunication, consumer electronics.
Our factory is specialized in manufacturing high-mix-low volume double-sided & multilayer PCB, metal(aluminum) base PCB&FPC.
Quick turn is our factory's another specialty. We delivers PCB prototype and low volume boards with fastest lead time at 24 hours for 2 layer, 48 hours for 4 layer.
Through the sustaining improvement of quality management system, our factory gets certification of UL, ISO 9001:2008, TS16949 and provides RoHS-compliant products.
Our company is committed to provide the higher quality products and services to meet customers' satisfaction.
We do hope you will choose MingDa (HK) Electronic Technology Group Co.,Ltd as your valuable supplier.
We are looking forward to a prosperous future with you!
"Meet what customer need" is our service principle and "Quick response, Professional Service
& Strive for the best" is our service guideline.
Our sales and customer service team is always ready to answer your questions-provide quota
tion within 4 hours after receiving quotation information, track and report the status of product
whenever, on-time shipping etc.
Q:Do you allow multiple design per setup?
A:Yes.
Q:How long does shipping take ?
A:It depends on the destination location. In most parts of the developed world, delivery by Fed
Ex/UPS/DHL is normally 2-3 days(excluding weekends).
