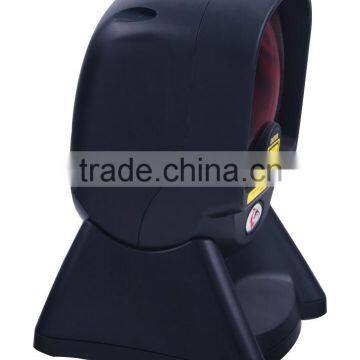

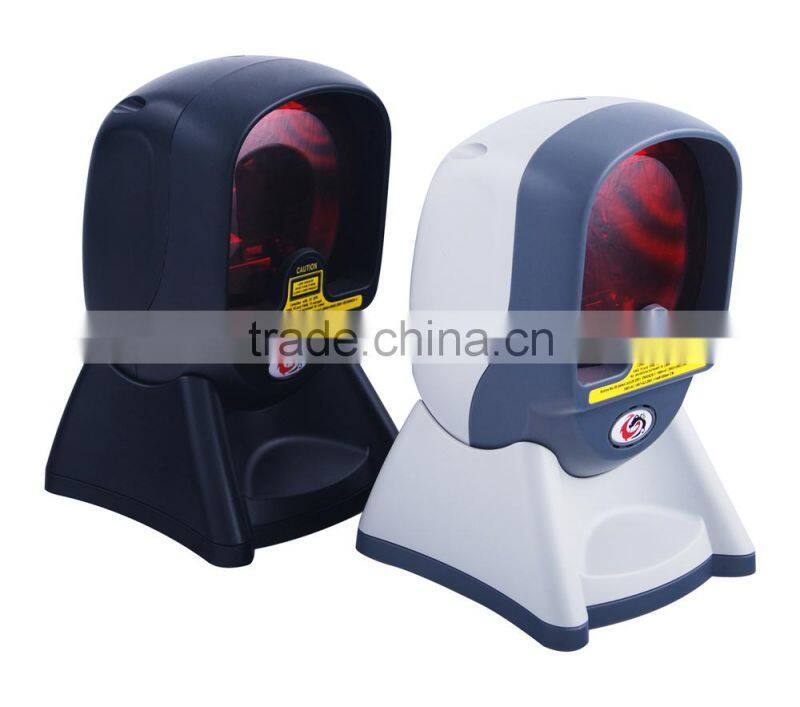

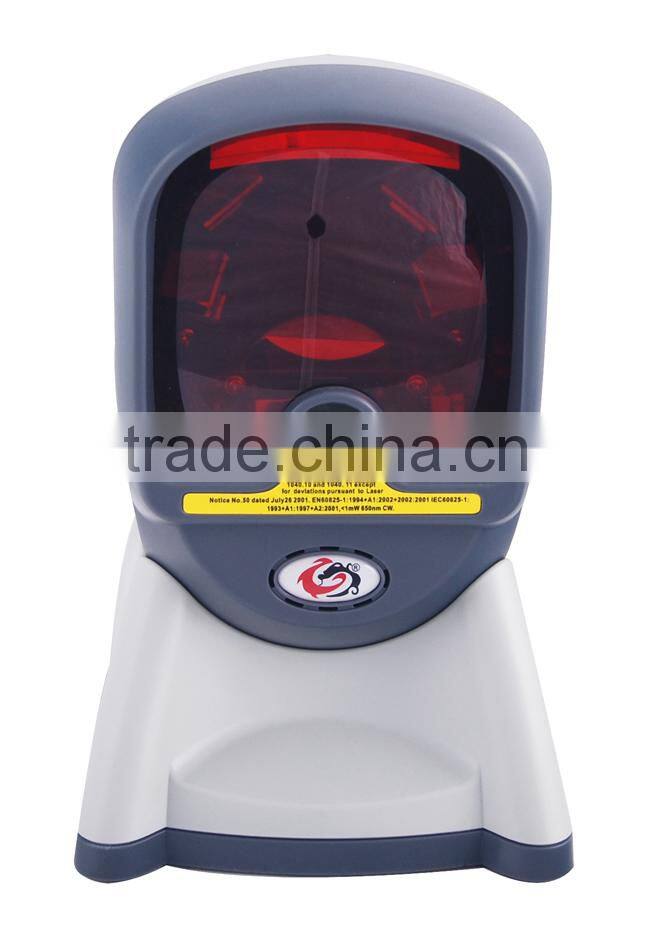

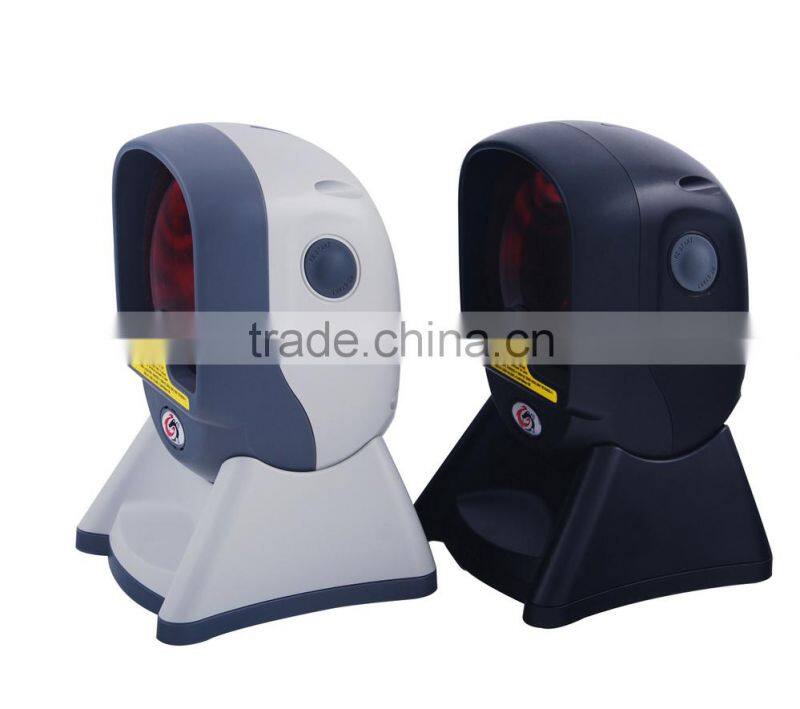

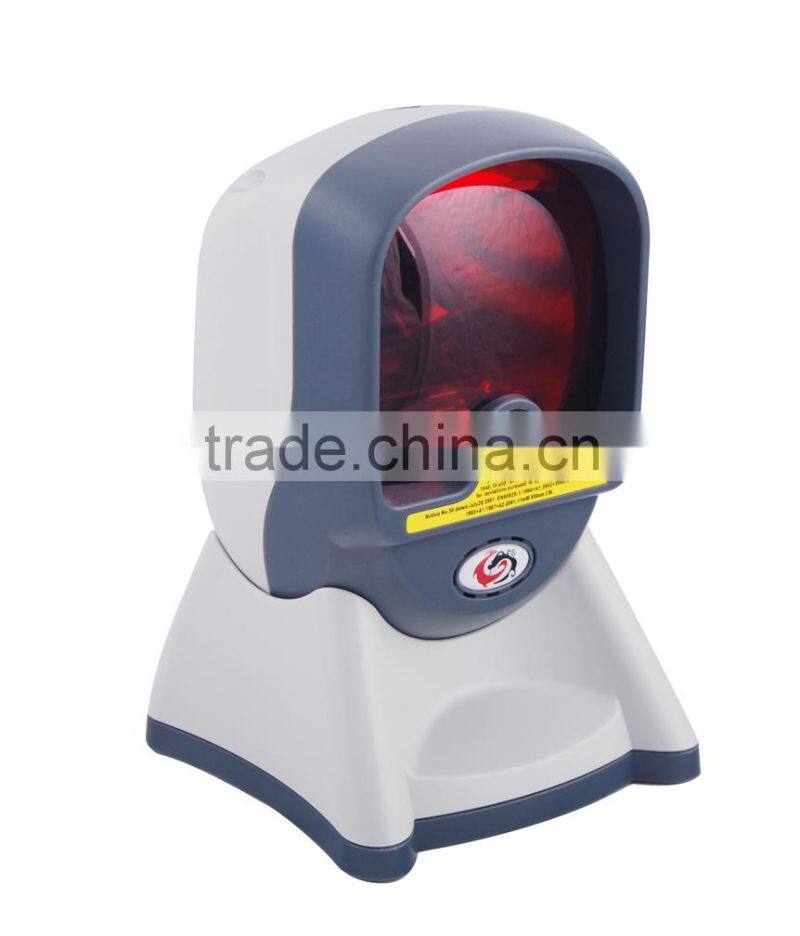

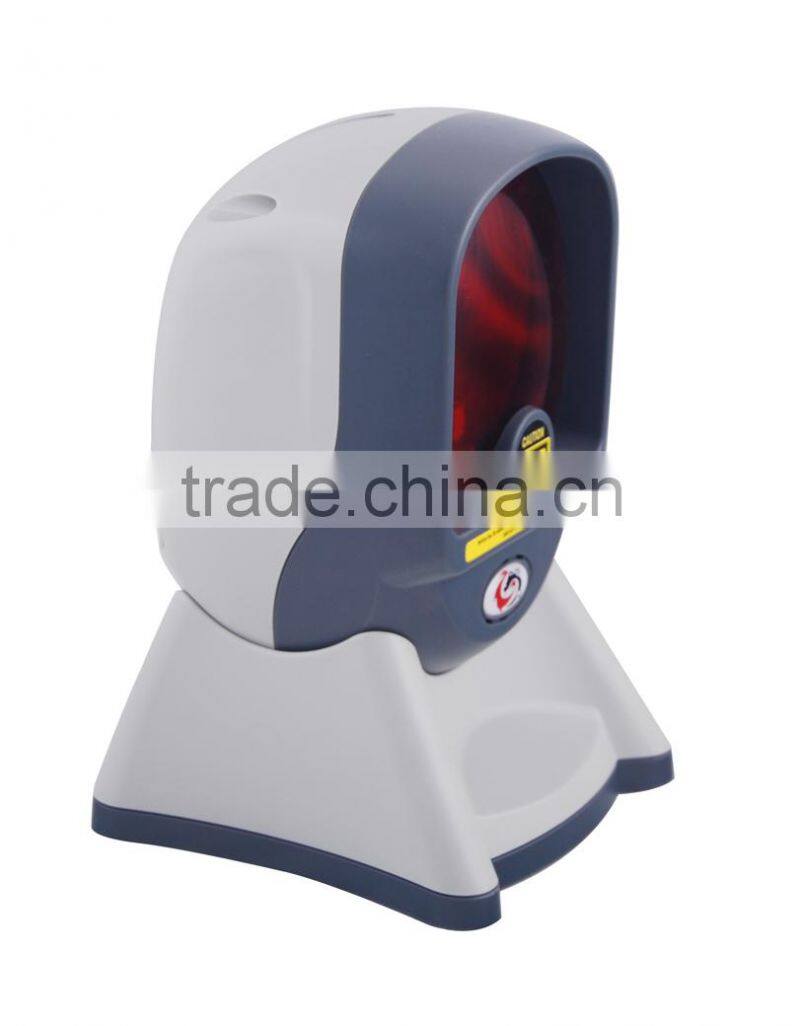

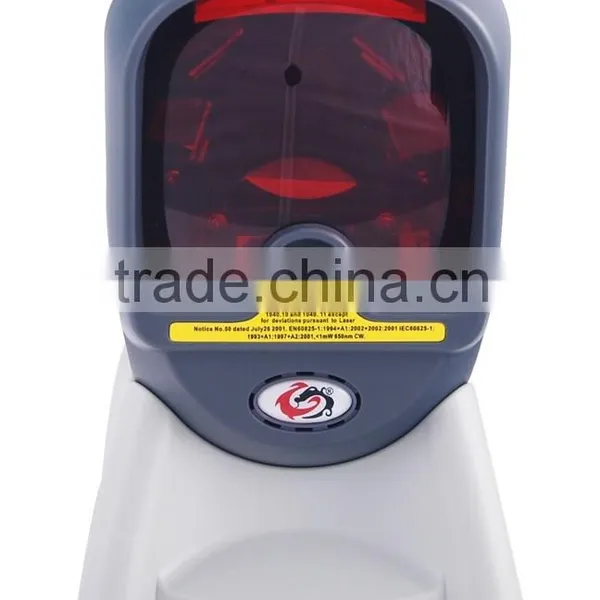

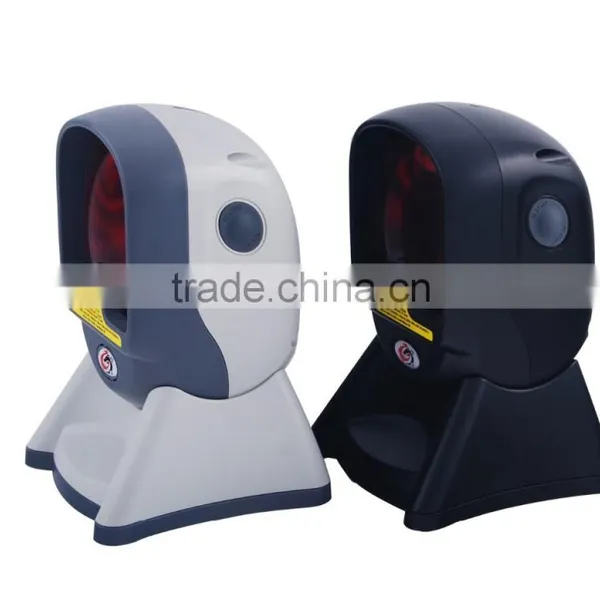

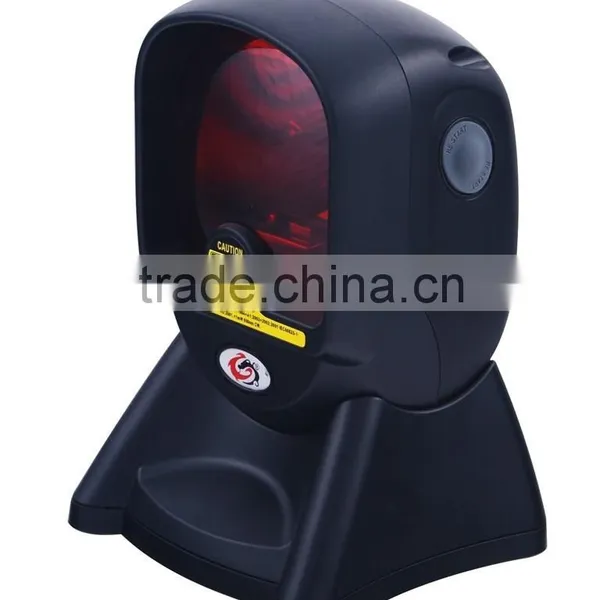

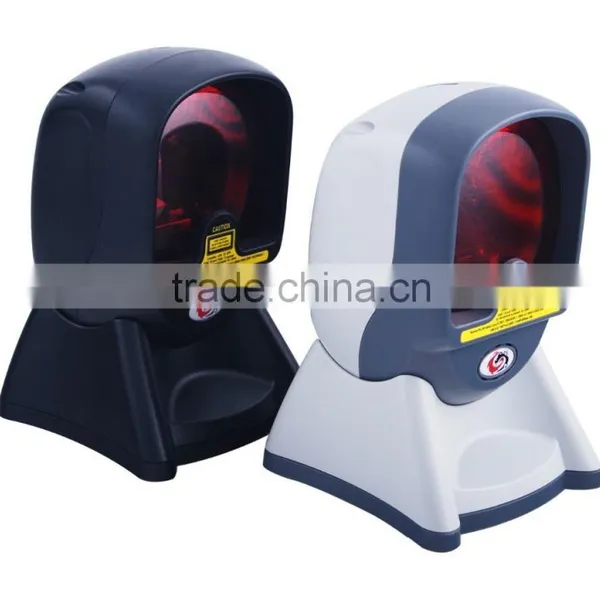

Omnidirection Laser Barcode Scanner QBS-9160
Specifications
Omnidirection barcode scanner ,
1.6 direction scan field ,24 lines Scan Pattern
2.Sweet spot scanning
Specifications;
1. omnidirectional barocde scanner QBS-9160
2. support both omnidirectional and single-line scan
3. suit for supermarketOmnidirectional Laser Barcode Scanner QBS-9160
1. QBS-9160 Eagle Eye provides aggressive omnidirectiona scanning in a concinnity design with competitive price for meet retailers requirement.
2. QBS-9160 is the new hands-free omnidirectional scanner offer to market at the beginning of 2009, precents an innovative and concinnity design will let it have a hot selling in all markets.
3. QBS-9160 with compact lightweight and rugged, Eagle Eye support both omnidirectional and single-line scan, an easy-to-find the optimum spot and a scan speed of
1500 scans per second in 20-line scan pattern, with 75 scans in single-line scan.
4. Double definition color LED indicator and buzzer easy to adjustable volum and duration, and response scan station on time.
5. When QBS-9160 on standby mode, system willl auto go into dormancy mode to save energy and extend the service life, when having object approach, system will auto go into scan mode quickly.
6. Suit for KB, RS-232,USB cable and meet all kinds of requirement.
Operational
Light Source Visible Laser Diode 650nm
Beeper Operation Programmable tone & volume
Visual Indicators Two color LED (blue & red)
Depth of Field 0-200mm for 0.33mm UPC/EAN 100%
Host System Interfaces USB, RS232,Keyboard Wedge Mechanical Dimensions (LxWxH) 105mm x 100mm x156mm
Weight 300g
Electrical
Input Voltage 5VDC±10%
Standby Power 1.0watts
Operating Current 200 m A typical
Laser Class CDRH class II,IEC 60825-1 class 1
EMC CE & FCC DOC compliance
Environmental
Operating Temperature 0°C to 40°C ( 32oF to 104oF)
Storage Temperature -40°C to 60°C ( -4oF to 140oF)
Humidity 5% to 95% relative humidity, non-condensing
Light Levels 4500Lux
Drop Designed to withstand 1.0m drops
Scan Performance

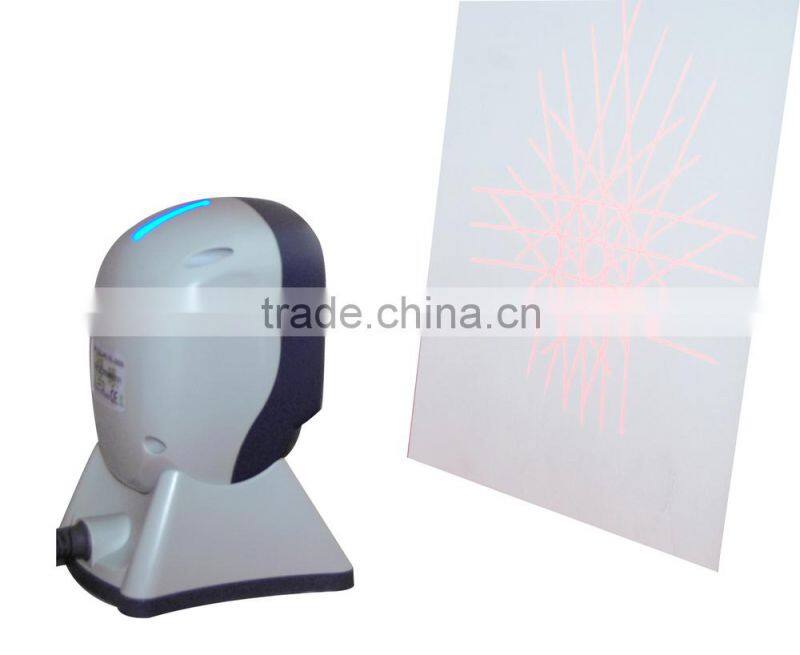

Scan Pattern Omnidirectional: 5 flelds of 4 parallel lines
Scan Speed: 1500 scan lines per second & 75 scan lines per second
Print Contrast: 30% @ UPC/EAN 100%
Minimum Resolution:
Decode Capability: UPC/EAN/JAN, UPC/EAN with supplementary, JAN 8& JAN 13, ISBN/ISSN, EAN,Code 39, Code 39 with full ASCII, Code 93, Code 128,Codabar (NM7),trioptic Code 39, MSI/Plessy, Interleaved 2 of 5 (ITF), Addendum 2 of 5,IATA Code,China Postal Code, Code 32, Industrial 2 of 5, Standard 2 of 5,discrete 2 of 5,Matrix 2 of 5, Code 11, UPC/EAN RSS, RSS ariants.
