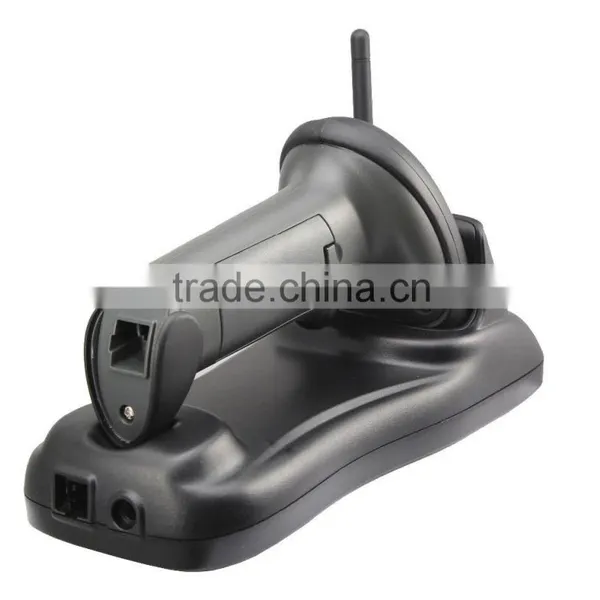

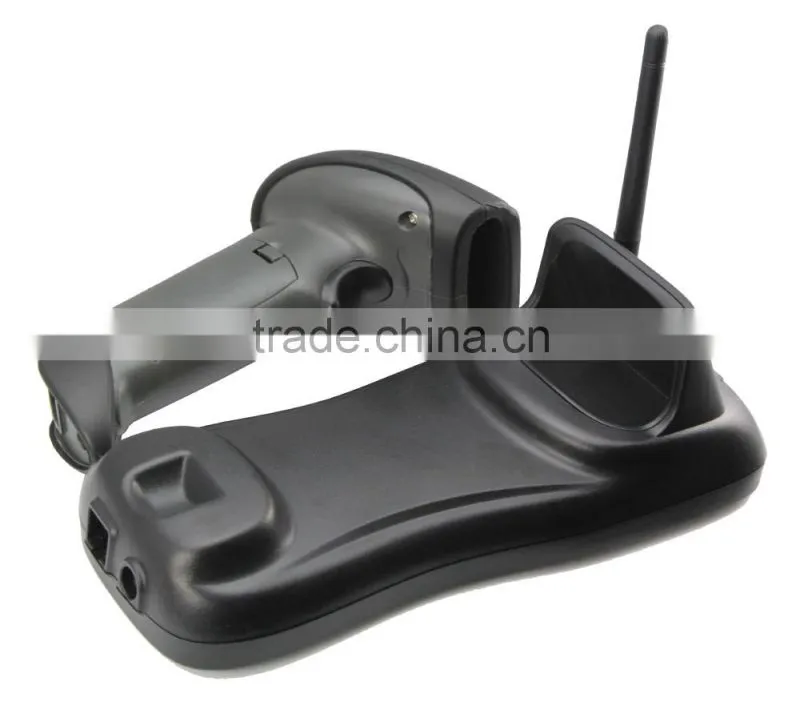

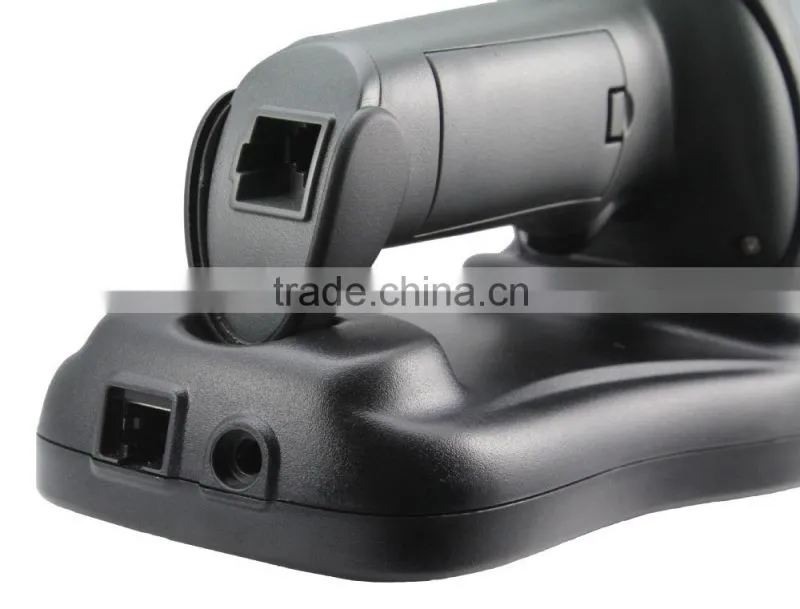

wireless Laser barcode scanner,wireless barcode scanner

Brand New wireless barcode scanner, Laser Scanner Reader Handheld Long Distance Induction Charger Wholesale,

Specifications:

Wireless Barcode Reader QBS-9300

32bits CPU, scan rate 100 times/s

300m communication distance

1 bases can support 99 scanner

Wireless/Cordless Barcode Reader QBS-9300

1. Exterior Antenna, reliable communication and extended operating range.

2. base frame can support 99 scanners

3.The communication distance on open places is up to 300m.

4. Extremely comfortable operation.

5. Infrared auto induction.

6. Full independent intellectual property rights (which have been award with numerous national patents)

7. Various decoding modes.

8. The service life of the button is up to 50,000,000 times.

9. Compatibility with RS232, PS2 keyboards as well as USB interface.

Function Parameter

Working Frequency Range: 433MHzISM frequency range

Communication Distance: Up to 300m at open places.

Light Source: Type 650nm graphic laser diode

Use Mode :Hand-held

Bit error rate :1/5 million

Safety Performance :Meet the Grade II National Criteria for Laser Safety

Barcode Type: EAN-8,EAN-13,UPC-A,UPC-E,Code 39,Code 93,Code 128,EAN128,Codaber,Industoal 2 of 5,Interleave 2 of 5,

Matrix 2 of 5, MSI, Chinese postcode etc.

Supported Interface :RS 232, PS2 keyboards, USBetc.

Scanning Mode :Manual

Transmission Rate RS232 Baudrate: 2400-38400

Resolution (pcs0.9): 0.10mm(4mil)

Depth of Field: 10-800mm (pos0.9)

Reading Speed :100 times/second

Reading angle of elevation: 60°

Reading angle of dip: 45°

Operating temperature: -20 -45

Storage temperature :-20 -45

Operating humidity :5%-85%

Storage humidity :5%-85%

Power supply: 5V

Working current :57mA

Static current :36mA

Fall test: 100 times/1.5m

Light intensity Daylight: 6000lux max

Electromagnetic interference: Complying with en50081, par1 criteria

External electromagnetic interference resistance Complying with en50082, par1 criteria

Dustproofing and waterproofing Complying with icc529 and ip42

Exterior dimension: L x W x H: 95mm x 70mm x 160mm

Materials :ABS+pc

Weight :158g
