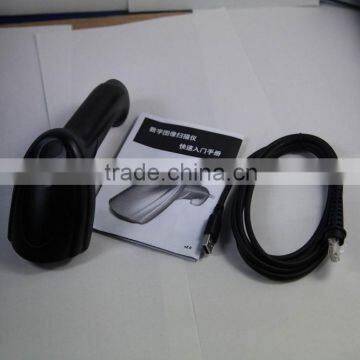

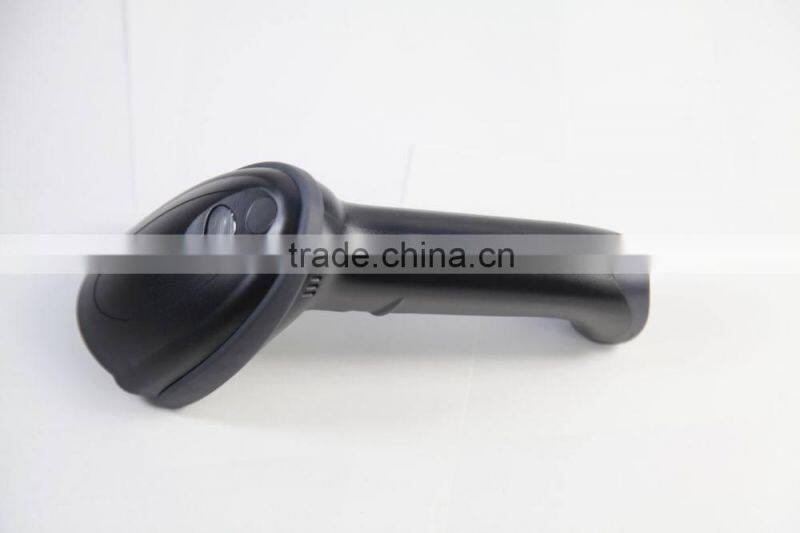

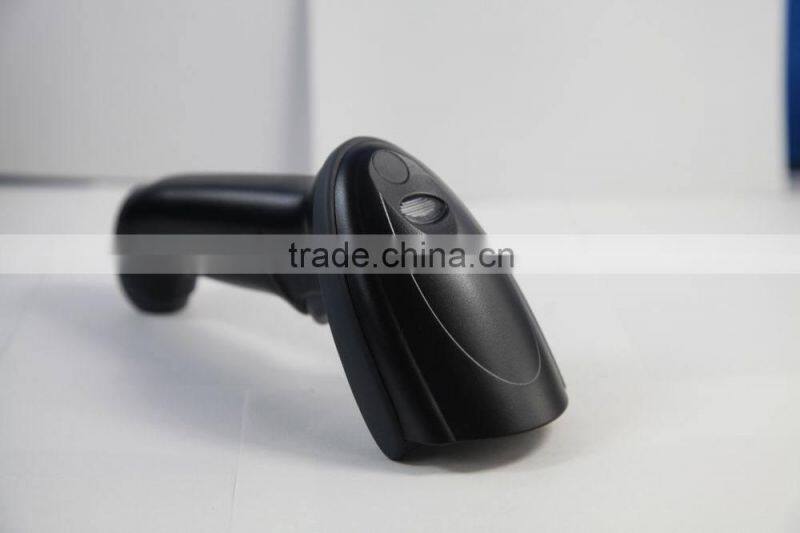

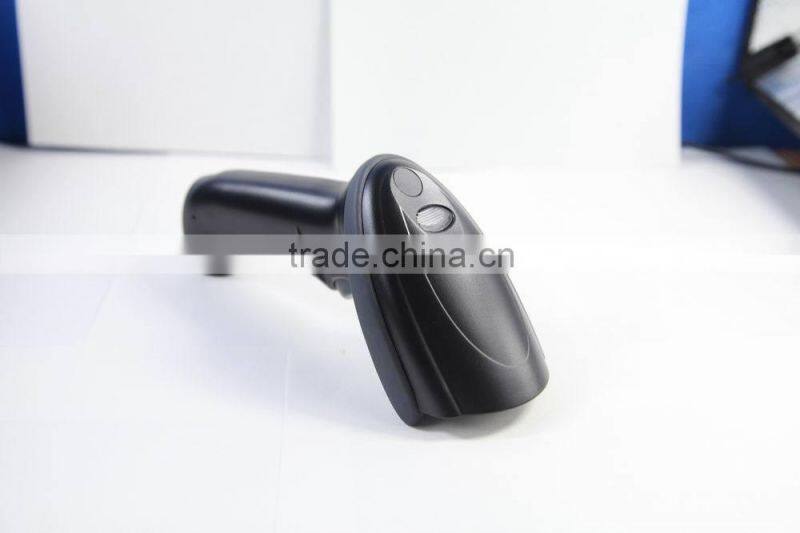

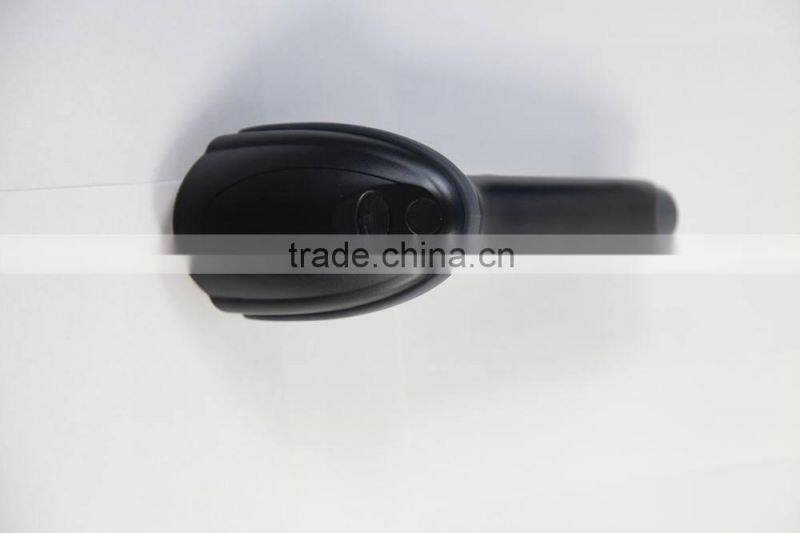

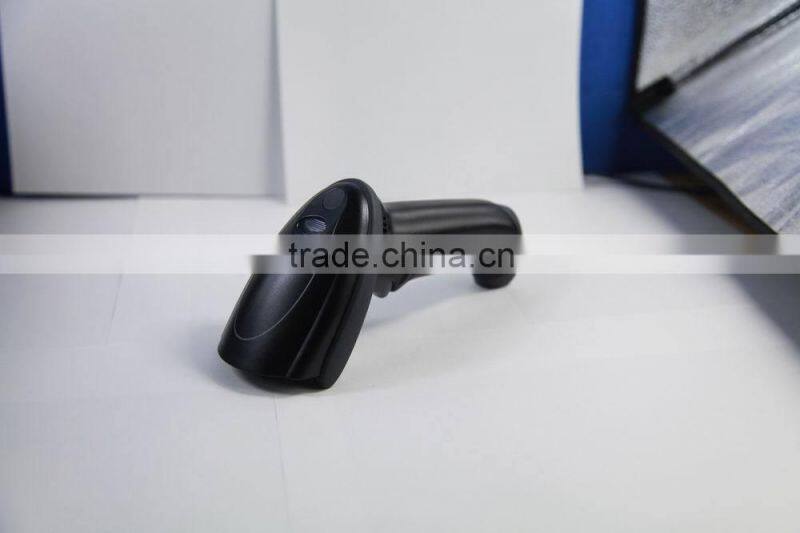

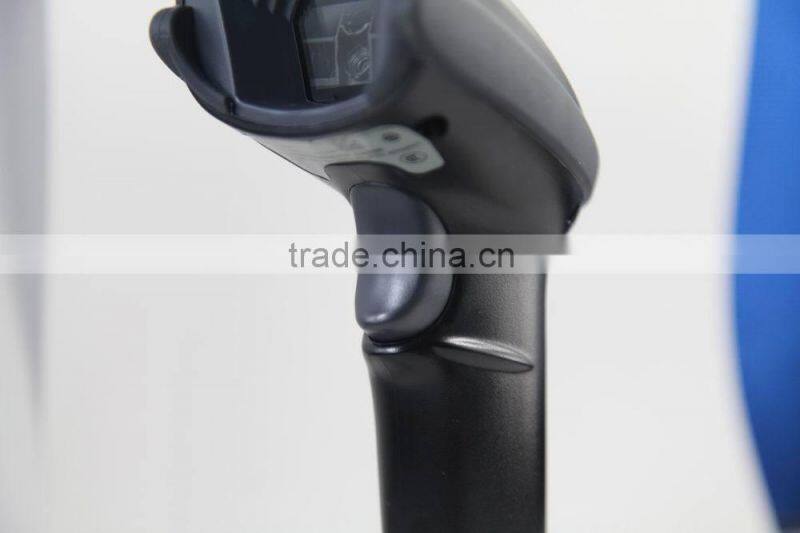

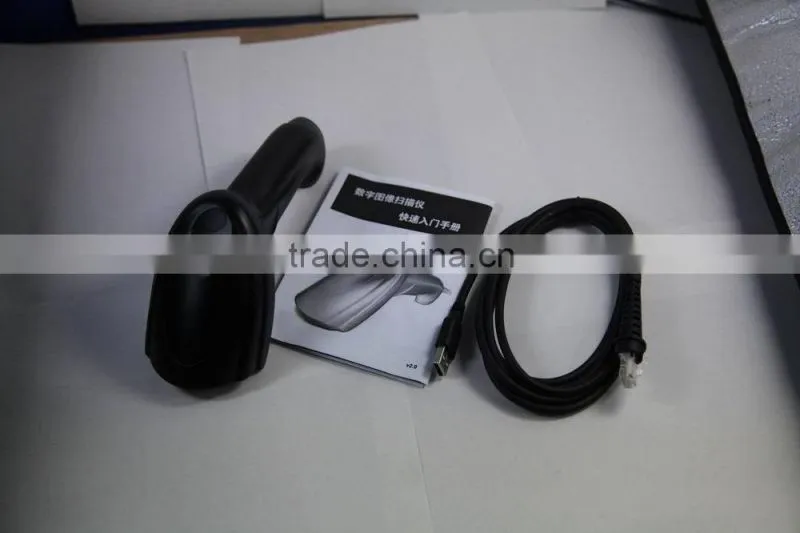

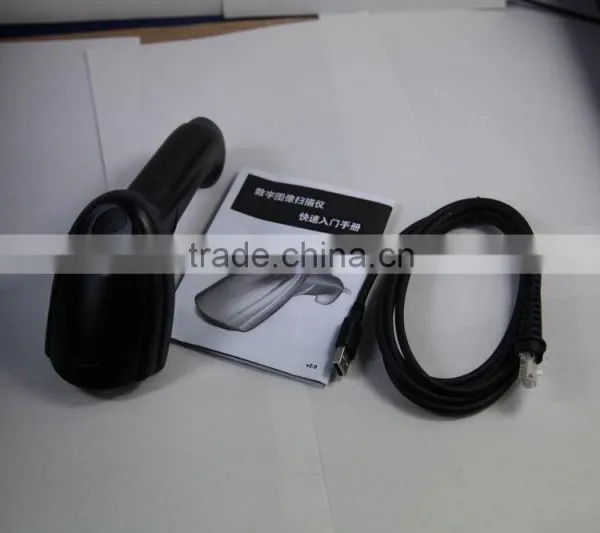

High Quality Handheld 2D Barcode Scanner factory price with competitive price
2D hand-held area image barcode scanner is the second generation imager product designed by QBS technology It is designed with the most advanced hardware and software platform therefore it offers the industrial-leading scan performance and reliability.
QBS-512D 2D series offers versatility of area-imaging technology to fulfill different industrial application demands;in category of different focal length it offers Standard Version,High Density Version, and DPM (direct part mark) Version.
Standard Version is widely considered as best cost effective product, but it offers promoted poor barcode reading performance especially on bad printed bardcode or broken barcode (both 1d and 2d).
High Density Version is capable to read to minimum 3 mil barcode and all above (both 1d and 2d), it offers wide range of scanning element and scanning capability.
DPM Version offers ideal solution forreading DPM codes (etching by laser) on various materials, for instance PCB-boards, resin products, and metal.
QBS-512D 2D has very compact but ergonomic design, from where it is designed with high quality standard and performance to be widely used in versatility industrial applications including Auto motor, Medical industry,Logistical, Quality tracking and so on.
Highs
1)Omni directional scanning capability: No need to adjust barcode
Promoted image processing: High quality image
2)Multiple Focal Options: Three product versions (Standard, HD and DPM),
leading to improved productivity
3)Multi-interface: Auto interface detection

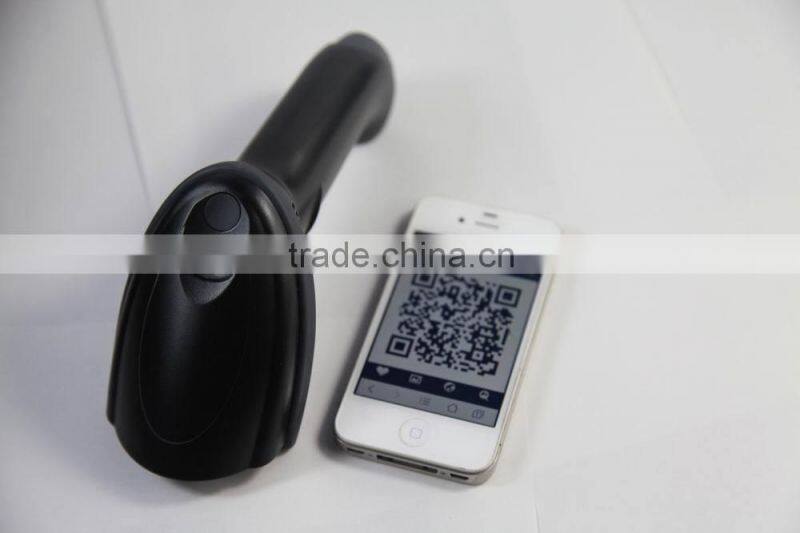

Support mobile screen reading: Capable to read coupons on mobile phone
4)Medical standard material: Anti- bacteria material
5)High IP rating: IP43
6)High Drop performance: 6 inches

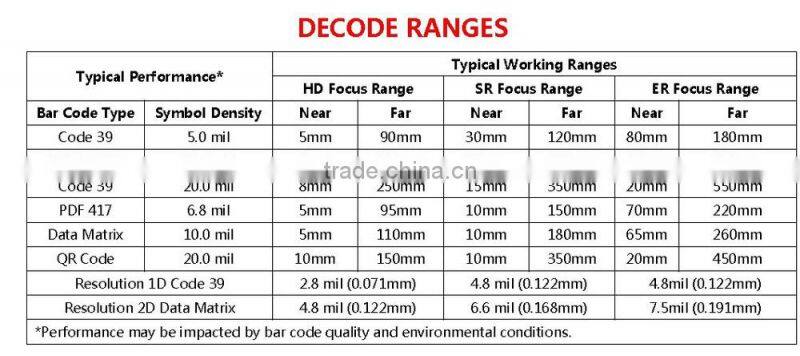

*Performance may be impacted by bar code quality and environmental conditions.
Spec Chart Physical Characteristics
Dimensions: 18.0 cm H x 70cm L x 8.5 cm W
Weight (w/o cable): 160g
Power: 5 VDC ± 10% @ 450 mA Performance Characteristics
Light Source: Aimer: 617 nm LED
Illumination: 625 nm LEDs
Field of View: 39.6° (H) x 25.8° (V)
Roll: 0 - 360°
Pitch: ± 65° or greater
Yaw: ± 60° or greater
Print Contrast: 25% minimum reflective difference Symbology Decode Capability
1D: UPC/EAN, UPC/EAN with supplementals, ISSN, BooklandEAN,
UCC Coupon Extended Code, Code128, GS1-128, ISBT 128,
Code 39 Full, ASCII,Code93,Code11, Matrix 2 of 5, Code 32, Interleaved 2 of 5, Code 39, Trioptic Code 39,Discrete 2of 5, Codabar, MSI, Chinese 2 of 5, GS1 DataBar, ISBT Concat
Korean 3 of 5, Variants
2D: PDF417,MicroPDF417,ompositeCodes,TLC-39,Data Matrix,
Maxicode, QR Code, MicroQR, Aztec
Motion Tolerances: Up to 25 in. / 63.5 cm per second
Interfaces Supported: USB: HID Keyboard (default mode),
COM Port Emulation
RS232: Standard
Minimum Resolution: -SR: Code 39 4.8mil, UPC 60% 5 mil,
PDF417 5 mil,Datamatrix 7.5 mil
-HD: Code 39 3 mil, UPC 60% 5 mil,
PDF417 4 mil,Datamatrix 4.8 mil
Power Supplies: Power supplies are available for applications that do not supply power over the host cable.
REGULATORY
Electrical Safety: UL60950-1 2nd ed, CSA C22.2 No. 60950-1 2nd ed, EN60950-1/IEC60950-1 2nd ed.
LED Safety: IEC/EN60825-1:2001, IEC/EN62471:2006
EMI/RFI: FCC Part 15 Class B, ICES-003 Class B,
EN55022 Class B, EN55024
Environmental: Compliant with RoHS directive 2002/95/EEC
WARRANTY
Subject to the terms of Longway‘s hardware warranty statement, the 5100 is warranted against defects in workmanship and materials for a period of 1 years from the date of shipment.
User Environment
Operating Temp: 0° C to 55° C
Storage Temp: -40° C to 60° C
Humidity: 5% to 95%, non-condensing
Drop Spec: Withstands multiple 6 ft. drops to concrete
Ambient Light: Immune to normal indoor lighting up to 1600 Lux.
Immunity: Immune to sunlight up to 86,000 Lux.
Accessories
Hands-Free Options: TBD
