Features of HD IP Camera:
- H.264 Compression | HD | IR-CUT | SD Card Up to 32G | Two Way Audio | Onvif | Plug&Play-Scan to go
- It support 4 Preset Postions and one for alarm preset.
- Pan/Tilt: Level: 350 ° & vertical: 120 ° | Nigh Vision Up to 10 Meters | Remote/Local Video Playback.
- Motion Detection,Instant Alarm APP Alert Notification with Video Recording.
- Free APP"IPCameraHBP" on APP Store/Google Play.View on PC by CMS Software and Browser!
Features/Spec of Alarm Host:
- Send alert notifications to smart phone when alarm triggered or low battery
- Add sensors via QR code
- Interface:HDMI Port | Ethernet Port | Power | USB Port | Reset Button
- 8CH NVR 720P Video Recording
- 2.5 Inch Hard Disk up to 2TB
- RF range:Up to 50m outdoor;Up to 30m indoor
- Radio Frequency:868.4MHz EU;908.4MHz US;921.4MHz ANZ; 869.2MHZ RU
Specifications of HD IP Camera:
8Ch NVR Central Control System Alarm Host Complete Home Security System Smoke Detector | |
| Model | CS-HK01 |
| Video | |
| Video Compression | H.264 |
| Image resolution | 720P(1280x720),VGA(640x360),QVGA(320x180) |
| Image adjustment | Auto Blance/Contrast |
| White balance, BLC | Automatically |
| Lighting frequency | 50Hz, 60Hz |
| Day / Night Mode | Color during day, switches to B&W at night |
| Frame Rate | Auto, 1fps ~ 30fps |
| Camera | |
| Image Sensor | 1/4" CMOS Sensor |
| Max. Resolution | 1280x720 pixels (1 Mega pixels) |
| Lens | f: 3.6mm, F:2.4 |
| Viewing Angle | 60° |
| Min. Illumination | 0.5 Lux |
| Pan/Tilt Range | Level: 350 ° & vertical: 120 ° |
| Night Vision | |
| Night Vision Distance | up to 10M |
| Illumination | 8 infrared LEDs |
| Audio | |
| Audio Input | 1 Built-in Microphone |
| Audio Output | 1 Built-in Speaker |
| Compression | G.711A |
| Alarm | |
| Alarm detection | motion detection |
| Alarm notification | Instant APP Alarm Alert with Video Record |
| Network | |
| LAN Interface | Ethernet 10/100Mbps, Auto MDI/MDIX, RJ-45 |
| Protocols | TCP/IP,UDP/IP,HTTP,SMTP,FTP,DHCP,DDNS,UPNP,RTSP,RTMP,MUTP |
| Wireless Networks | IEEE 802.11b/g/n (150Mbps) |
| IP address | Static IP address and dynamic IP address |
| ONVIF Support | Yes |
| Wi-Fi | External Smart-Link WiFi |
| IR-CUT | Yes |
| Plug & Play (P2P) | Yes |
| I/O Port | Yes |
| General | |
| External Storage | SD Card (Capacity supports up to 32G) |
| Indoor / Outdoor | Indoor |
| Operating Temperature | 0°C ~ 55°C |
| Operating Humidity | 20% ~ 85%, non-condensing |
| Power Consumption | DC 5V/2A |
| Package Dimension | 215*165*123(mm) |
| Gross Weight | 700g |
| System Requirements | |
| Operating System | Microsoft Windows 7 / Vista / XP / 2000 |
| Brower | "Internet Explorer 6 or above Google Chrome Mozilla Firefox Mac Safari" |
Rehentech Company focus on this field for sevral years.We mainly provide plug and play Indoor/outdoor IP Camera,wireless ip camera,1080P PIR IP Camera,surveillance camera kits and distribute wireless network consumer products
All of our staff members continue to provide our customers with high quality and perfect OEM/ODM manufacturing service as always.
We provide good services to make try our best make our customer 100% satifactory and Strive for "Win-Win"!
All our IP Camera products provide "Two Year Warranty"

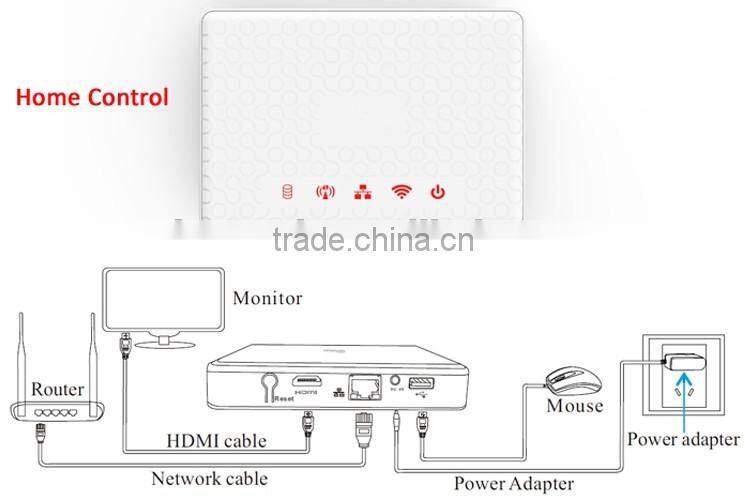

Plug the power adapter and Network Cable to the Alarm Host, down load the APP and add by Scan QR Cord.
2.How to Connect the Sensor and the IP Camera?
When you connect the alarm host successfully.Click the device--Add Sensor(Scan the QR Cord to add or trigger the sensor to add it)
Connect the IP Camera,Click the Camera--Scan the QR Cord of the IP Camera to add it.When you have add it,it will search the IP Camera auto and show on the interface in Lan.
3.When bad guy break into the house,does the light can turn on immediately?
Yes,when the System is in arm state.When bad guy break into,the light will turn on immediately to frighten the bad guy.So how this happen?
That is because of the Linkage alarm technology.When the door sensor linkage to the smart socket.When the bad guy trigger the sensor,it is also will trigger the smart socket to turn on the light.
4.How is the Auto Tracking Function Working?
For example: Contact Sensor install on the window,Click the added the door sensor on the app,you will see the Linkage Camera,choose which camera you want to link like camera 1. Set the IP Camera Preset Function,move the camera to the window as preset 1. Then you can choose the prest 1 of the linkage of windor sensor. When bad guy trigger the sensor,
the IP Camera will automatically move the the window and start recording and siren will alrm.
5.How many people to access the camera at the same time?
It supports 5 persons to view at the same time.
6.Does the Alarm Host Can Recording?
Yes,the Alarm Host not only the central control of all the products,but also can be used as an 8 Channel NVR for recoring.
7.How many IP Camera does the smart home system supported?
It is can support 8 IP Cameras.Compatible with all of our TUTK WiFi IP Camera.
8.What Server does the platform use?
It is use the TUTK Server Platform.
1. FedEx/DHL/UPS/TNT for samples, Door-to-Door;
2. By Air or by Sea for batch goods, for FCL; Airport/ Port receiving;
3. Customers specifying freight forwarders or negotiable shipping methods!
4. Delivery Time: 3-7 days for samples; 5-25 days for batch goods.
1. Payment: T/T, PayPal; 30% deposits; 70% balance before delivery.
2. MOQ: 1pcs
3. Warranty : 2 years
