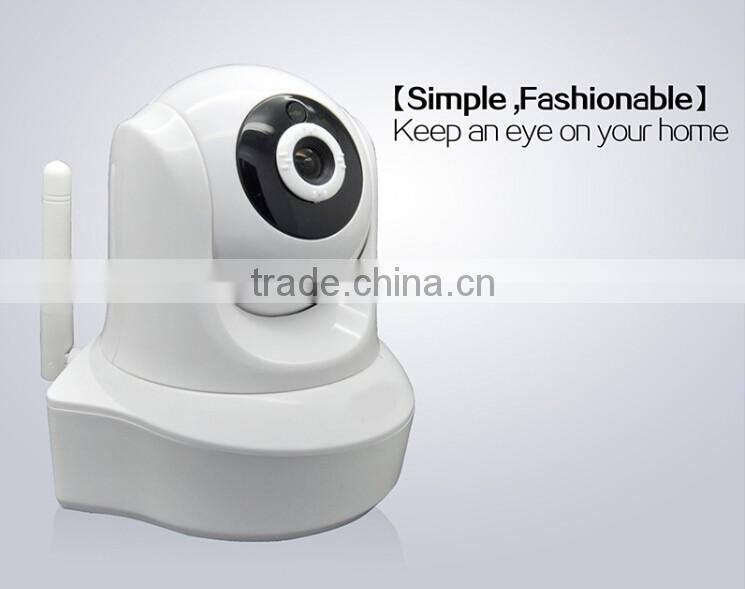

64G Recording Card Two Way Talk Full HD 1080P Infrared PIR Sensor WiFi ONVIF IP Camera Wireless with I/O Alarm Port
APP/PC Software/Browser Language Supported:
Simplified Chinese,Traditional Chinese, English,Czech,Dutch,French,German
talia,Japanese,Korean,Portuguese,Russian,Spanish.
Features of 1080P PIR WiFi IP Camera with I/O Alarm Port:
- Solution: IMX322 + HI3516C Sensor FULL HD PIR WIFI IP CAMERA
- H.264 Compression | IR-CUT | SD Card Up to 64G | Two Way Audio | Onvif | Plug&Play-Scan to go
- 1080P Full HD Resolution to provide super high quality images.

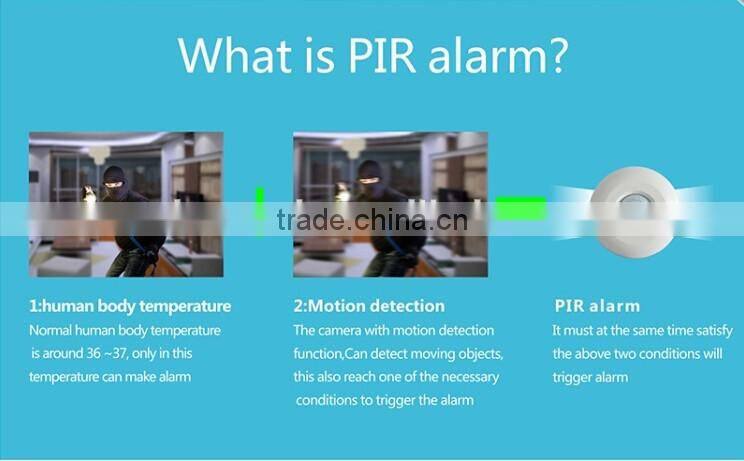

- PIR Angle 90 Degree and PIR Distance 5 Meters
- It support 4 Preset Postions and one for alarm preset.
- Pan/Tilt: Level: 350 ° & vertical: 120 ° | Nigh Vision Up to 10 Meters
- Remote/Local Video Playback.
- Motion Detection,Instant Alarm APP Alert Notification with Video Recording.
- Free APP"IPCameraHBP" on APP Store/Google Play.View on PC by CMS Software and Browser!
Specifications of Full HD PIR WiFi IP Camera Wireless:
64G Recording Card Two Way Talk Full HD 1080P Infrared PIR Sensor WiFi ONVIF IP Camera Wireless with I/O Alarm Port | |
| Model | CS-125 1080P PIR WiFi IP Camera with I/O Alarm Port |
| Video | |
| Video Compression | H.264 1080P 1080P WiFi PIR Sensor IP Camera |
| Image resolution | 108P(1920x1080),VGA(640x360),QVGA(320x180) |
| Image adjustment | Auto Blance/Contrast |
| White balance, BLC | Automatically |
| Lighting frequency | 50Hz, 60Hz |
| Day / Night Mode | Color during day, switches to B&W at night |
| Frame Rate | Auto, 1fps ~ 30fps |
| Camera | |
| Image Sensor | 1/2.8" SONY 2.4MP CMOS Sensor 1080P PIR WiFi IP Camera with I/O Alarm Port |
| Max. Resolution | 1920x1080 pixels (2 Mega pixels) |
| Lens | f: 3.6mm, F:2.4 |
| Viewing Angle | 60° |
| Min. Illumination | 0.5 Lux |

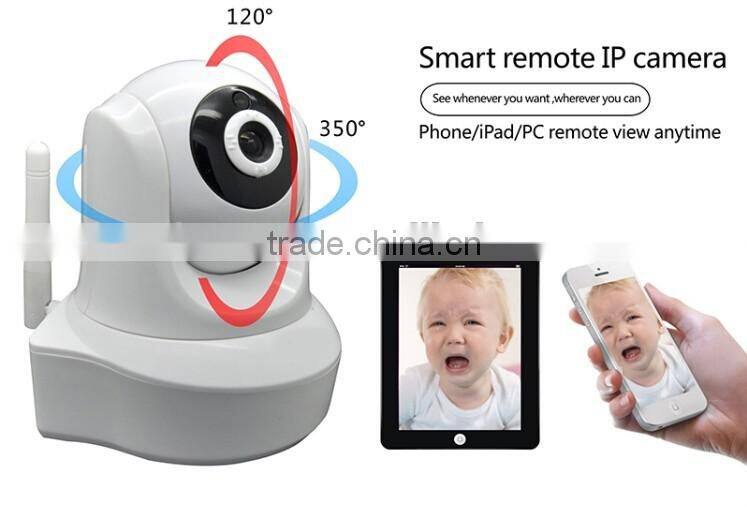

| Pan/Tilt Range | Level: 350 ° & vertical: 120 ° |
| Night Vision | |
| Night Vision Distance | up to 10M |
| Illumination | 12 infrared LEDs |
| Audio | |
| Audio Input | 1 Built-in Microphone |
| Audio Output | 1 Built-in Speaker |
| Compression | G.711A |
| Alarm | |
| Alarm detection | motion detection |
| Alarm notification | Instant APP Alarm Alert with Video Record |
| Network | |
| LAN Interface | Ethernet 10/100Mbps, Auto MDI/MDIX, RJ-45 |
| Protocols | TCP/IP,UDP/IP,HTTP,SMTP,FTP,DHCP,DDNS,UPNP,RTSP,RTMP,MUTP |
| Wireless Networks | IEEE 802.11b/g/n (150Mbps) |
| IP address | Static IP address and dynamic IP address |
| ONVIF Support | Yes |
| Wi-Fi | External Smart-Link WiFi |
| IR-CUT | Yes |
| Plug & Play (P2P) | Yes |
| I/O Port | Yes |
| General | |

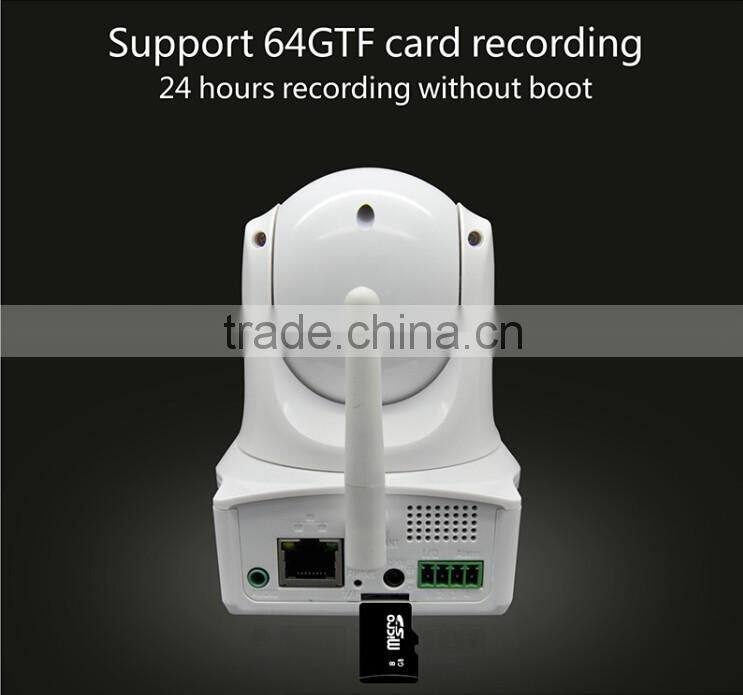

| External Storage | SD Card (Capacity supports up to 64G) |
| Indoor / Outdoor | Indoor |
| Operating Temperature | 0°C ~ 55°C |
| Operating Humidity | 20% ~ 85%, non-condensing |
| Power Consumption | DC 5V/2A |
| Package Dimension | 215*165*123(mm) |
| Gross Weight | 700g |
| System Requirements | |
| Operating System | Microsoft Windows 7 / Vista / XP / 2000 |
| Brower | "Internet Explorer 6 or above Google Chrome Mozilla Firefox Mac Safari" |
Rehentech Company focus on this field for sevral years.We mainly provide plug and play Indoor/outdoor IP Camera,wireless ip camera,2 Megapizel PIR Sensor Camera,surveillance camera kits and distribute wireless network consumer products
All of our staff members continue to provide our customers with high quality and perfect OEM/ODM manufacturing service as always.
We provide good services to make try our best make our customer 100% satifactory and Strive for "Win-Win"!
All our IP Camera products provide "Two Year Warranty"
Plug the power adapter and cable, down load the APP and add by Scan QR Cord or Smart-Link Wifi Set.
2.How to set up the Wifi?
When you first add the IP Camra,pls download the APP and click the One key wifi set up,input the WiFi SSID and Password.When you hear the music from the IP Camera,click next.Then you finish the wifi set and add the ip camera successfully!
3.Does the camera force end user to change the default password?
Yes,when you add the IP Camear successfully.You click the view for the fist time.It will pop up an information that remind to the current password is simple and pls change the default factory password to make it safe!
4.What the server does the IP Cameara Use?
We ues the world famous TUTK Server Platform.
5.How many people to access the camera at the same time?
It supports 5 persons to view at the same time.
6.How is the motion detection work?
When trigger the motion detection,it will push app notification instantly and record what happended as proof to the TF Card.
1. FedEx/DHL/UPS/TNT for samples, Door-to-Door;
2. By Air or by Sea for batch goods, for FCL; Airport/ Port receiving;
3. Customers specifying freight forwarders or negotiable shipping methods!
4. Delivery Time: 3-7 days for samples; 5-25 days for batch goods.
1. Payment: T/T, PayPal; 30% deposits; 70% balance before delivery.
2. MOQ: 1pcs
3. Warranty : 2 years
