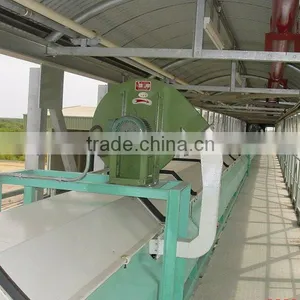

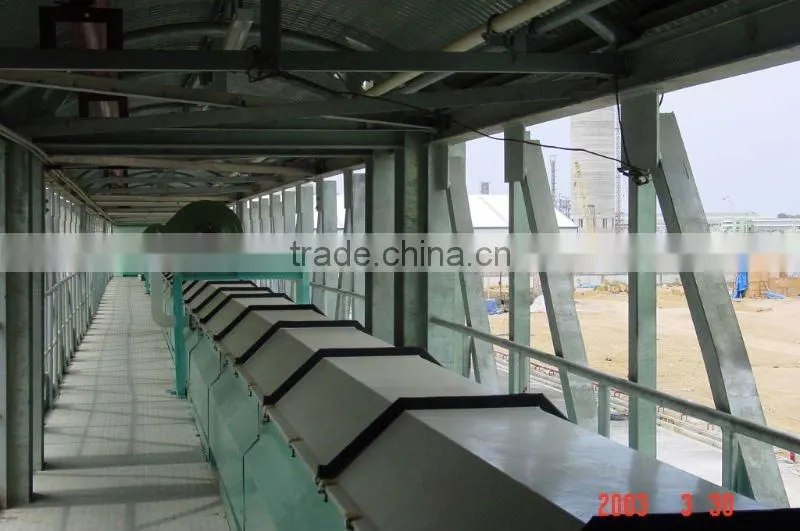

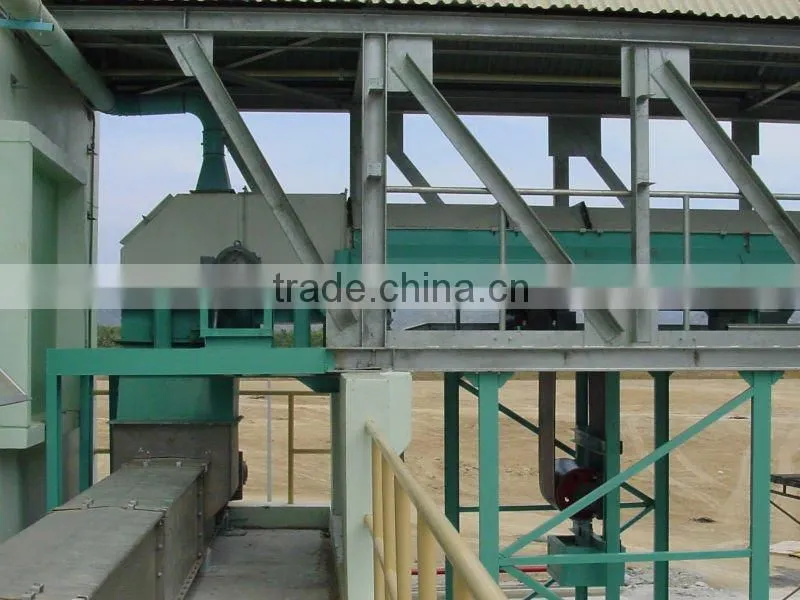

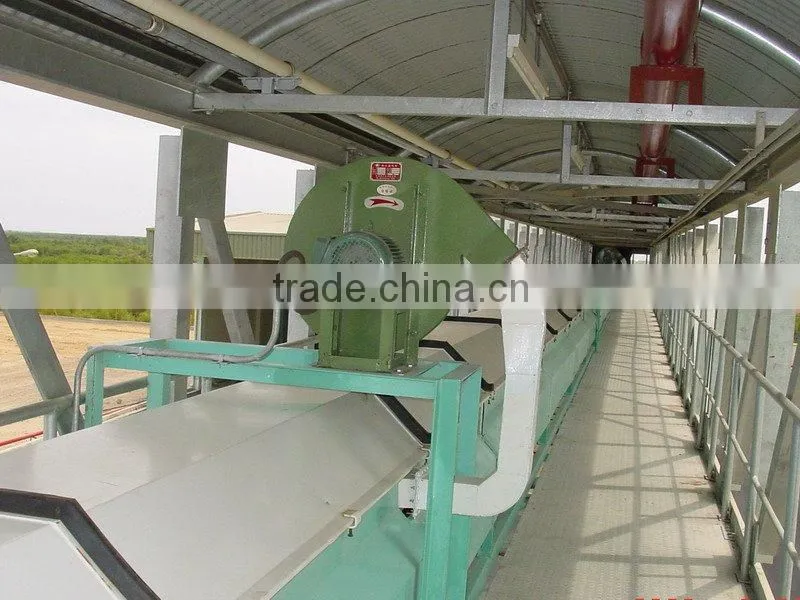

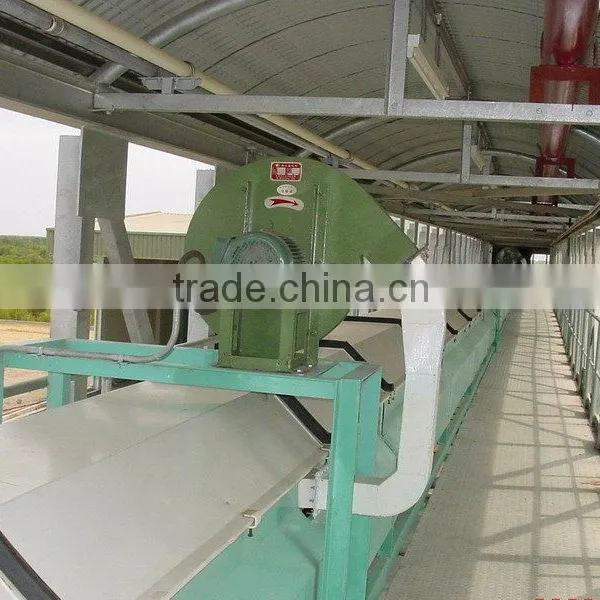

TQDS Series Air Cushion Conveyor
Principle
- Air is blown into an air chamber and then spayed out from small openings of the curved chute which is equipped on the top of the air chamber. Thus a thin air layer is formed, which is also called air cushion, between the curved chute and belt. The air cushion supports the belt instead of the traditional carrying roller of the belt conveyor and makes the transfer of the belt more stable and less power consumption.
Features
- Less moving resistance, longer service span of belt, less power consumption .The running cost of the equipment can be reduced by 80%.
- Optional range of belt velocity (0.8m/s~5.0m/s). High speed brings higher capacity and higher efficiency.
- The equipment and the belt work stable without the belt deviation and making materials spray out.
- The equipment can work outdoors thanks to its complete sealing and rain proof.
- The equipment is less noise and easy to maintain and easy to started with load.
Technical Parameter
