BFY Series Air Lock Machine for flour mill

Specifications

BFY Series Air Lock
1. Volume: 0.003-0.016 m3
2. Adopt sight glass at the inlet

BFY Series Air Lock



Principle

- The machine has a casting casing and a rotary wheel inside. The materials are fed from the top inlet and discharged from the bottom outlet through the rotoring wheel. The main function of this machine is shut off the aspiration air flow with the atmosphere while separating the materials from the pneumatic line or aspiration air flow.



Features

- Advanced design and excellent fabricating ensure the air tighten sufficiently while the rotoring running smoothly.

- With sight glass at the inlet for an intuitionist inspection.

- At most 7 units machine can be connected together to share a gear motor.

- Made by stainless steel, high sanitation.



Application

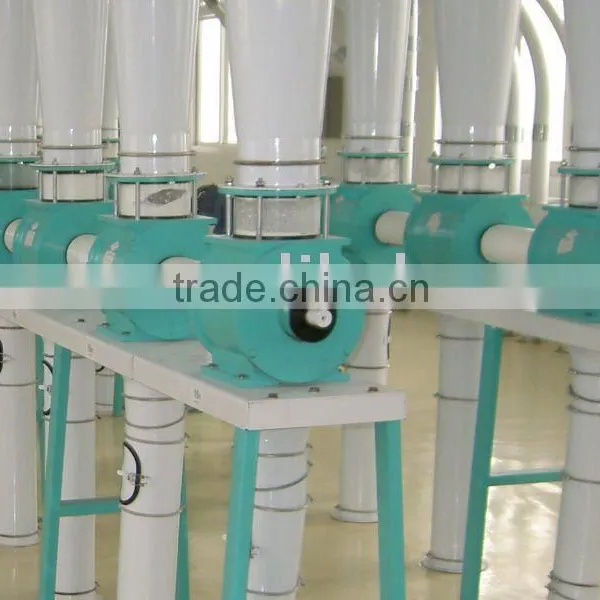

- Normally airlocks are installed underneath the pneumatic cyclones and air jet filters for the discharge of mill stock, filter dust in the food processing industry.

- Can also be used as a ration machine for feeding materials such as grain, break stock, semolina, flour and other materials with similar characteristics from pneumatic conveying lines.



Specification
