Curing Chamber1.China direct supplier
2.Automatic control system
3.For rubber vulcanizing
BRIEF
Rubber autoclave is important vulcanizing equipment in rubber process.It’s widely used for rubber products, cable, textile, chemical, etc. Many kinds of types we can supply according to heating methods. Meanwhile, we’d like to recommend suitable type under customers’ requirements.
TECHNOLOGY DETAILS
1.Cylindrical body and dished end be made of carbon steel.
2. Steam go into autoclave from diffusion tube, pneumatic angle seat valve controls steam in and out automatically.
3. Holes regularly arranged on steaming tube, temperature keep constant in autoclave.
4. Autoclave be heat up automatically after setting procedures,alarm when it finish vulcanizing.
5.Quik-lock type design,a special feature in autoclaves give practically 100% safe doors,these doors have fail-safe measure ensuring door opening only at safe pressure limits.
6. Multiple safety interlocks ensure safety during process. Door can’t be opened if there is pressure in vulcanizer.
7. Size can be designed under customers’ requirement.
MORE REFERENCE
| Model No. | Control Methods |
Inner Diameter (mm) |
Length (mm) |
Heating Methods |
Design Pressure (Mpa) |
Design Temperature (°C) |
| DN1.2-3B.3 | Semi-automatic | 1200 | 3000 | Steam&Air | 0.65 | 161 |
| DN2.5-6B.3 | Semi-automatic | 2500 | 6000 | 0.65 | 161 | |
| DN02-6B.3 | Semi-automatic | 2000 | 6000 | 0.65 |
161
|
APPLIED SCOPE
1.Rubber products: hose,roller,shoes,etc.
2.Textile industry: priting and dyeing
3.Wood treatment for impregnation
4.Mushroom sterilization
IMAGINES
1.STEAM DIFFUSION TUBE
Steam heating autoclave directly

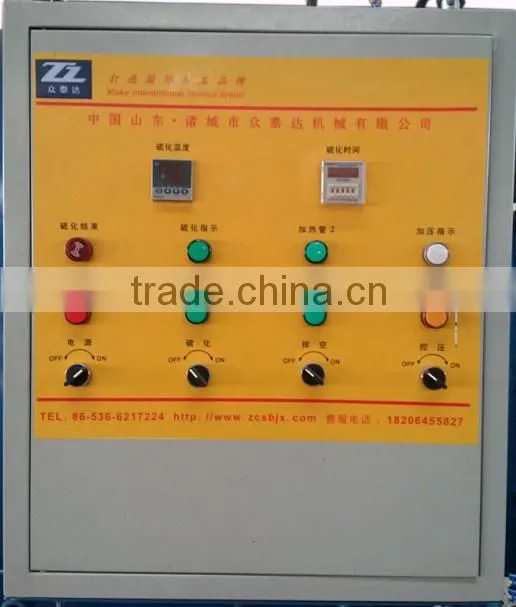

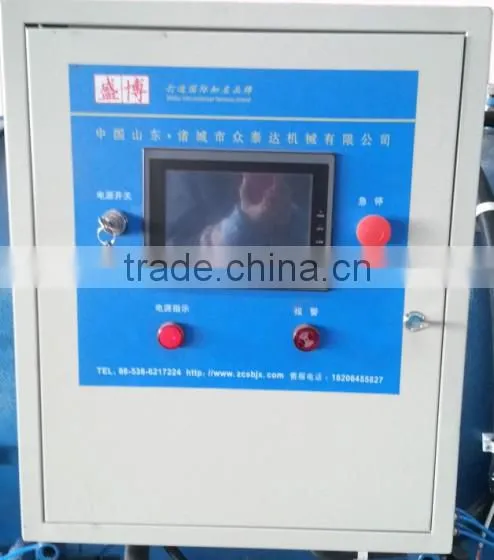

2.SEMI-AUTOMATIC CONTROL BOX 3.FULL-AUTOMATIC CONTROL BOX
Electric control automatical PLC control system,Touch screen view pannel

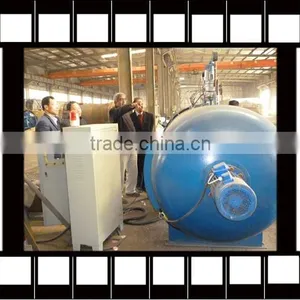

AUTOCLAVE FABRICATION SCENE
1.Carbon steel rolled
2.Connection with flange
3.Spray anti-rust primer paint
4.Finished-product
OTHER HEATING TYPES
1.Electric indirect heating,medium is air,steam or oil
2.Steam heating with electric heater
