Specifications
FSFJ Series Single Sifter1. Sifting Area: 2.5-10.5m2.
2. Capacity (for flour): 1-8t/h.
FSFJ Series Single Sifter (Mono-section Plansifter, single Sifter)
FSFJ Series Single Sifter
1. Sifting Area: 2.5-10.5m2.
2. Capacity (for flour): 1-8t/h.
3. Adjustable counterweight combined with SKF (Sweden) bearings.
4. Sieves material adopts SEFAR mesh.
Principle
- The machine is driven by a motor which installed underside of the main frame and counter-balanced by a counterweight. There are single section type, double sections and 4 sections type in this machine series. According to individual design for different material, the sieve sifts different granular materials to different next passages in flour mill when the whole machine is running.
Features
- Sieve frame size: 630x630mm, 700mmx700mm, 830x830mm, 100mmx100mm, 1200mmx1200mm
- Adjustable counterweight mounted with SKF (Sweden) bearings.
- Sieve frames are made by imported wooden coated inside and outside with plastic melamine lamination, demountable, interchangeable. Sieve frames are equipped stainless steel trays. Each whole section is fixed by means of a metal frame and pressure micrometric screws from the top. It is easy and quick to change sifting scheme if necessary.
- Sieves pack is suspended by its own frame and the frame is installed on floor or suspended by a separated frame which fixed on the ceiling.
- Sieve materials to be SEFAR mesh.
Application
- Widely applied in modern flour mills rice grinding mill.
- Mainly used for flour check sifting, also can be used for grinded wheat and middle material sifting in small mill.
- Different sieving design serves for different sifting passages and different middle materials.
Please feel free to contact us if more information is needed.

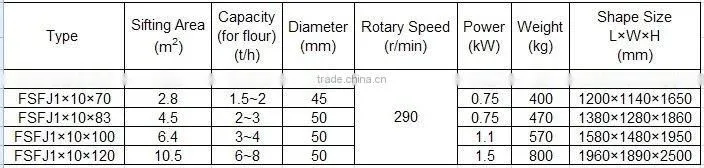

SPEC.
