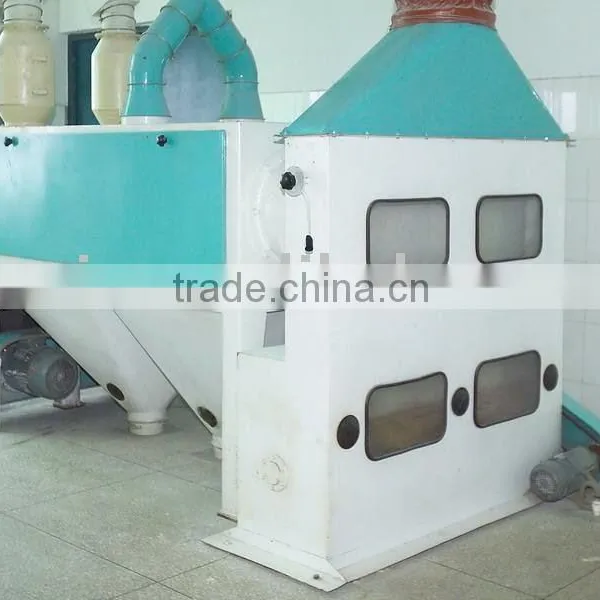

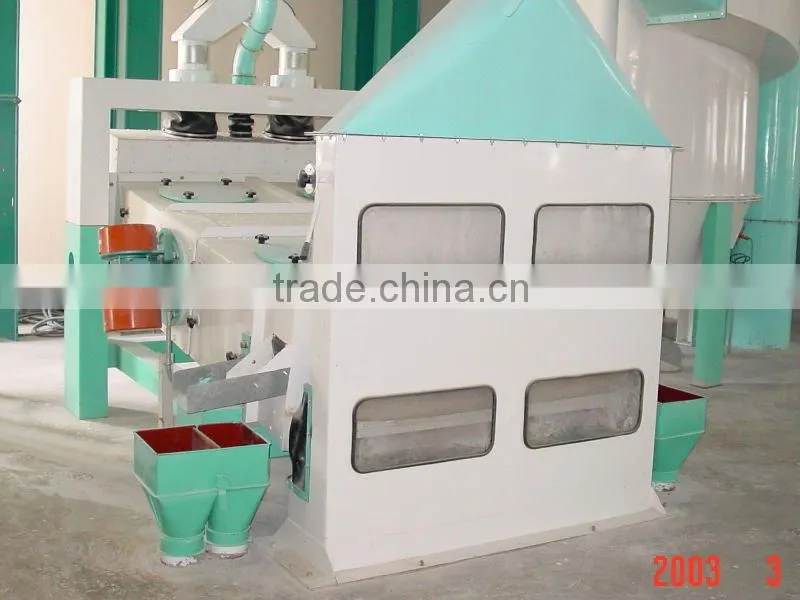

TFDZ Series Aspiration Channel
1. Aspiration Volume: 50-150m³/min.
2. Air Pressure: 50mmH2O.
3. Perfect for removing low density impurities.
4. Low power requirements.
Principle
- Aspiration channel is a machine normally installed at the end of vibro separator and used to remove low-density particles from granular materials. When the grain stream sheet is fed into the inlet of the channel and flowing down, the air suction goes through the grain sheet, the hulls, small straws, shrunken grain, or other slight offal are brought away.
- The volume of the air suction is adjustable according to the grain kinds and the capacity of the flow.
Features
- Excellent separating efficiency
- High capacity
- Wide range of applications
- Reliable separation of low density impurities
- Low power requirements
Application
- It can be combined with vibrato separator and horizontal scourers. Be widely applied in flour mills, silo storages and cleaning sections.
- It is also successfully used singly in flour mills, feed mills, seed cleaning plants, and oilseed cleaning plants.
Please feel free to contact us if more information is needed.

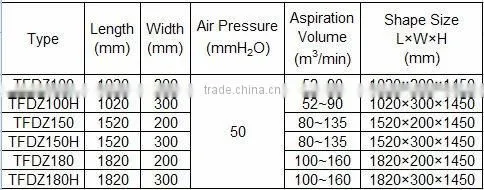

SPEC.
