Ambulance Tricycle 200cc~250cc

Ambulance Tricycle 200cc~250cc thumbnail-1
Ambulance Tricycle 200cc~250cc photo-1
Negotiable MOQ: 30 Units (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Use For:
Passenger
Driving Type:
Motorized
Displacement:
201 - 250cc
Contact Supplier Request Quote Chat Now
Chongqing Diyang Science & Technology Development Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Chongqing
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Use For Passenger
Driving Type Motorized
Displacement 201 - 250cc
Body Type Closed
Certification CE
Brand Name KAMAX
Place of Origin Chongqing, China
Model Number KA250-2
Size 3770*1480*2320 mm

Specifications

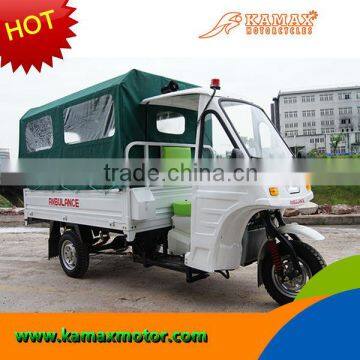

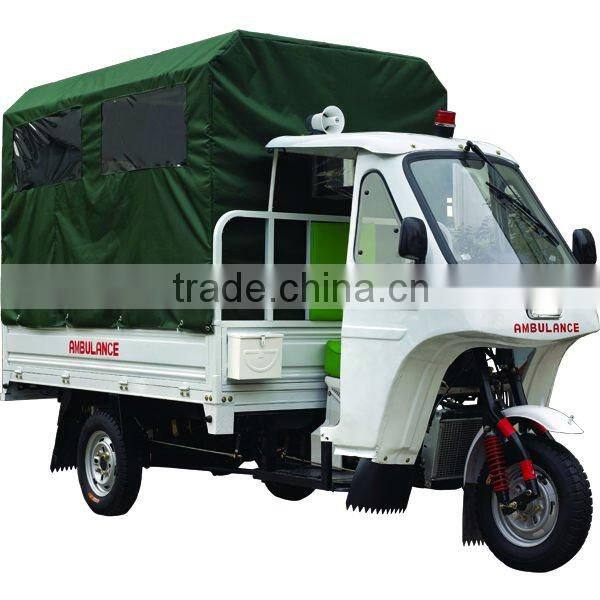

Amublance Tricycle is designed by our Tanzania client, 250cc water-cooled engine shows huge power, is useful for emergercy.

Amublance Tricycle

200cc ambulance tricycle



Ambulance Tricycle 200cc~250ccAmbulance Tricycle 200cc~250ccAmbulance Tricycle 200cc~250ccAmbulance Tricycle 200cc~250ccAmbulance Tricycle 200cc~250ccAmbulance Tricycle 200cc~250cc

Engine specification

engine type     ZHONGSHEN
engine   single cylinder,4-stroke,water-cooled
bore×stroke     63.5×62.2
working volume     196.9cc
Nominal displace     200cc
Compression Ratio     9.0/1
starter system     electric/kick
Ignition Model     C.D.I.
advance angle of ignition BTDC11±2°(≤1500)33.5±2≥4000)
way valve     underneath type camshaft
lubricating system   pressure splash
engine net weight     32kg
engine dimension     354×324×435mm
maximum power(kw/rpm)   10.2/7500
maximum torque(N.m/rpm)   14/6000
fuel consumption     ≤354
Low idling speed     1500
exhaust pollution     CO≤3.8%,HC≤800ppm
starting ability     ≤15s
clutch type     Wet Multi-Plate
derailleur type     Regular meshing gear type
transmission ratio,junior   3.333
Output sprocket teeth   15
The capacity of lubricating oil 1.1L
carburetor     PZ30
spark plug     D8RTC
lubricating oil pump   Internal and external rotor
Magnetor type     Permanent magnet AC
Tricycle specification
Dimension 3700×1400×1850mm
Cargo box size: 2.2*1.4m (checkered bottome board,ordinary side board)
Rear axle: 220mm semi-floating car rear axle
Front shocker: europe-america one-armed shock absorber
Spring plate: 4+2 underneath type steel plate with spring
Wheels: 4.50-12 front wheel 4.50-12 rear wheel
40*80mm keel frame
28A battery
Bigger fuel tank
small footplate
Max.Load capacity: 1 ton
Max.Speed: 60km/h
transmission Type: Shaft

Remarks:we can produce it as per client's request

Ambulance Tricycle 200cc~250cc





 Amublance Tricycle
