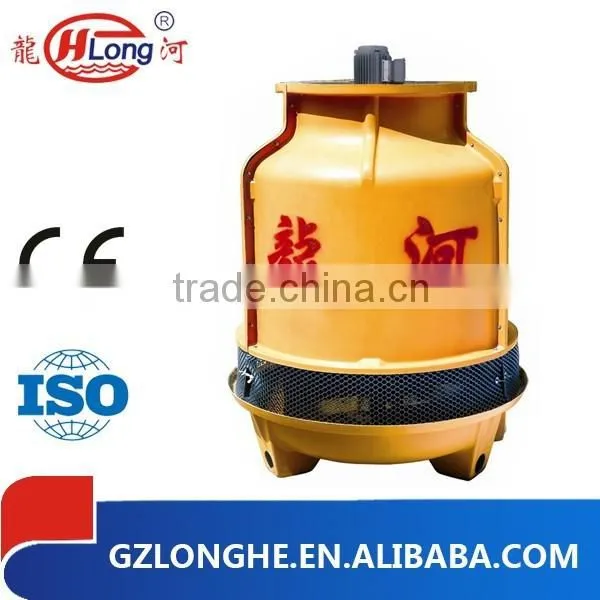

China New Product High Quality Cooling Towers

China New Product High Quality Cooling Towers thumbnail-1
China New Product High Quality Cooling Towers photo-1
US$ 1,800 - 3,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Cooling Type:
Counter Flow
Material:
FRP
Contact Supplier Request Quote Chat Now
Chaozhou Longhe Plastic Machinery Co., Ltd. Guangzhou Branch
Payment & Shipping
Payment Methods:
Port of Shipment:
Guangzhou
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Cooling Type Counter Flow
Material FRP
Place of Origin Guangdong, China
Brand Name Longhe
Model Number LKT-50
Voltage 380v 50Hz 3phase
Power(W) 1500w
Dimension(L*W*H) 1830*1830*1835mm
Weight 190kg
Certification ISO9001,CE
Warranty One year
After-sales Service Provided Engineers available to service machinery overseas

Appliction And Properties:

1.LKT series has wide application and is perfect for air conditioning industry,refrigerating industry,plastic industry,bleaching and dyeying industry,and provides excellent cooling function for other common industries.

2.LKT series is made of V twenty-four heat radiating film,and can work freely when inlet water is fifty-eight ,the curved cross grain of film can effectively prolong the contact time of high temperature water in the cooling tower,combine the axial flow type fan arc angle,it is capable of promoting smooth cooling air exchange,thus powerfully improving the cooling effect.

3.The enclosure of cooling tower is made of quality and tough glass fiber and is capable of resisting natural factors and chemicals,All steel material are processed with BS hot dip galvanizing for dropping the oxidation and making the product solid and durable.

4.Since the water inlet and outlet connector of common cooling tower may crack after ageing within a shot period,which may cause leak and water immersion.Longhe cooling tower has optimized for this weakness,and the water inlet and outlet connector is made of mixed resin and aluminum alloy and is soild and durable.

Technical Parameters:



Model



LKT



8



10



20



30



40



50













Data



Nominal Flow

m³/h



6.23



7.81



15.62



23.4



31.21



39.24



Air Volume



CMM



70



85



160



230



280



330



Motor



KW



0.18



0.18



0.56



1.50



1.50



1.50



(16) Noise Level



DBA



45.5



47.0



50.0



54.0



56.5



57.5



Dry Weight



KG



42



46



67



116



130



190



Wet Weight



KG



180



190



300



530



550



975









Piping



Water Inlet



WI



40



40



50



80



80



80



Water Outlet



WO



40



40



50



80



80



80



Overflow



OF



25



25



25



25



25



25



Drain



DR



25



25



25



25



25



25



Flow Valve



FV



15



15



15



15



15



15

















Height



Tower



TH



1380



1530



1590



1705



1775



1835



Casing



CH



875



1025



1070



1110



1180



1230



Air Inlet



AH



170



170



170



245



245



245



Water Basin



WH



335



335



350



350



350



360



Water Inlet



IH



270



270



280



175



175



230



Water Outlet



OH



180



180



190



115



115



125



Foundation



FH



250



250



250



300



300



300









DIA



Exhaust



ED



525



600



730



730



890



890



Water Basin



WD



945



945



1195



1650



1650



1830



Foundation



PD



560



560



740



1120



1120



1380



Anchor Bolt



BD



9x3



9x3



9x3



9x4



9x4



9x4

 Packaging: plywood case

 Parameter of design: in temp-T1=37℃, out temp-T2=32℃, wet temp-WBT=27℃

 Difference in temperature of water: Ts=5℃, air pressure-P=99400Pa

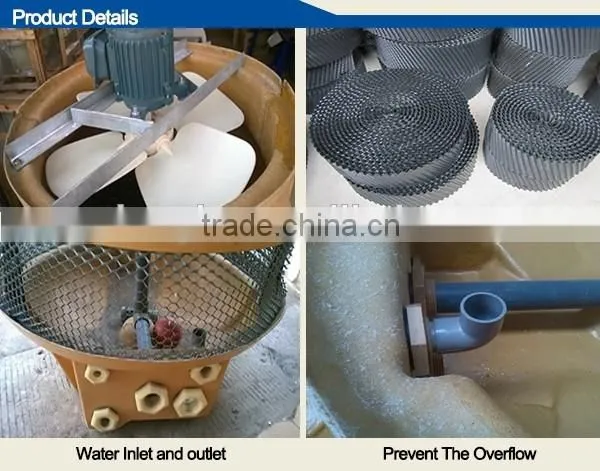

Picture of detail:

China new product high quality cooling towersChina new product high quality cooling towers

Contact Me

         Jennifer Zheng      Sales

                 QQ:       2934007628

             Ph:    +86-18925182149

            Skype:     gzlonghe

About our service

A. cargo track service during transporting. and feedback service after cargo is loaded on board.

B. flexible terms of payment by T/T and L/C.

C. big discount for repeat customers.

Why choose us?

1. More than 27 years experiences in the industry of plastic machine.

2. Competitive price and high quality.

3. All the inquiries will be replied within 24 hours.
