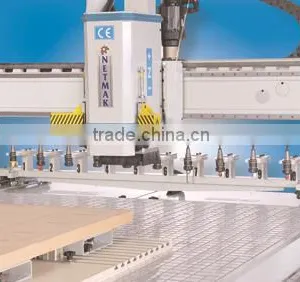

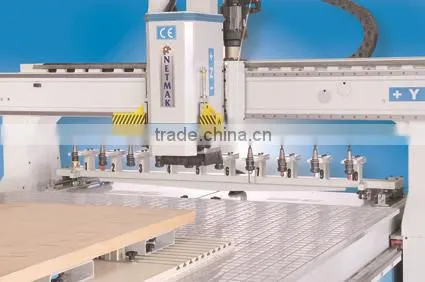

Help CenterCNC Router and Door Machine
Related Products
CNC router for engraving, cutting and sizing of MDF, wood, chipboard, plexiglass and non ferrous metals
ð The working dimensions : 2400x1100x250 mm (X,Y,Z)
ð HSD Spindle motor is 10.5 HP 8 kw 9000/24000 rpm + 9 kw inverter
ð Positioning speed: X:40 Y:40 Z:15 m/1'
ð For drilling door hinge and joint sides, additional left and right horizontal motors (optional)

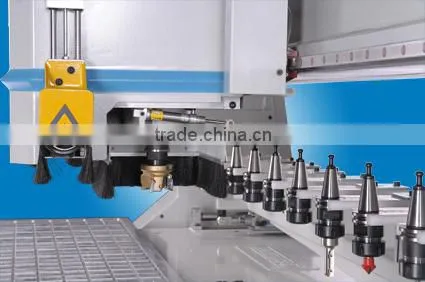

ð 8 items ISO 30 tool handle, 8 items clips and automatic tool changing system
ð Aluminium flat table with vacuum system
ð DELTA TAU control system: It is an industrial control system that is produced special for CNC controls. It works with USB port with a flash disk. It works with standarts ISO (g code) codes.
ð It can be work with all CAD-CAM programs that produces ISO codes (g codes).
ð It has 17 inc monitor.
ð Very sensitive and high quality working in 2D and 3D
ð Servo motors’ and drivers’ brand name is Yaskawa (Omron).
ð Monobloc body, totally steel construction.
ð Central oiling system from 2 sides
ð AlphaCam program with license ( 2D) (optional for 3D)
