Nickel Wire

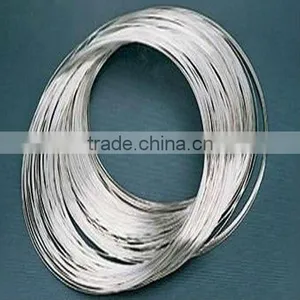

Nickel Wire thumbnail-1
Nickel Wire photo-1
US$ 20 - 50 MOQ: 1 Kilogram
Key Specifications
Get Latest Price
Place of Origin:
Shaanxi, China
Type:
Nickel Wire
Application:
Heating
Contact Supplier Request Quote Chat Now
Baoji Haixin Titanium & Nickel Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai Tianjin
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Shaanxi, China
Type Nickel Wire
Application Heating
Grade pure nickel
Ni (Min) 99.6
Powder Or Not Not Powder
Model Number HXTN
Brand Name HXTNW01

Specifications

N6 99.6%nickel wire
1.pure:>99.6%
2.widely used in many industries;
3.good quality,after-sale service;
4.small order acc

nickle chrome  heating wire



Code: 0Cr25AL50Cr21AL6Nb0Cr27AL7Mo2Cr20Ni80



Material: Spring wire



Specifications: 300W-4000W features: I produced the Fe-Cr-Al heating wire has: the high temperature (0Cr27Al7Mo2 and HRE in the atmosphere, the maximum temperature up to 1400 ), long life, allowing the surface load, good oxidation resistance, the proportion of small In nickel-chromium alloy, high resistivity, and good resistance to sulfur features, are widely used in electric furnace, furnace heating elements and other products produced and resistance components.



Open-type spring wire:

Power W Dia.mm Mandreldiameter (mm) Cold resistance Ω Weight (g) Cable length mm Spirallength (mm)
300 0.30 3.0 153.7 3.84 7654 198
400 0.35 3.0 115.2 5.33 7854 232
500 0.40 3.5 92.2 7.28 8159 242
600 0.45 3.5 76.8 9.70 8600 283
800 0.55 4.0 57.6 16.23 9632 360
1000 0.60 4.0 46.1 18.42 9178 370
1200 0.70 4.0 38.4 28.44 10410 455
1500 0.80 4.0 30.7 38.87 10890 663
2000 0.90 4.0 23 46.57 10310 547
2500 1.10 4.5 18.4 83.32 12350 755
3000 1.20 4.5 15.4 98.12 12220 770
4000 1.50 5.0 11.5 179.33 14300 962



Technical parameters of spring wire Table:



Performance material 0Cr25A15 0Cr21A16Nb 0Cr27A17Mo2
composition Cr 23.0-26.0 21.023.0 26.527.8
AL 4.56.5 5.07.0 6.07.0
Fe Rest Rest Rest
Re Rest Rest Rest
    Nb:0.5 Nb:0.5
ntinuous service Temp. of element 1250 1350 1400
Melting Point 1500 1510 1520
g/cm3 7.10 7.10 7.10
Resistivity μΩ.m,20 oC 1.42±0.07 1.45±0.07 1.53±0.07
Tensile strength Mpa 630780 650800 680830
Elongation at rupture ≥12 ≥12 ≥10
Repeat Bending Frequency ≥5 ≥5 ≥5
Fast life h/ oC ≥80/1300 ≥80/1350 ≥80/1350
Specific heat J/g.oC 0.494 0.494 0.494
Thermal conductivity KJ/m.h oC 46.1 46.1 45.2
Coefficient of lines expansion a×10-6/oC (20~1000oC) 16.0 16.0 16.0
Hardness HB 200260 200260 200260
Micrographic struction Ferrite Ferrite Ferrite
Magnetic properties Magnetic Magnetic Magnetic



Technical parameters of spring wire Table:



Dia. Cross Sectional area (mm2) Surface per meter cm2/m 0Cr25A15 0Cr21A16Nb 0Cr27A17Mo2
Weight per meter kg/m Resistance per meter Ω/m,20oC Weight per meter kg/m Resistance per meter Weight per meter Ω/m,20oC Resistance per meter Ω/m,20oC
0.10 0.007854 3.142 0.00005576 180.8 0.00005576 184.6 0.00005576 194.8
0.12 0.01131 3.770 0.00008030 125.6 0.00008030 128.2 0.00008030 135.3
0.15 0.01767 4.712 0.0001255 80.36 0.0001255 82.05 0.0001255 80.6
0.17 0.02270 5.341 0.0001612 62.56 0.0001612 63.88 0.0001612 67.4
0.19 0.02835 5.969 0.0002013 50.08 0.0002013 51.14 0.0002013 54.0
0.21 0.03464 6.597 0.0002459 41.00 0.0002459 41.86 0.0002459 44.2
0.25 0.04909 7.854 0.0003485 28.93 0.0003485 29.54 0.0003485 31.2
