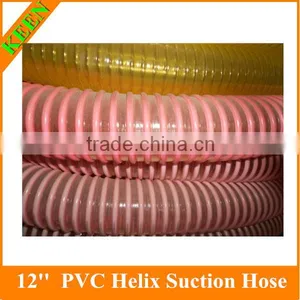

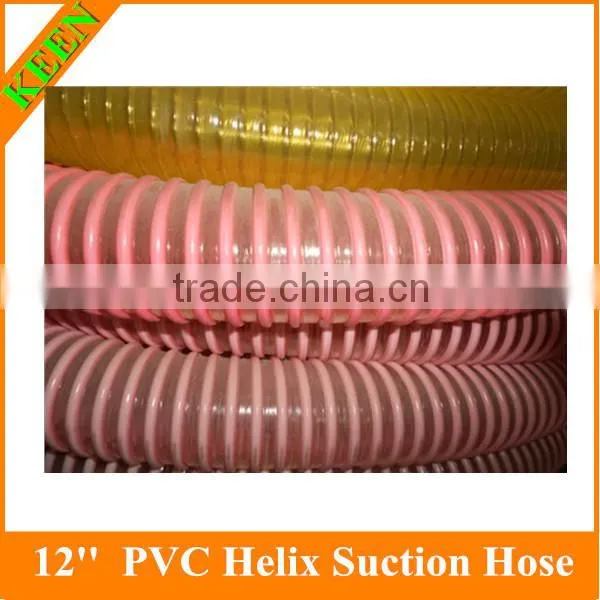

Help CenterTPU/ PVC Water Pump Hose - Water Pump Discharge Hose
Related Products
-
High Quality PVC Screw Suction HoseUS$ 2.281 - 9.789MOQ: 500 Meters -
Wholesale PVC Ventilation Hose With Plastic Ribs Inside PipeUS$ 2.285 - 9.767MOQ: 500 Meters
-
Flat Surface 12" PVC Water Pump HoseUS$ 2.285 - 9.767MOQ: 500 Meters
-
Petrol Tanker Hose Diesel Tank Hose, Oil Truck Tank HoseUS$ 0.268 - 5.769MOQ: 500 Meters
-
12mm Thick Gravel Suction HoseUS$ 2.287 - 9.778MOQ: 500 Meters
Specifications
1. No poison, no smell, no pollution2. Corrosion- Rsist
3. Beautiful outlook, soft,light
4. small bending radius
Alias:
PVC suction hoses, spiral reinforced PVC suction hoses, water suction hoses with helix, PVC suction
and discharge hoses, PVC grit hoses.
Structure:
1. Wall: High quality plasticized PVC
2. Reinforcement: Rigid PVC helix reinforced anti-choc spiral.
Temperature Range: -10 C to +65 C (14 F to 150 F)
Feature:
1. Good transparency and easy monitoring liquid flow.
2. Small bending radius and great ability of minus pressure resistance.
3. Characteristics: Strong, abrasion resistant, corrosion resistant and weather resistant. Its of stability and
flexibility under performance.
1. Very ideally for conveying water, oil and power, abrasive mineral sands, gravel, cement, chips,
shavings, construction, agricultural, and industrial service applications.
2. Widely used for pumping and delivery fluids such as water ,oil and powder in agriculture, factory
and construction , can fit to PVC pipe by PVC glue.
3. Especally ideal for ventilation and air conditioning system,industrial vacuum cleaner,and
granulate conveying systems.
As suction and transport hose suitable for below substance.
1) Gaseous medias such as vapors and smoke.
2) Liquid medias.
3) Small granultes such as dusts,powders and ect.
4) Agriculture, fishing and construction.
4. Ideal subsititute for rubber hose, cement hose and metal hose in many areas.
1. Size: From 3/4'' to 20'', 19mm to 500mm
2. Length: 20m/roll,30m/roll, 50m/roll
3 . diameter thickness as per the customers'requirement
Inside Diameter |
Outside Diameter(mm) |
Wall(mm) |
Working Pressure (MPa) |
Burst Pressure (MPa) |
Length Max.(m) |
Weight(kg/m) |
Packing Measurement D*H(mm) |
|
inch |
mm |
|||||||
1/4” |
6 |
11 |
2.5 |
0.7 |
2.1 |
100 |
0.115 |
470*130 |
5/16” |
8 |
14 |
3 |
0.7 |
2.1 |
100 |
0.156 |
500*130 |
3/8” |
9 |
15 |
3 |
0.7 |
2.1 |
100 |
0.17 |
500*150 |
1/2” |
12 |
18 |
3 |
0.6 |
1.8 |
100 |
0.22 |
550*170 |
5/8” |
15 |
22 |
3.5 |
0.6 |
1.8 |
100 |
0.305 |
650*200 |
3/4” |
19 |
26 |
3.5 |
0.6 |
1.8 |
50 |
0.38 |
650*150 |
1” |
25 |
33 |
4 |
0.6 |
1.8 |
50 |
0.547 |
700*200 |
1-1/4” |
32 |
41 |
4.5 |
0.5 |
1.5 |
40 |
0.85 |
800*170 |
1-1/2” |
38 |
48 |
5 |
0.5 |
1.5 |
40 |
1.2 |
850*210 |
2” |
50 |
62 |
6 |
0.5 |
1.5 |
40 |
1.6 |
980*250 |
2-1/2” |
64 |
80 |
8.5 |
0.4 |
1.2 |
30 |
3 |
920*240 |
3” |
75 |
92 |
8.5 |
0.4 |
1.2 |
30 |
3.9 |
1020*280 |
3-1/2” |
89 |
107 |
9 |
0.4 |
1.2 |
30 |
4.5 |
1100*330 |
4” |
102 |
120 |
9 |
0.3 |
0.8 |
30 |
5.2 |
1100*470 |
5” |
127 |
141 |
7 |
0.2 |
0.6 |
20 |
5 |
1140*430 |
6” |
152 |
166 |
7 |
0.2 |
0.6 |
20 |
6 |
1700*430 |
mateiral
Products
Packing
We ae the professional supplier of the PVC Screw suction hose.
Our quality is the top.
