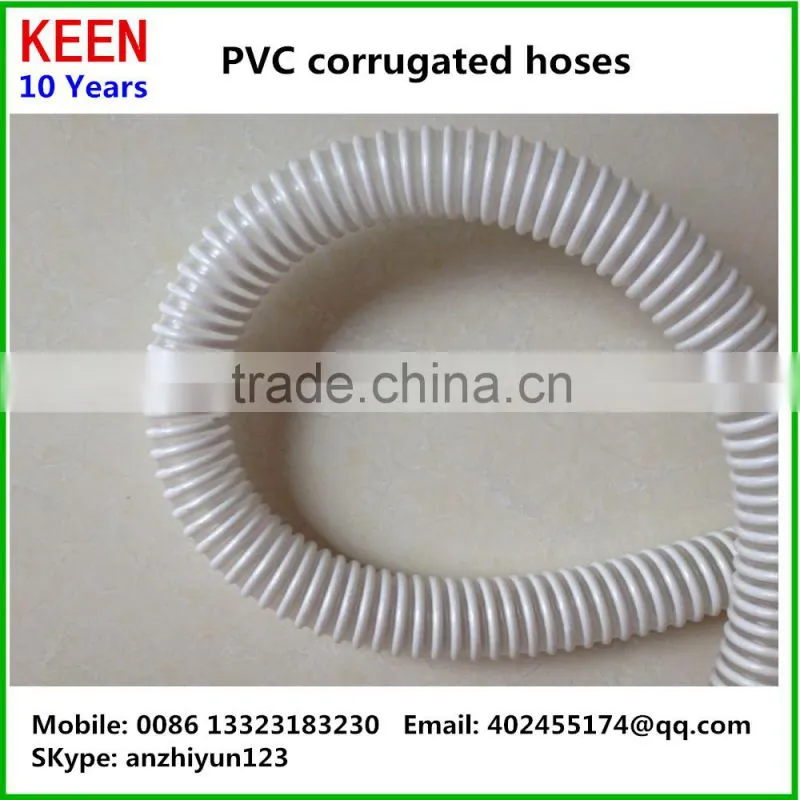

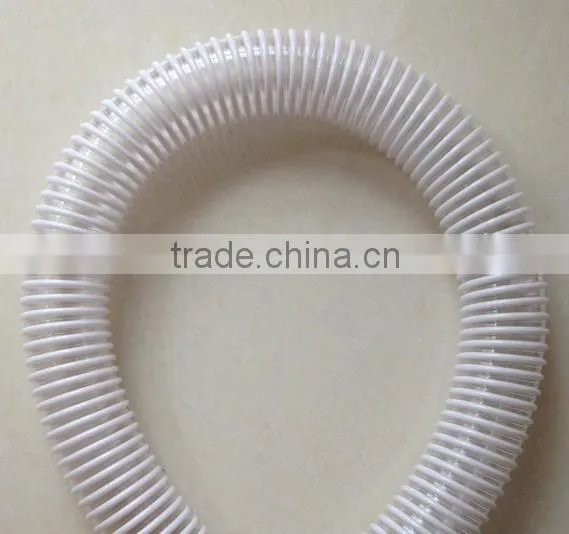

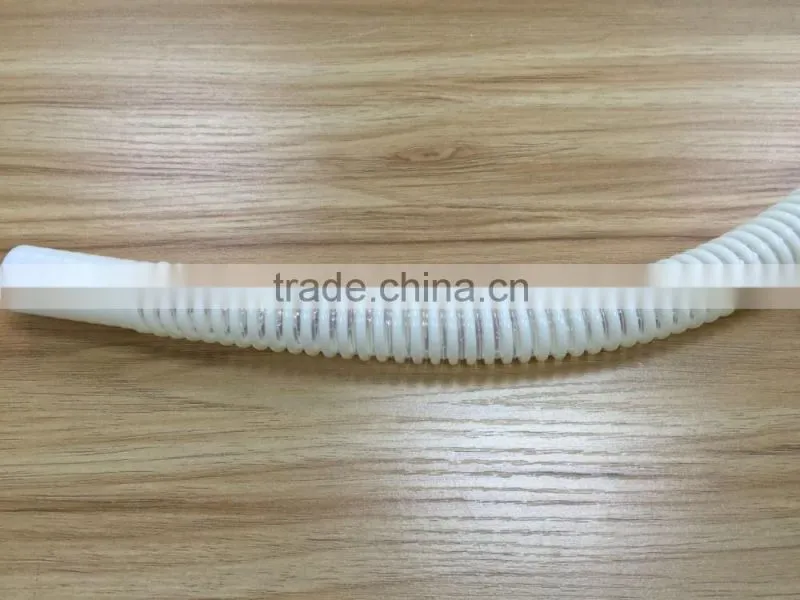

Help CenterPVC Clear Pvc Suction Hose /PVC Garden Tube Flexible High Pressure Water Hose/ PVC Expandable Garden Hose
Related Products
-
High Quality Plastic Heavy Duct Helix Flexible Spiral Reinforced Water Pvc Suction Hose PipeUS$ 2.287 - 9.779MOQ: 500 Meters -
PVC Fiber Reinforced Plastic Braid Pipe for Water ConveyingUS$ 0.1762 - 4.3617MOQ: 500 Meters
-
PVC Plastic Spiral Reinforced Suction Water Garden Pipe HoseUS$ 2.287 - 9.779MOQ: 500 Meters
-
PVC Spiral Digging Gold Pipe Gray (factory Direct)US$ 2.287 - 9.779MOQ: 500 Meters
-
New Raw Material of the Single Wall Porous Tube (factory Direct Sales)US$ 0.65 - 9.79MOQ: 500 Meters
Alias:
PVC suction hoses, spiral reinforced PVC suction hoses, water suction hoses with helix, PVC suction
and discharge hoses, PVC grit hoses.

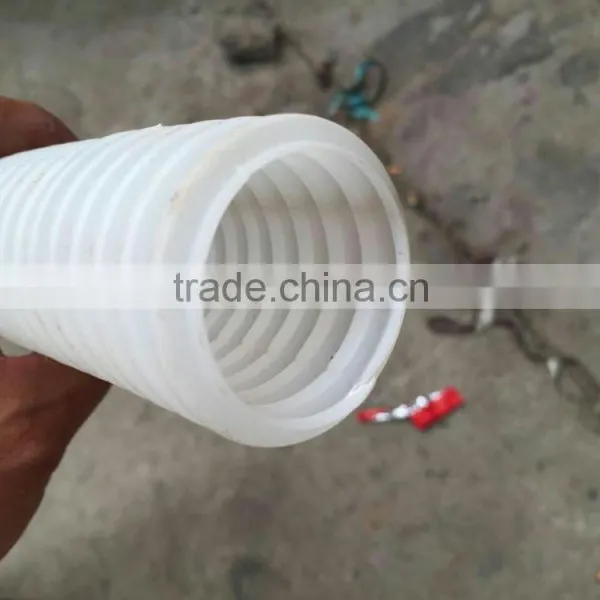

Structure:
1. Wall: High quality plasticized PVC
2. Reinforcement: Rigid PVC helix reinforced anti-choc spiral.
Temperature Range: -10 C to +65 C (14 F to 150 F)
Feature:

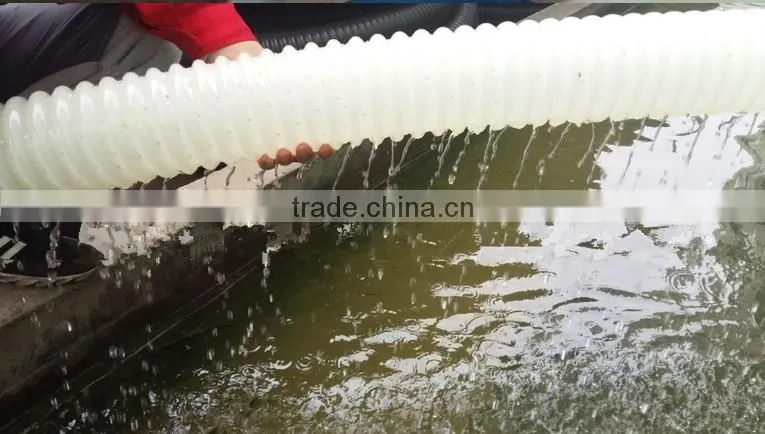

1. Good transparency and easy monitoring liquid flow.
2. Small bending radius and great ability of minus pressure resistance.
3. Characteristics: Strong, abrasion resistant, corrosion resistant and weather resistant. Its of stability and
flexibility under performance.
1. Very ideally for conveying water, oil and power, abrasive mineral sands, gravel, cement, chips,
shavings, construction, agricultural, and industrial service applications.
2. Widely used for pumping and delivery fluids such as water ,oil and powder in agriculture, factory
and construction , can fit to PVC pipe by PVC glue.
3. Especally ideal for ventilation and air conditioning system,industrial vacuum cleaner,and
granulate conveying systems.
As suction and transport hose suitable for below substance.
1) Gaseous medias such as vapors and smoke.
2) Liquid medias.
3) Small granultes such as dusts,powders and ect.
4) Agriculture, fishing and construction.
4. Ideal subsititute for rubber hose, cement hose and metal hose in many areas.
1. Size: From 3/4'' to 20'', 19mm to 500mm
2. Length: 20m/roll,30m/roll, 50m/roll
3 . diameter thickness as per the customers'requirement
Inside Diameter |
Outside Diameter(mm) |
Wall(mm) |
Working Pressure (MPa) |
Burst Pressure (MPa) |
Length Max.(m) |
Weight(kg/m) |
Packing Measurement D*H(mm) |
|
inch |
mm |
|||||||
1/4” |
6 |
11 |
2.5 |
0.7 |
2.1 |
100 |
0.115 |
470*130 |
5/16” |
8 |
14 |
3 |
0.7 |
2.1 |
100 |
0.156 |
500*130 |
3/8” |
9 |
15 |
3 |
0.7 |
2.1 |
100 |
0.17 |
500*150 |
1/2” |
12 |
18 |
3 |
0.6 |
1.8 |
100 |
0.22 |
550*170 |
5/8” |
15 |
22 |
3.5 |
0.6 |
1.8 |
100 |
0.305 |
650*200 |
3/4” |
19 |
26 |
3.5 |
0.6 |
1.8 |
50 |
0.38 |
650*150 |
1” |
25 |
33 |
4 |
0.6 |
1.8 |
50 |
0.547 |
700*200 |
1-1/4” |
32 |
41 |
4.5 |
0.5 |
1.5 |
40 |
0.85 |
800*170 |
1-1/2” |
38 |
48 |
5 |
0.5 |
1.5 |
40 |
1.2 |
850*210 |
2” |
50 |
62 |
6 |
0.5 |
1.5 |
40 |
1.6 |
980*250 |
2-1/2” |
64 |
80 |
8.5 |
0.4 |
1.2 |
30 |
3 |
920*240 |
3” |
75 |
92 |
8.5 |
0.4 |
1.2 |
30 |
3.9 |
1020*280 |
3-1/2” |
89 |
107 |
9 |
0.4 |
1.2 |
30 |
4.5 |
1100*330 |
4” |
102 |
120 |
9 |
0.3 |
0.8 |
30 |
5.2 |
1100*470 |
5” |
127 |
141 |
7 |
0.2 |
0.6 |
20 |
5 |
1140*430 |
6” |
152 |
166 |
7 |
0.2 |
0.6 |
20 |
6 |
1700*430 |
mateiral
Products
Packing

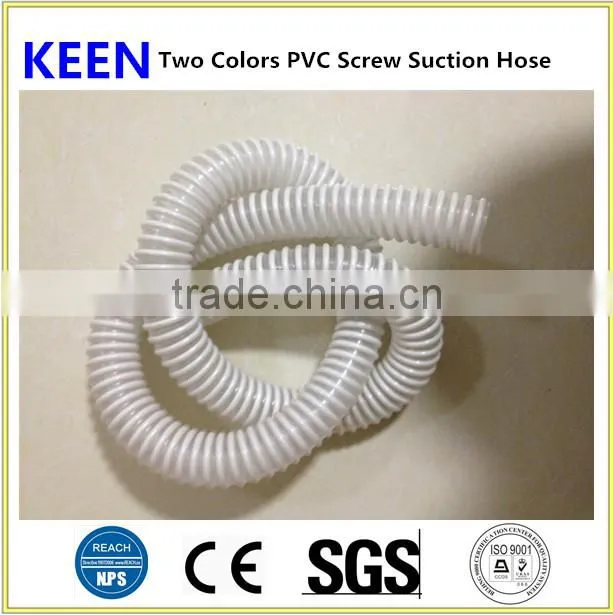

We ae the professional supplier of the PVC Screw suction hose.
Our quality is the top.
