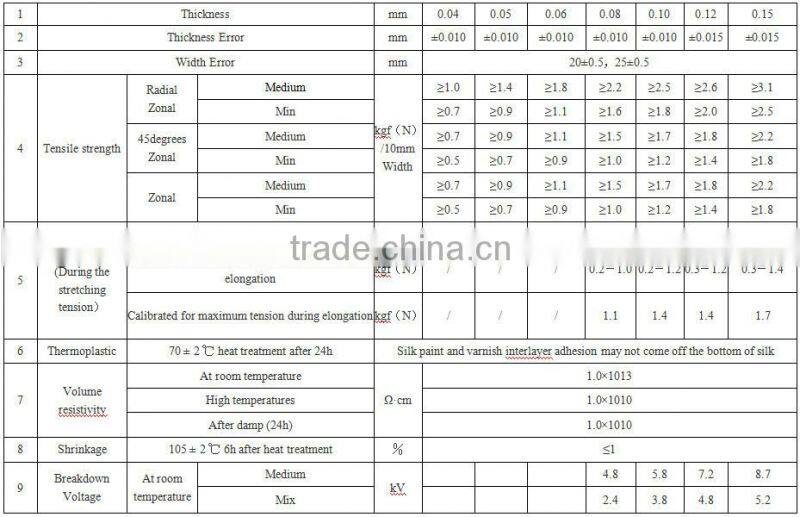

Specifications
1.Thickness :0.08, 0.10, 0.12, 0.15mm2. Thermal grade is class A.
3.Width: 15, 20, 25, 50, 100, 1250mm
The product is dried by electrical chiffon soaked with oil paint by a high degree of polymerization is made to the product by the diagonal direction and have a higher rate of high stretch and softness, with a high dielectric properties, for in general motors, electrical conductive properties as a thin layer of insulation requirements, including 2212 more oil, can be used to thin oil-filled transformers and electrical insulation or wrap coils liner insulation, heat-resistant grade of 105, is a class A insulation Materials
1. Thickness: .0.08, 0.10, 0.12, 0.15, mm
2. Width: 15, 20, 25, 50, 100, 1250 mm
3. Standard Weight: 12kgs/roll
4. Thermal grade is class A.
5. Colour:yellow
6. Standard:JB/T8147-1999
7. Shelf lift: one year
8. Packing detail:packing with film and carton

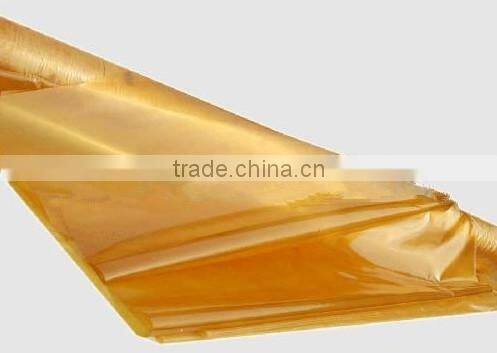

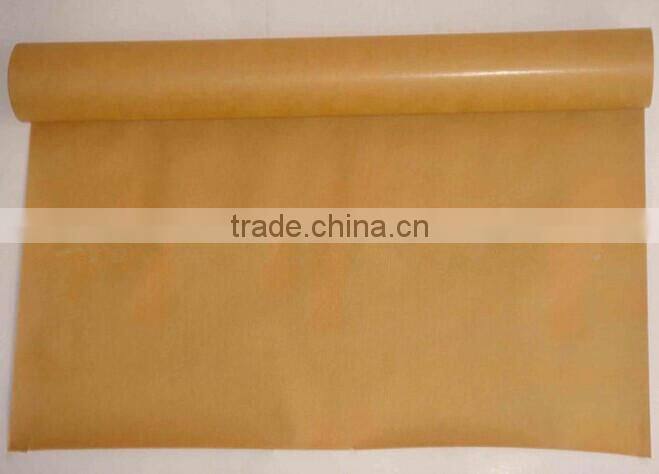

2210 Oil Varnish Silk is silk cloth impregnated with oily varnish,in the process of dipping in the oily paint and drying.
It has good electrical and mechanical performances, it will be used at 105 centigrade or less for a long period.
It can be used for the binding and insulating materials for the electric motor, appliance,etc.
Our products:
432 alkyd fiberglass cloth
2210 oil silk silk
2310 oil polyester fiber silk
2440 polyester fiber cloth
2450 silicone varnished
2830b grade with no latitude
2840f grade with no latitude
2850 silicone with no latitude
