LQ121S1DC71 12.1 LCD DISPLAY LCD PANEL

LQ121S1DC71 12.1 LCD DISPLAY LCD PANEL photo-1

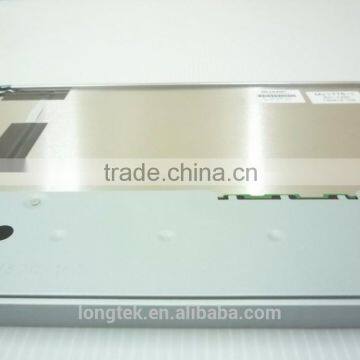

LQ121S1DC71 12.1 LCD DISPLAY LCD PANEL photo-2

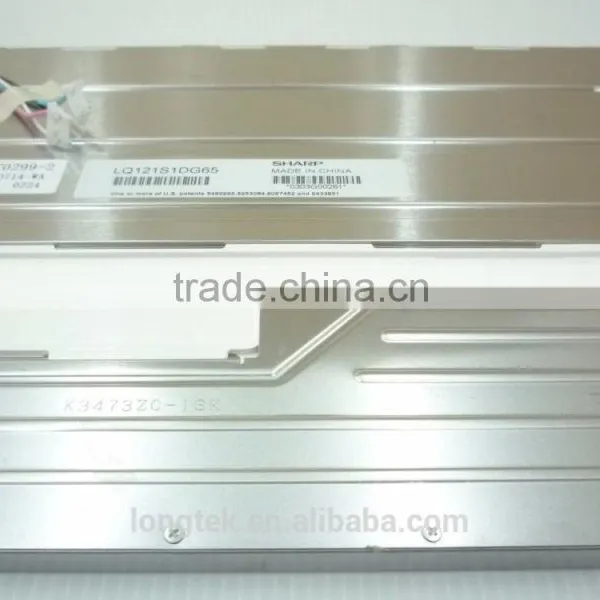

LQ121S1DC71 12.1 LCD DISPLAY LCD PANEL photo-3

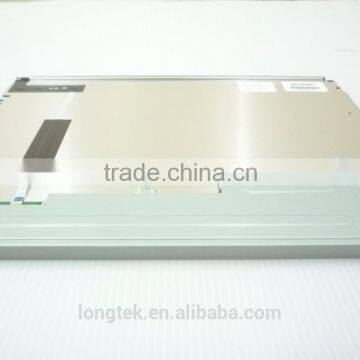

LQ121S1DC71 12.1 LCD DISPLAY LCD PANEL photo-4

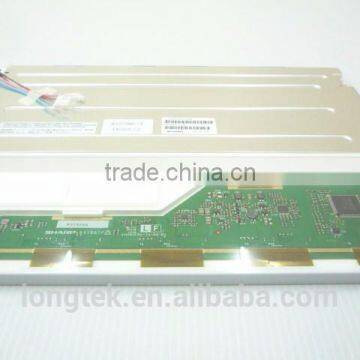

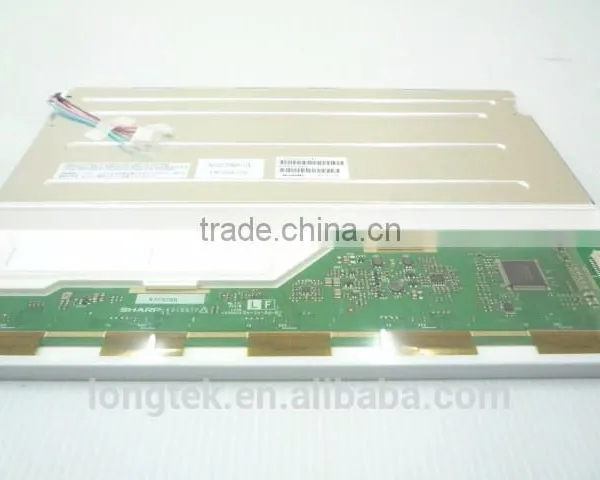

LQ121S1DC71 12.1 LCD DISPLAY LCD PANEL photo-5

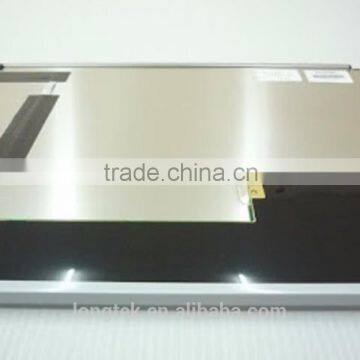

LQ121S1DC71 12.1 LCD DISPLAY LCD PANEL photo-6
US$ 1 - 999 MOQ: 1 Piece
Key Specifications
Get Latest Price
Place of Origin:
Japan
Brand Name:
SHARP
Model Number:
LQ121S1DC71
Payment & Shipping
Payment Methods:
Port of Shipment:
KEELUNG
Delivery Detail:
Delivery time depends on order quantity.
Place of Origin Japan
Brand Name SHARP
Model Number LQ121S1DC71
Type TFT



Active Area (W x H):
246 × 184.5
Backlight System:
LED
Brightness:
800 nits
Contrast Ratio:
800:1
Description:

True Industrial rated 4:3 module with 50,000-hr backlight, very wide viewing angles, very high brightness and contrast.

Display Mode:
Normally White
Family:
LQ121S1DC71
Interface:
Digital
Operating Temperature Range:
-15 to +75°C
Outline Dimensions (W x H x D):
265.0 × 205.0 × 9.5
Pixel Format:
800 x 600
Response Time:
30 ms
RoHS:
Yes
Status:
Production
Storage Temperature Range:
-30 to +75°C
Type:
SVGA
Viewing Angle - 12 o clock:
60°
Viewing Angle - 6 o clock:
80°
Viewing Angle - side to side:
160°
