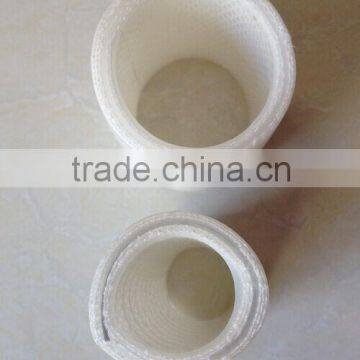

Help CenterPT Vulcanization Medical Cure Silicone Hose 1.5 Inch
Related Products
-
PT Vulcanization Medical Cure Silicone Hose, FDA Grade Silicone Hsoe 1 InchUS$ 17.5 - 130MOQ: 1000 Meters -
PT Vulcanization Silicone Braided Cure Hose 15mmUS$ 17.5 - 130MOQ: 1000 Meters
-
PT Vulcanization Medical Grade Coffee Maker Hose, Silicone Medical Hose 1 InchUS$ 17.5 - 130MOQ: 1000 Meters
-
100% Medical Grade Slicone Braided Hose, Coffee Maker HoseUS$ 17.5 - 130MOQ: 1000 Meters
-
Medical Grade Silicone Coffee Maker Hose, Silicone Braided Hose, 4 Layers Silicone HoseUS$ 17.5 - 130MOQ: 1000 Meters
Construction and Size
Construction: Type PF is manufactured from High purity platinum cured Silicone with
polyester fiber reinforcement.
Temp. Range: -60°C and 200°C.
Colour: Translucent (Coloured covers available)
Applications: For transporting liquids at low pressure where a closed bending radius
is not required. It is not recommended for vacuum. Suitable for CIP and
SIP cleaning.
Certification: FDA, USP, BFR, USDA, ISO 10993
Length: Standard maximum length is 50 meters, for a longer length, please contact us.
PRESSURE DECREASE BY 1% FOR EVERY 1°C ABOVE 100°C.
Item |
I.D. |
O.D. |
Thickness |
Bending Radius |
W.P. |
B.P. |
Vacuum Degree |
|
in. |
mm |
mm |
mm |
mm |
bar |
bar |
bar |
|
SQ006 |
1/4" |
6.4 |
16.4 |
5 |
29 |
13 |
39 |
0.91 |
SQ008 |
5/16" |
7.9 |
17.9 |
5 |
31 |
12 |
36 |
0.91 |
SQ010 |
3/8" |
9.5 |
19.5 |
5 |
34 |
11 |
33 |
0.91 |
SQ013 |
1/2" |
12.7 |
22.7 |
5 |
39 |
10 |
30 |
0.91 |
SQ016 |
5/8" |
15.9 |
25.9 |
5 |
45 |
9 |
27 |
0.91 |
SQ019 |
3/4" |
19 |
29 |
5 |
54 |
8.5 |
25.5 |
0.91 |
SQ022 |
7/8" |
22 |
32 |
5 |
60 |
8 |
24 |
0.91 |
SQ025 |
1" |
25.4 |
35.4 |
5 |
68 |
7.5 |
22.5 |
0.91 |
SQ032 |
1-1/4" |
32 |
42 |
5 |
94 |
6.5 |
19.5 |
0.91 |
SQ038 |
1-1/2" |
38 |
48 |
5 |
112 |
5.5 |
16.5 |
0.91 |
SQ045 |
1-3/4" |
45 |
57 |
6 |
130 |
5 |
15 |
0.91 |
SQ050 |
2" |
50.8 |
60.8 |
5 |
144 |
4.5 |
13.5 |
0.91 |
SQ063 |
2-1/2" |
63.5 |
73.5 |
5 |
181 |
4 |
12 |
0.91 |
SQ076 |
3" |
76.2 |
86.2 |
5 |
232 |
3 |
9 |
0.91 |
SQ089 |
3-1/2" |
89 |
99 |
5 |
285 |
2.5 |
7.5 |
0.91 |
SQ102 |
4" |
102 |
112 |
5 |
367 |
2 |
6 |
0.91 |
Pharmaceutical hoses, hose medicines, liquid delivery hose, medical pharmaceutical tubes Class1000 certified clean room produced, so that the hose core pharmaceuticals, suitable for pharmaceutical, bio-medical, cosmetic, and food processing. Polyester and 316 stainless steel wire reinforcing layer to enhance resistance to pressure and vacuum capabilities. Spiral reinforced silicone tube through a lot of physical, chemical and biological testing, to USP Class VI, FDA CFR 177.2600, ISO 10993, NSF 51, European Pharmacopoeia 3.1.9 and 3A standards.
Application Pharmaceutical companies dedicated sanitary suction hoses, pipes medicine in our certified clean room Class1000 produced, suitable for pharmaceutical, bio-medical, cosmetic, and food processing. This kernel slipped onto a mandrel, made of polyester mesh fabric and additional silicone wrap. Pharmaceutical companies dedicated sanitary suction hose, medicine delivery hose pipe cured into a homogeneous enhancement of its compression capability, making it ideal for drainage applications. Food-grade silicone tube through a lot of physical, chemical and biological testing, to USP Class VI, FDA CFR 177.2600, ISO 10993, NSF 51, European Pharmacopoeia 3.1.9 and standards. 3A. Pharmaceutical companies dedicated sanitary suction hose, medicine pipes with non-toxic, odorless, does not decompose in solution media any odor and flavor characteristics, particularly suitable for clean room use, and silicone tube with a tolerance of ozone, radiation, wind erosion capabilities.
Product Specification:
Special sanitary suction hose plant, pharmaceutical delivery typical of tube:
The planting of glass fiber reinforced, pressure better, higher temperature;
Inner and outer walls smooth particle adsorption and microbial growth inhibition, to ensure hygiene key processing sectors;
Can be repeated autoclaving and steam sterilization (CIP, SIP steam sterilization, disinfection reign application)
Translucent color allows visual monitoring of the transmission medium;
Lightweight construction and easy to obtain an excellent elasticity smaller bend radius without obstruction to fluid transfer;
Optional high-temperature silicone materials and glass fiber reinforced used to achieve continuous operating temperature of 260 ℃;
Pharmaceutical companies dedicated sanitary suction hose pipes at both ends of the pharmaceutical choose to withhold a variety of sanitary 316 stainless steel fittings, including fast cards, DIN and SMS union, RJT, IDF, pull skill union and flanges.
Contact us
Delivery time:
Sample Time: 5 days
Delivery Time: 10-20 days after deposit, or according to your quantity
MOQ: 200 meters
Payment terms: 30% TT in advance, 70% TT balance before shipment.
OEM& ODM:
· Customized Brand and logo;
· Change of Material and Size;
