Home > Chemicals > Rubber & Rubber Products > Rubber Tube, Pipe & Hose > High Pressure Stainless Steel Braided Rubber Hose=SAE10 R2 AT
High Pressure Stainless Steel Braided Rubber Hose=SAE10 R2 AT
US$ 0.916 - 12.326
MOQ: 500 Meters
Key Specifications
Get Latest Price
Place of Origin:
Hebei, China
Brand Name:
keen
Model Number:
SAE100 R2 AT-EN853 2SN
Payment & Shipping
Payment Methods:
Port of Shipment:
Tianjin
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Rotary Drilling Hose Vibrator HoseUS$ 3.677 - 20.265MOQ: 500 Meters -
Manufacture Hydraulic Stainless Steel Spiral TubeUS$ 2.013 - 9.214MOQ: 500 Meters
-
No Smell ! Hydraulic Stainless Steel Spiral Hose EN856 4SHUS$ 0.663 - 12.987MOQ: 500 Meters
-
Hydraulic Rubber Hose, EN856 4SHUS$ 1.33 - 12.68MOQ: 300 Meters
-
High Tmperature Hydraulic Rubber Hose, SAE 100 R1, DIN 1SN, 1/2''US$ 0.875 - 10.323MOQ: 500 Meters
Place of Origin
Hebei, China
Brand Name
keen
Model Number
SAE100 R2 AT-EN853 2SN
Specifications
1. Good quality: Hoses No Smell2. Standard size
3. Competitive price
4. Free samples
5. Good response from customers

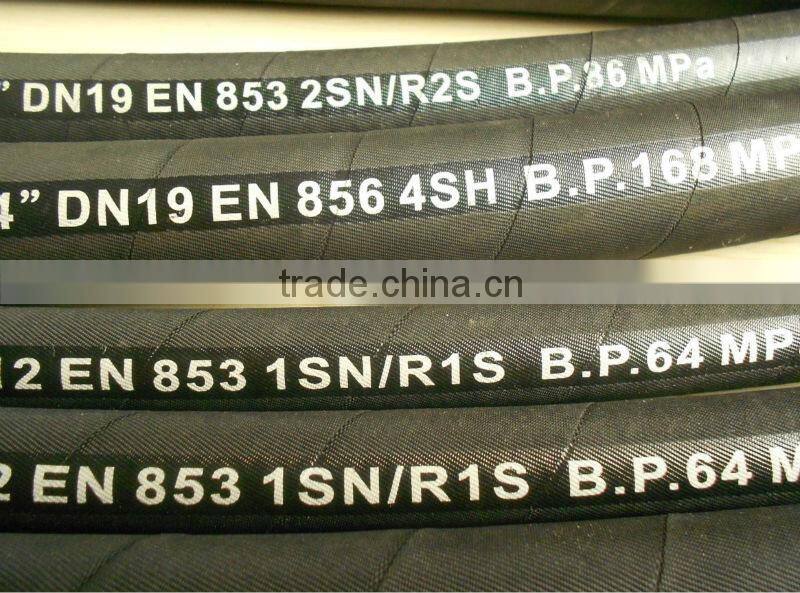

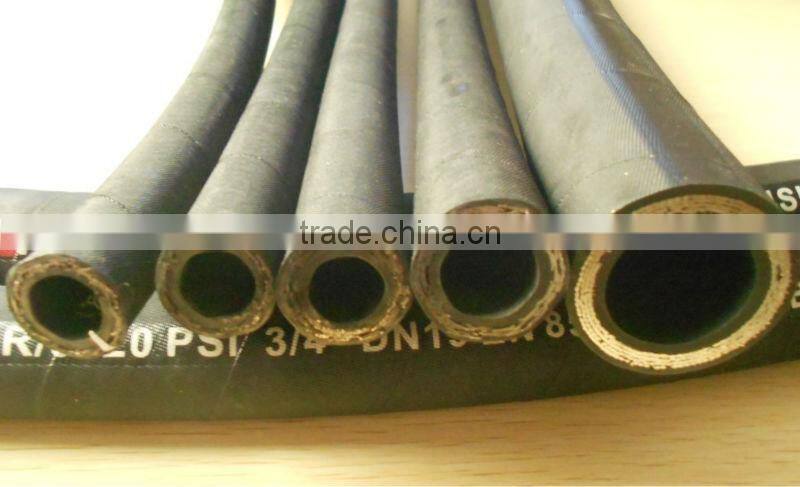

Wire Braid Hydraulic Hose: SAE 100 R2AT/DIN EN 853 2SN STANDARD
Tube : Oil resistant synthetic rubber
Reinforcement : two high tensile steel wire layers (2 w)
Cover Compound : Abrasion and weather resistant synthetic rubber
Temperature range : -40 °C to +100 °C
| DN | Hose I.D | Wire O.D | Hose O.D | Working Pressure | Burst Pressure | Minimum Bend Radius | Weight | Length | |||
| inch | mm | mm | mm | MPa | psi | MPa | psi | mm | kg/m | metres | |
| 5 | 3/16 | 4.8 | 11.1 | 13.4 | 41.4 | 6000 | 165 | 23720 | 89 | 0.32 | 50/100 |
| 6 | 1/4 | 6.4 | 12.7 | 15.0 | 40.0 | 5800 | 160 | 22840 | 102 | 0.36 | 50/100 |
| 8 | 5/16 | 7.9 | 14.3 | 16.6 | 36.0 | 5250 | 140 | 20000 | 114 | 0.45 | 50/100 |
| 10 | 3/8 | 9.5 | 16.7 | 19.0 | 33.1 | 4800 | 132 | 18840 | 127 | 0.54 | 50/100 |
| 13 | 1/2 | 12.7 | 19.8 | 22.2 | 27.6 | 4000 | 110 | 15720 | 178 | 0.68 | 50/100 |
| 16 | 5/8 | 15.9 | 23 | 25.4 | 25.0 | 3630 | 100 | 14280 | 203 | 0.8 | 50/100 |
| 19 | 3/4 | 19.0 | 27 | 29.3 | 21.5 | 3120 | 85 | 12280 | 241 | 0.94 | 50/100 |
| 25 | 1 | 25.4 | 34.9 | 38.0 | 16.5 | 2400 | 65 | 9420 | 305 | 1.35 | 50 |
| 32 | 1 1/4 | 31.8 | 44.5 | 48.3 | 12.5 | 1820 | 50 | 7140 | 419 | 2.15 | 20/40 |
| 38 | 1 1/2 | 38.1 | 50.8 | 54.6 | 9.0 | 1310 | 36 | 5140 | 508 | 2.65 | 20/40 |
| 51 | 2 | 50.8 | 63.5 | 67.3 | 8.0 | 1160 | 32 | 4560 | 635 | 3.42 | 20/40 |
