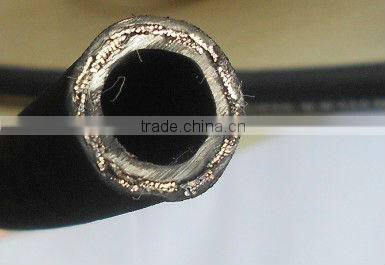

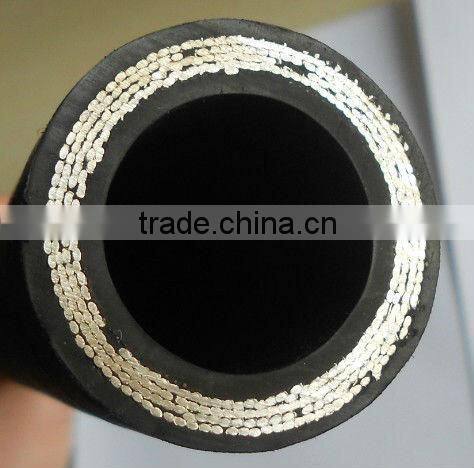

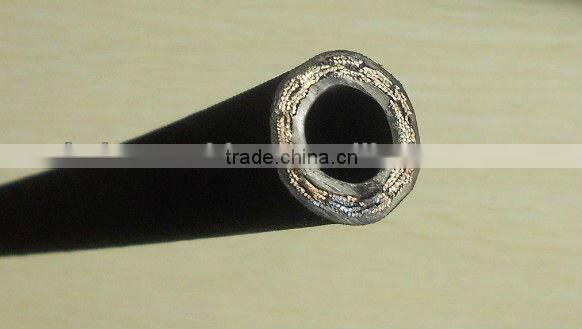

Stainless Steel Hydraulic Hoses 3 Layers of Steel Braided
US$ 0.677 - 15.962
MOQ: 500 Meters
Key Specifications
Get Latest Price
Place of Origin:
Hebei, China
Brand Name:
Keen
Model Number:
ID 4 inch
Payment & Shipping
Payment Methods:
Port of Shipment:
Tianjin
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Cotton Braid Hydraulic Hose: SAE 100 R6 HoseUS$ 1.024 - 7.176MOQ: 300 Meters -
Thermoplastic Nylon Hydraulic Hose-r8 atUS$ 1.03 - 11.87MOQ: 300 Meters
-
Good Quallity! Hydraulic Stainless Steel Spiral Hose SAE100 R12 ATUS$ 0.937 - 15.852MOQ: 500 Meters
-
No Smell Hydraulic Rubber Hose, SAE100 R9 ATUS$ 0.706 - 10.093MOQ: 500 Meters
-
Hydrualic Nylon Hoses-r8 HoseUS$ 1.33 - 11.87MOQ: 300 Meters
Place of Origin
Hebei, China
Brand Name
Keen
Model Number
ID 4 inch
Specifications
1. Good quality: Hoses No smell2. Price is competitive
3. Size is standard
4. Free samples
5. Good response from custom
Tube : Oil resistant synthetic rubber
Reinforcement : Three high tensile steel wire braid
Cover : Abrasion and weather resistant synthetic rubber
Temperature range : -40 °C to +100 °C
| DN | Hose I.D | Wire O.D | Hose O.D | Working Pressure |
Burst Pressure | Minimum Bend Radius |
Weight | Length | |
| inch | mm | mm | mm | MPa | MPa | mm | kg/m | metres | |
| 6 | 1/4 | 6.3±0.5 | 14.5±0.5 | 18.6 | 65.0 | 162.0 | 100 | 0.63 | 20 to 100 |
| 8 | 5/16 | 8.0±0.5 | 17.0±0.5 | 21.0 | 50.0 | 125.0 | 115 | 0.75 | 20 to 100 |
| 10 | 3/8 | 10±0.5 | 19.3±0.5 | 23.3 | 45.0 | 112.0 | 130 | 0.91 | 20 to 100 |
| 13 | 1/2 | 13±0.5 | 22.3±0.5 | 26.5 | 43.0 | 100.0 | 180 | 1.10 | 20 to 100 |
| 16 | 5/8 | 16±0.5 | 25.5±0.5 | 29.8 | 35.0 | 87.0 | 205 | 1.27 | 20 to 100 |
| 19 | 3/4 | 19±0.5 | 28.7±0.5 | 33.2 | 28.0 | 70.0 | 240 | 1.39 | 20 to 100 |
| 22 | 7/8 | 22±0.5 | 32.0±0.6 | 36.5 | 25.0 | 62.5 | 280 | 1.73 | 20 to 100 |
| 25 | 1 | 25±0.5 | 35.5±0.6 | 39.5 | 25.0 | 60.0 | 300 | 1.89 | 20 to 50 |
| 32 | 1 1/4 | 32±0.5 | 43.1±0.8 | 47.0 | 19.0 | 47.5 | 420 | 2.20 | 18 to 40 |
| 38 | 1 1/2 | 38±0.5 | 49.3±0.8 | 53.3 | 15.0 | 37.5 | 500 | 2.47 | 18 to 40 |
| 45 | 1 3/4 | 45±0.5 | 60.5±0.8 | 60.5 | 10.0 | 25.0 | 500 | 2.70 | 18 to 40 |
| 51 | 2 | 51±0.5 | 67.0±0.8 | 67.0 | 8.0 | 24.0 | 630 | 3.30 | 18 to 40 |
| 64 | 2 1/2 | 64±0.5 | 81.0±0.8 | 81.0 | 7.0 | 21.0 | 700 | 4.20 | 18 to 40 |
