China Supplier SAE100R2AT Standard High Pressure Hydraulic Air Hose Pipe

China Supplier SAE100R2AT Standard High Pressure Hydraulic Air Hose Pipe thumbnail-1
China Supplier SAE100R2AT Standard High Pressure Hydraulic Air Hose Pipe thumbnail-2
China Supplier SAE100R2AT Standard High Pressure Hydraulic Air Hose Pipe photo-1

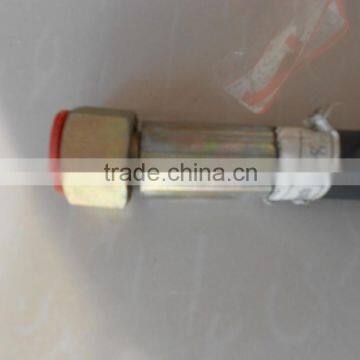

China Supplier SAE100R2AT Standard High Pressure Hydraulic Air Hose Pipe photo-2
US$ 0.79 - 17.12 MOQ: 500 Meters
Key Specifications
Get Latest Price
Place of Origin:
Hebei, China
Brand Name:
Keen
Model Number:
SAE100 R1, R2, 4SP,4SH
Contact Supplier Request Quote Chat Now
Hengshui Keen Rubber And Plastic Products Trade Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Tianjin
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Hebei, China
Brand Name Keen
Model Number SAE100 R1, R2, 4SP,4SH

Specifications

1. Good quality: Hoses No smell
2. Competitive price
3. Free samples
4. Good response from customers
5. Standard Size



Wire Braid Hydraulic Hose: SAE 100 R1AT/DIN EN 853 1SN STANDARD

Tube : Oil resistant synthetic rubber
Reinforcement : one high tensile steel wire braid
Cover : Abrasion and weather resistant synthetic rubber
Temperature range : -40 °C to +100 °C

DN Hose I.D Wire O.D Hose O.D Working Pressure Burst Pressure Minimum Bend Radius Weight Length
inch mm mm mm MPa psi MPa psi mm kg/m metres
5 3/16 4.8 9.5 11.8 25.0 3630 100.0 14280 89 0.19 50/100
6 1/4 6.4 11.1 13.4 22.5 3270 90.0 12840 102 0.21 50/100
8 5/16 7.9 12.7 15.0 21.5 3120 85.0 12280 114 0.24 50/100
10 3/8 9.5 15.1 17.4 18.0 2615 72.0 10280 127 0.33 50/100
13 1/2 12.7 18.3 20.6 16.0 2320 64.0 9180 178 0.41 50/100
16 5/8 15.9 21.4 23.7 13.0 1890 52.0 7420 203 0.45 50/100
19 3/4 19.0 25.4 27.7 10.5 1530 42.0 6000 241 0.58 50/100
25 1 25.4 33.3 35.6 8.8 1280 35.0 5020 305 0.88 50
32 1 1/4 31.8 40.5 43.5 6.3 920 25.0 3600 419 1.23 20/40
38 1 1/2 38.1 46.8 50.6 5.0 730 20.0 2860 508 1.51 20/40
51 2 50.8 60.2 64.0 4.0 580 16.0 2280 635 1.97

20/40





Wire Braid Hydraulic Hose: SAE 100 R2AT/DIN EN 853 2SN STANDARD
Tube : Oil resistant synthetic rubber
Reinforcement : two high tensile steel wire layers (2 w)
Cover Compound : Abrasion and weather resistant synthetic rubber
Temperature range : -40 °C to +100 °C

DN Hose I.D Wire O.D Hose O.D Working Pressure Burst Pressure Minimum Bend Radius Weight Length
inch mm mm mm MPa psi MPa psi mm kg/m metres
5 3/16 4.8 11.1 13.4 41.4 6000 165 23720 89 0.32 50/100
6 1/4 6.4 12.7 15.0 40.0 5800 160 22840 102 0.36 50/100
8 5/16 7.9 14.3 16.6 36.0 5250 140 20000 114 0.45 50/100
10 3/8 9.5 16.7 19.0 33.1 4800 132 18840 127 0.54 50/100
13 1/2 12.7 19.8 22.2 27.6 4000 110 15720 178 0.68 50/100
16 5/8 15.9 23 25.4 25.0 3630 100 14280 203 0.8 50/100
19 3/4 19.0 27 29.3 21.5 3120 85 12280 241 0.94 50/100
25 1 25.4 34.9 38.0 16.5 2400 65 9420 305 1.35 50
32 1 1/4 31.8 44.5 48.3 12.5 1820 50 7140 419 2.15 20/40
38 1 1/2 38.1 50.8 54.6 9.0 1310 36 5140 508 2.65 20/40
51 2 50.8 63.5 67.3 8.0 1160 32 4560 635 3.42 20/40



 Wire Spiral Hydraulic Hose: DIN EN856 4SH STANDARD

Tube : Oil resistant synthetic rubber
Reinforcement : four high tensile steel wire spiral layers ( 4 W/S )
Cover : abrasion and weather resistant synthetic rubber
Temperature range : -40 °C to +100 °C

DN Hose I.D Wire O.D Hose O.D Working Pressure Burst Pressure Minimum Bend Radius Weight Length
inch mm mm mm MPa psi MPa psi mm kg/m metres
19 3/4 19.0 28.4 32.0 42.0 6000 168.0 24000 280 1.61 20 to 40
25 1 25.4 35.2 38.6 38.0 5500 152.0 22000 340 2.00 20 to 40
32 1 1/4 31.8 41.9 45.8 32.5 4700 130.0 18800 460 2.64 20 to 40
38 1 1/2 38.1 48.8 53.3 29.0 4200 116.0 16800 560 3.36 20 to 40
51 2 50.8 63.2 68.1 25.0 3600 100.0 14400 700 4.98 20 to 40

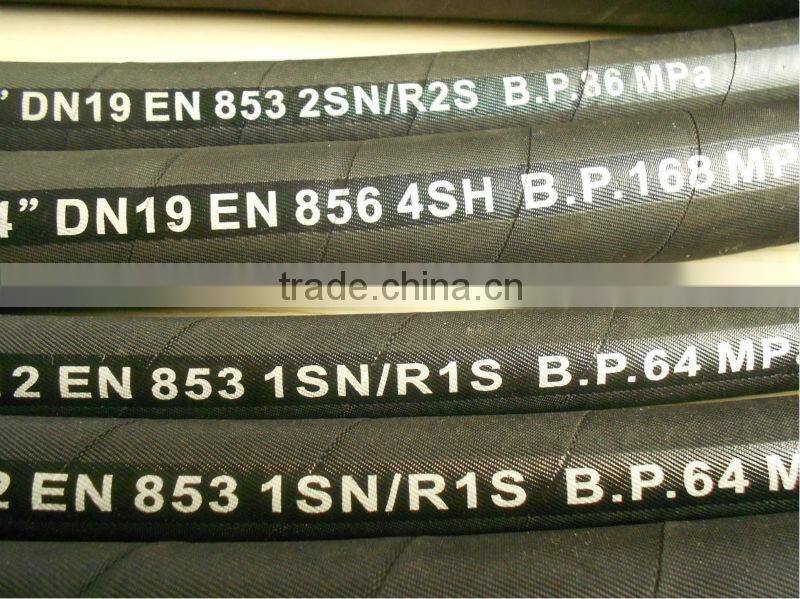

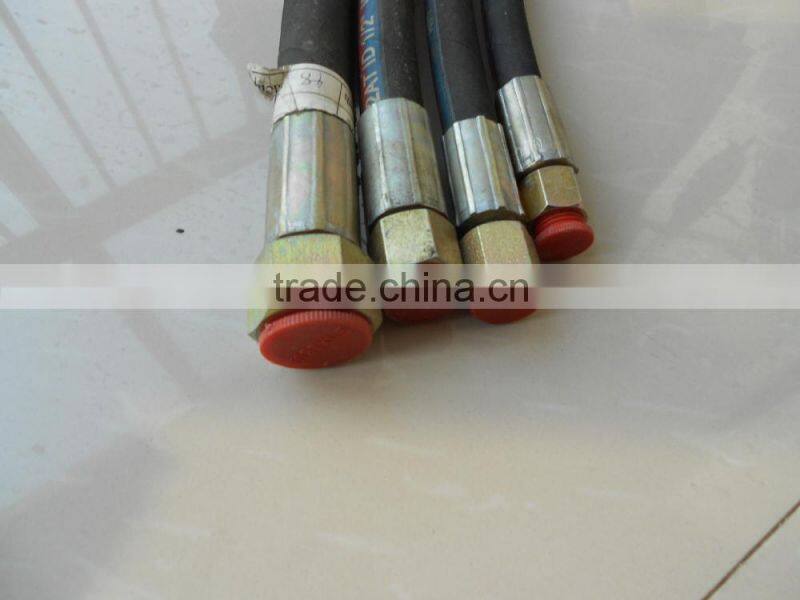

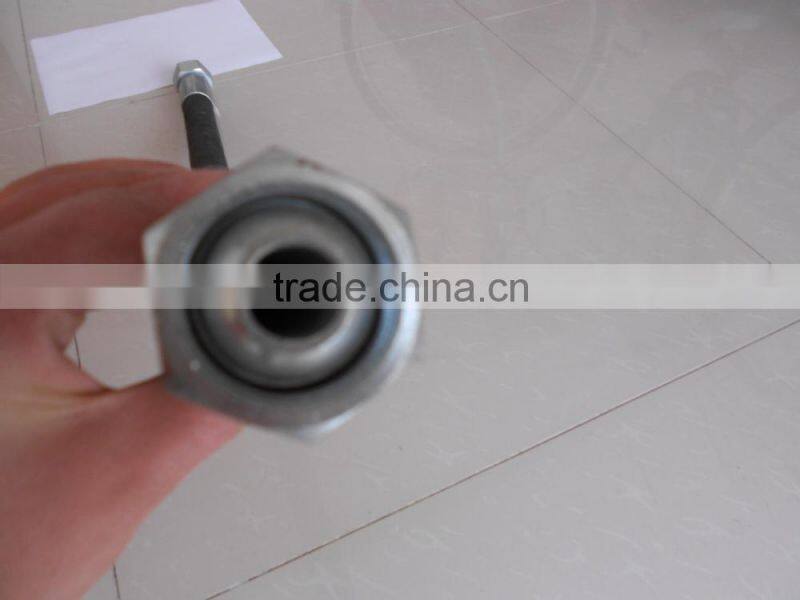

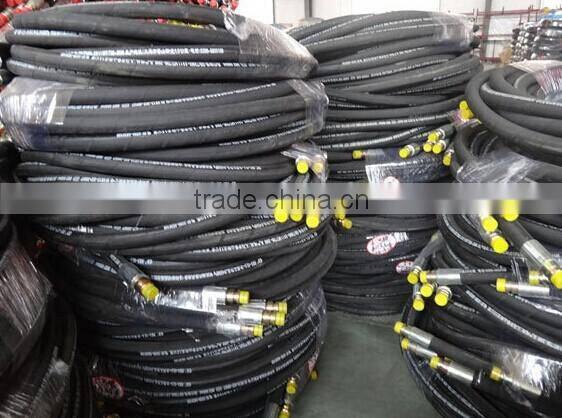

China supplier SAE100R2AT standard high pressure hydraulic air hose pipeChina supplier SAE100R2AT standard high pressure hydraulic air hose pipeChina supplier SAE100R2AT standard high pressure hydraulic air hose pipe



China supplier SAE100R2AT standard high pressure hydraulic air hose pipe

China supplier SAE100R2AT standard high pressure hydraulic air hose pipe
