Satellite Signal tv Antenna Amplifier(MA-6031UVF)
Specifications
Satellite signal antenna amplifier(MA-6031UVF)1. 3 in (FM+UHF+VHF) 1 out
2. High output level
3. Low noise figure

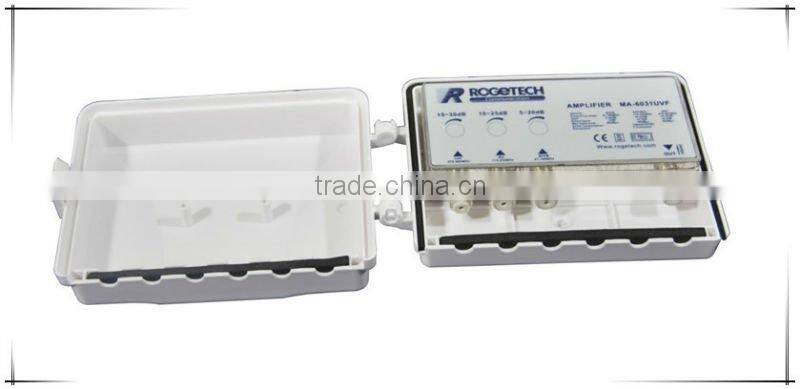

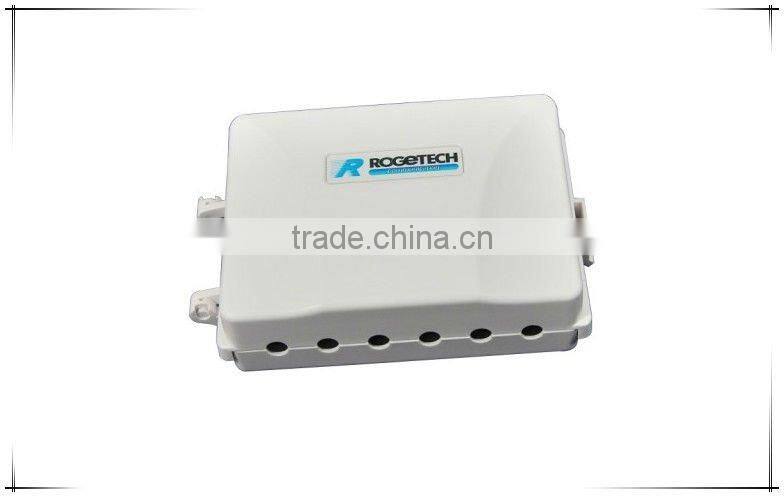

Satellite signal tv antenna amplifier(MA-6031UVF)
Model: MA-6031UVF
Technical parameters:
Inputs | FM | VHF | UHF |
Frequency range | 47-108MHz | 174-230MHz | 470-862MHz |
Gain | 5-20dB | 10-25dB | 15-30dB |
Noise figure | <3dB | <3.5dB | <4.5dB |
Max. Input Level | 85dBuV | 85dBuV | 95dBuV |
Power consumption | 100mA/24V DC | ||
Connector | F Connector | ||

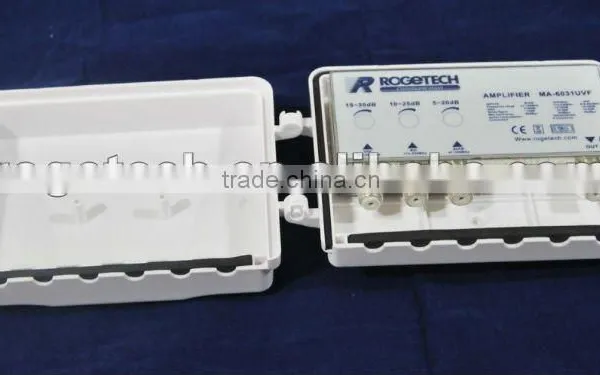

Feature: antenna amplifier

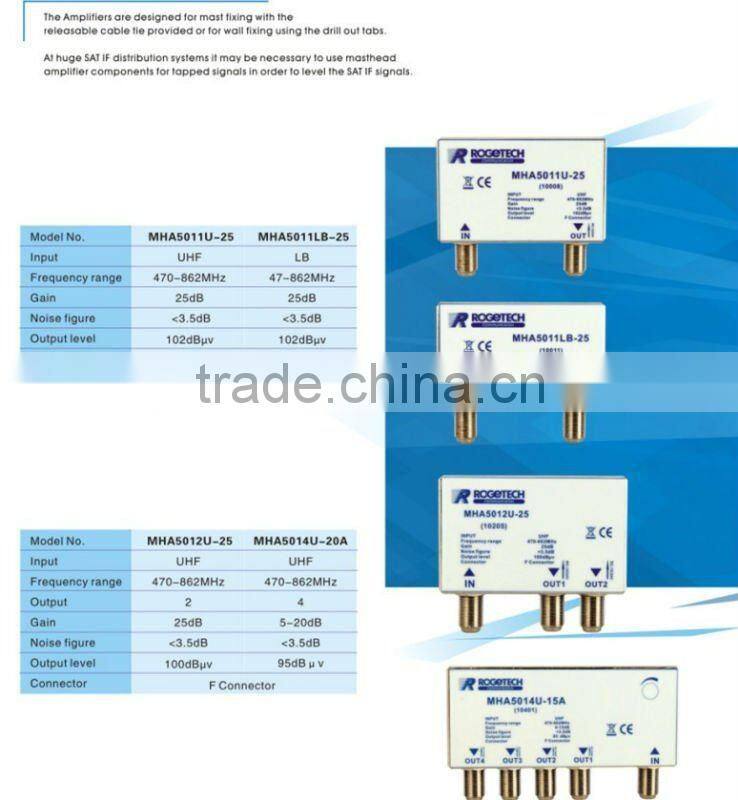

The amplifiers are designed for mast fixing with the releasable cable tie provided or for wall fixing using the drill out tabs.
At huge SAT IF distribution systems it may be necessary to use masthead amplifier components for tapped signals in order to level the SAT IF signals.
Our website:
ROGETECH Communication Technology Co., Ltd. is a company dedicated to the design and production of equipment for reception and distribution of TV signals and satellite signals.
Our slogan is “Bring qualified signal for you". We focus on telecommunication technology which take care all steps between signal sender and signal reception. Qualified signal will make users look at the distant reality as easy and as perfect as on site.
Our products cover receiving, processing, and distributing TV signals (analogue or digital, satellite or terrestrial). Such as Satellite IF Signal Receiving Products, Satellite IF Signal Distribution Products, Terrestrial TV Products, Channel Processing Equipment, Broadband Amplifier, Cable and Network Accessories etc..
Based on our own technology and a team of engineers, we have built good relationship with our customers. We are professional OEM supplier for leading satellite TV operators and companies in the industry.
We never stop our efforts to be recognized by our customers as a reliable partner who offer the best products with competitive price.
