Tig Welder Machine

Name: Tig Welder Machine
Brand: STONOTE, LUGONG, Stonote, Lugong
SKU: 120670505

Negotiable MOQ: 20 Pieces (Price negotiable depending on order volume and customization)

Key Specifications

Place of Origin:

Zhejiang, China

Brand Name:

STONOTE, LUGONG, Stonote, Lugong

Model Number:

TIG-200, TIG-200,315

Taizhou Shitong Welding Equipment Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

NINGBO SHANGHAI

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Zhejiang, China

Brand Name STONOTE, LUGONG, Stonote, Lugong

Model Number TIG-200, TIG-200,315

Arc Current 200A

Pilot Arc Current 20A

Rated Duty Cycle 60%

Specifications

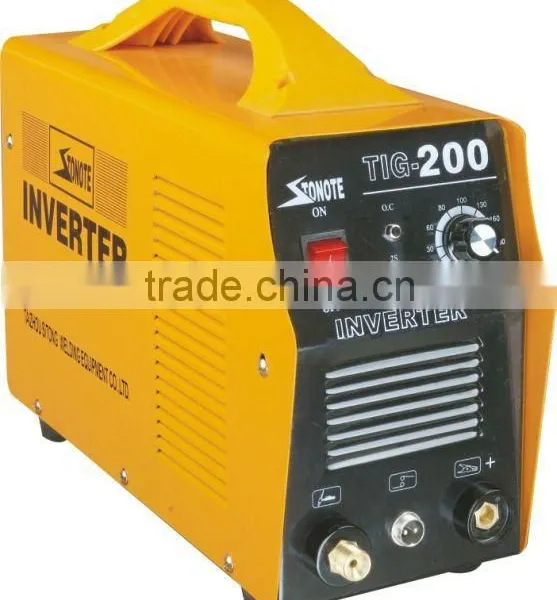

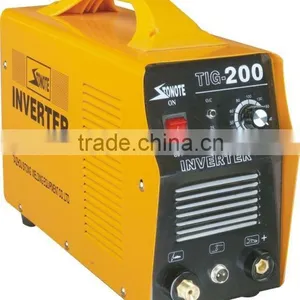

Product model: TIG-200
Advanced inverter technology enables high working frequency. Small, light and portable.

Product Features:
1. Advanced inverter technology enables high working frequency. Small, light and portable. 2. HF supercharged arc-start and hot pulse arc-start. Abundant welding current, high price-performance ratio. 3. Protection against over-voltage and over-current. 4. Output features specially designed for wire-feeding welding, nice form of welded seam. 5. Designed for a wide range of input voltages. High duty cycle, suitable for continuous operations. 6. Simple and clear structure, easy maintenance. Reliable and endurable.

Main Parameters Table(TIG-200):

Input voltage (V)	220V	Power factor	0.73	Rated input current (A)	28
No-load loss (W)	40	Output current (A)	10-200	Housing Protection grade	IP21
Rated output volt.(V)	18	Rated output current (A)	200	Insulation grade	F
Max welding thickness (mm)	10	Duty cycle (%)	60	Efficiency (%)	80
Weight (kg)	9	Dimensions (mm)	400×153×291
Remarks	Input voltage frequency should be 50/60Hz
No-Load voltage(v)	41
