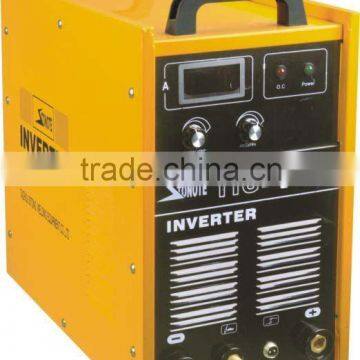

Inverter Tig Welder

Name: Inverter Tig Welder
Brand: STONOTE, LUGONG
SKU: 120670455
Availability: InStock

Negotiable MOQ: 10 Pieces (Price negotiable depending on order volume and customization)

Key Specifications

Place of Origin:

Zhejiang, China

Brand Name:

STONOTE, LUGONG

Model Number:

TIG-500

Taizhou Shitong Welding Equipment Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

NINGBO SHANGHAI

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Zhejiang, China

Brand Name STONOTE, LUGONG

Model Number TIG-500

Arc Current 500A

Pilot Arc Current 20A

Rated Duty Cycle 60%

Specifications

Arc welding machine
TIG-500

Product Features:

1. Advanced inverter technology enables high working frequency. Small, light and portable.

2. HF supercharged arc-start and hot pulse arc-start. Abundant welding current, high price-performance ratio.

3. Protection against over-voltage and over-current.

4. Output features specially designed for wire-feeding welding, nice form of welded seam.

5. Designed for a wide range of input voltages. High duty cycle, suitable for continuous operations.

6. Simple and clear structure, easy maintenance. Reliable and endurable.

Main Parameters Table:

Input voltage (V)	380V	Power factor	0.93	Rated input current (A)	15.5
No-load loss (W)	40	Output current (A)	10-500	Housing Protection grade	IP21
Rated output volt.(V)	30	Rated output current (A)	500	Insulation grade	F
Max welding thickness (mm)	28	Duty cycle (%)	60	Efficiency (%)	85
Weight (kg)	28	Dimensions (mm)	575×330×545
Remarks	Input voltage frequency should be 50Hz.
No-Load voltage(v)	72
