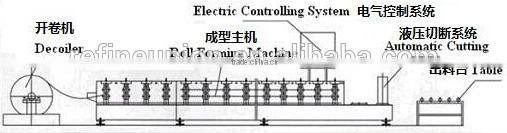

Tile Roll Forming Machine Production Process:
Decoiling→Feeding material into machine→Roll forming→Measuring length→ Step formed→ Auto cutting→
Products receiving
Parameter:
No. | Parameter | |
1 | suitable material | Color Steel plate, galvanized sheet |
2 | Feeding width | 1000mm |
3 | Rows of rollers | 13 rows |
4 | Main power | 4kw |
5 | Hydraulic power | 3kw |
6 | Main frame | 300 H steel |
7 | Thickness of raw material | 0.3-0.8mm |
8 | Transportation system | Chain transportation |
9 | Thickness of chain | 1.0 inches |
10 | Productivity | 8-10m/min |
11 | Out diameter of shaft | 70mm (solid shaft) |
12 | Material of shaft | Material of shaft |
13 | Roller material | 45# steel polished and coated with chrome HRC55-60° |
14 | Shear mould | Gr12 |
15 | Voltage | 380V 50Hz 3phases |
16 | Control system | PLC Frequency Control System with touch screen |

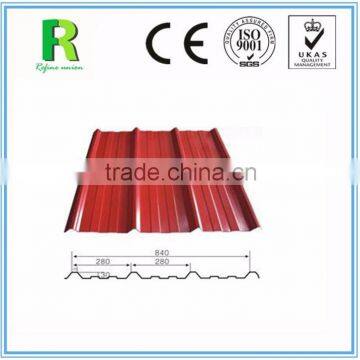

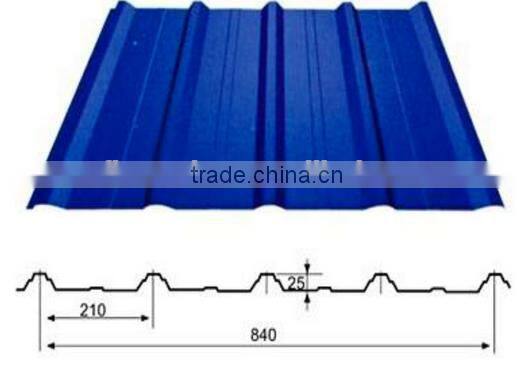

Final Product:

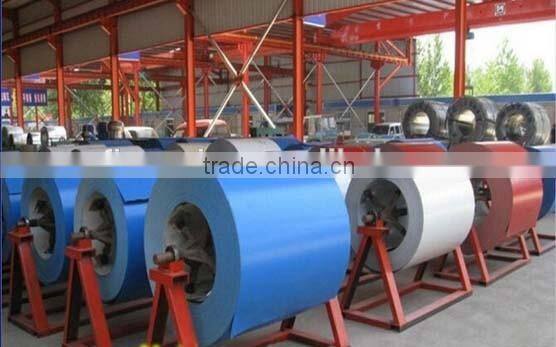

Raw Material:
Machine list:
Decoiler

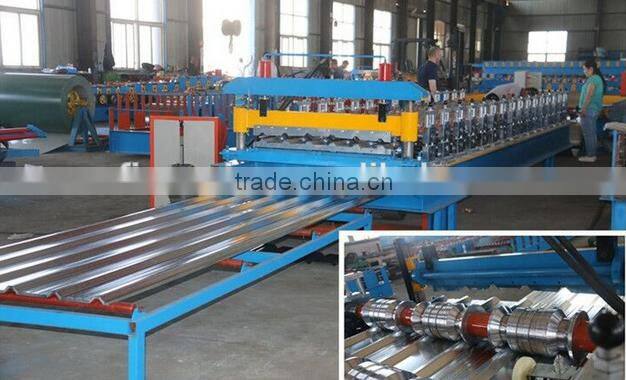

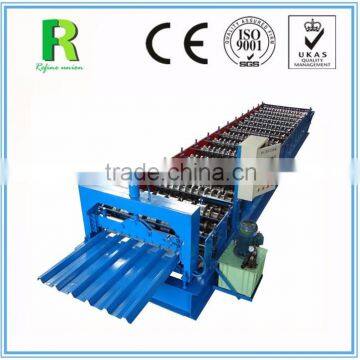

Rolling forming machine
Product receiving table
Controlling Device

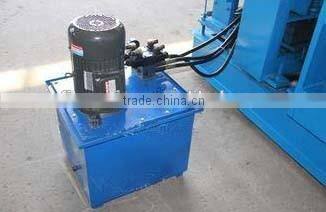

Hydraulic System

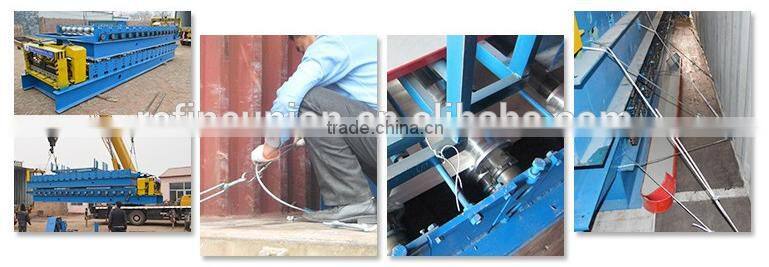

A.Need one 40ft container.
B.Main body of machine fixed to container by 8mm diameter steel wire, rollers and shaft is covered
with anti-rust oil.
C.Spare parts in carton box.
