Taizhou Shitong Welding Equipment Co.,Ltd founded in 1999, is a high-tech enterprise integrating R&D, production, sales and service of electric welding machine. There are more than 280 employees including 21 engineers and technicians. Our equipment were imported from germany,japan etc
Taizhou Shitong Welding Equipment Co.,Ltd founded in 1999, is a high-tech enterprise integrating R&D, production, sales and service of electric welding machine. There are more than 280 employees including 21 engineers and technicians. Our equipment were imported from germany,japan etc.
The products have passed the I S O 9 0 01 international quality system certification ,China Compulsory Certification(CCC) and CE certification. Our company has more than 150 varieties of MOSFET/IGBT welding machine including MMA manual welding machine,MIG/MAG CO2 gas shielded welder ,TIG argon welding machine ,WS AC and DC argon arc welding machines ,BX AC welders .we also produce CUT series plasma cutting machine and chargers. Our products are widely used in electric power, petroleum, shipbuilding, automobiles, steel, machinery manufacturing and other industries.Our products have exported to around the world ,especially Middle East ,Europe ,Southeast Asia and south American.
We insist on market as guide, technology as driving force, customer as focus, quality as core to develop innovation capacity to meet customer needs. With extract informational producing strategy, the company tries to realize producing excellent products and services to customers and become world famous civilian brand. Thank suppliers, appreciate employees and owe society. We strongly believe that only continuous pursuit and innovation can help us create wealth for the society.
The products have passed the I S O 9 0 01 international quality system certification ,China Compulsory Certification(CCC) and CE certification. Our company has more than 150 varieties of MOSFET/IGBT welding machine including MMA manual welding machine,MIG/MAG CO2 gas shielded welder ,TIG argon welding machine ,WS AC and DC argon arc welding machines ,BX AC welders .we also produce CUT series plasma cutting machine and chargers. Our products are widely used in electric power, petroleum, shipbuilding, automobiles, steel, machinery manufacturing and other industries.Our products have exported to around the world ,especially Middle East ,Europe ,Southeast Asia and south American.
We insist on market as guide, technology as driving force, customer as focus, quality as core to develop innovation capacity to meet customer needs. With extract informational producing strategy, the company tries to realize producing excellent products and services to customers and become world famous civilian brand. Thank suppliers, appreciate employees and owe society. We strongly believe that only continuous pursuit and innovation can help us create wealth for the society.

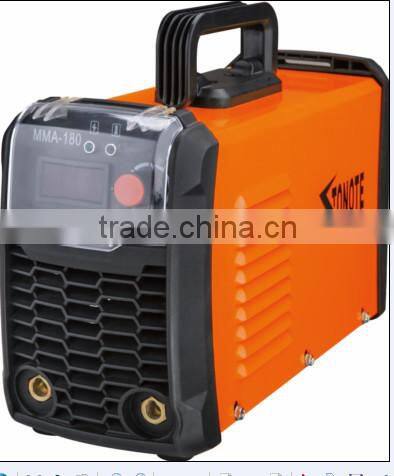

Detailed Product Description MMA welding machine (General)
Model No.: MMA-200(IGBT)
Details:
1.Equipped with imported IGBT of high power to output high welding current.
2.The Tri-proof(water, dust and eroding proof) cooling system raised the reliability and duty cycle of the key components.
3.The duty cycle is higher than 50% when the temperature of the operation surrounding is around 400C.Capable to operate outdoors.
4.The maximum output efficiency is 85%. By using the advanced electro-circuit for power factor compensation, the max power factor could be as high as 0.93.
5.With the functions of Arc-Force, adjustable Hot-Star current. With digital display of the welding current and remote control for option.
6.Wide used in the operations of petrol pipe line construction, chemical industry, automobile industry, ship building, boiler building , power plant construction, nuclear power plant, construction, aviation, war industry, industrial equipment, bridge guiding and operations in The 016-17utdoors.
Main Parameters Table:
Input voltage(V): |
220 |
Power factor: |
0.93 |
Rated input current (A): |
28 |
Max welding rod Diameter(mm): |
3.2 |
Output current (A): |
30-200 |
Housing protection grade: |
IP21 |
Rated output volt(V): |
28 |
Rated output current(A): |
200 |
Insulation grade: |
F |
Max welding thickness(mm) |
6 |
Duty cycle(%): |
60 |
Efficiency (%):: |
85 |
Weight(kg): |
4.2 |
Dimensions (mm) |
330x190x230 |
||
Remarks: |
Input voltage frequency should be 50/60Hz |
||||
inside
warehouse
PACKING
Plywood case
Cartons(kraft paper box/honeycomb carton/color box)
Decided by the customer
1. IGBT inverter technology: Adopt advanced inverter technology which is characterized by
an ultrapowerful welder with smaller size and lighter weight(2.3~6.5 kgs) but also guarantee its high
utilization rate of the power.
2. Light and Handy: They are ideal machines suitable for small scale construction work,upholster industry,high altitude,field operation,repairing and the home handyman.
3. Hot start: Gives easy perfect arc initiation.
4. Fan cooled: Minimize the intake of particle content,improve the duty
cycle,welding performance and extending the life.
5. Overload protection: Perfect self-protective function in cases of over-voltage,
low-voltage,over-current, over-heat;safe and reliable.
6. Suit for all kinds of basic welding rod,including acidity and alkalescence electrode.
7. Suit for carbon steel,stainless,alloy steels and other require
welding testing
SPARE PARTS for free
access
supplied complete with electrode holder,earth clamp,face mask and welding brush.
welder
Exhibition in dubai
ce
1. IGBT inverter technology: Adopt advanced inverter technology which is characterized by
an ultrapowerful welder with smaller size and lighter weight(2.3~6.5 kgs) but also guarantee its high
utilization rate of the power.
2. Light and Handy: They are ideal machines suitable for small scale construction work,upholster industry,high altitude,field operation,repairing and the home handyman.
3. Hot start: Gives easy perfect arc initiation.
4. Fan cooled: Minimize the intake of particle content,improve the duty
cycle,welding performance and extending the life.
5. Overload protection: Perfect self-protective function in cases of over-voltage,
low-voltage,over-current, over-heat;safe and reliable.
6. Suit for all kinds of basic welding rod,including acidity and alkalescence electrode.
7. Suit for carbon steel,stainless,alloy steels and other require
Our Services
(1)We will be answer within 24 hours,Welcome to contact with us if you have any problems.We warmly welcome to visit our company and looking forward to cooperating with you.
(2)We can offer OEM or ODM service,according to customers requirements.
(3)Unique and exclusive solution can be provided to our customers by our professional engineers.
