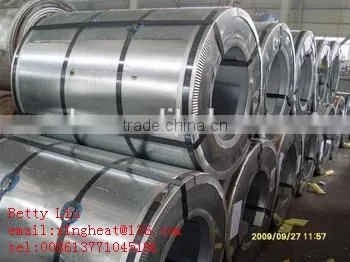

Help Center55% Aluminum-Zinc Alloy Coated by the Hot-Dip Process
Related Products
-
Galvalume Steel Coils (GL) in Jiangsu WuxiUS$ 480 - 530MOQ: 25 Tons -
Galvalume Coils AZM150US$ 700 - 800MOQ: 40 Metric Tons
-
55% Aluminium-zinc Alloy Coated Steel Sheet in CoilsUS$ 600 - 800MOQ: 50 Tons
-
Galvalum Steel Coil With Anti-fingerprintUS$ 710 - 850MOQ: 50 Tons
-
Aluminum-zinc Alloy Coated Steel Sheet and Strip, Galvalume Coils,SGLC,GLUS$ 700 - 900MOQ: 50 Tons
Specifications
1.Thickness: 0.23mm to 2.0mm2.AZ coating: 50g/m2 to 150g/m2
3.Y.S.: G300;G360;G550
4.Suface: anti-fingerprint; passivation;
GL specifications
Product: |
GALVALUME STEEL COILS; ALU-ZINC STEEL COILS |
Material: |
DX51D |
Thickness & tolerance: |
0.23-2.0 mm (tolerance -/+0.02 mm) |
Width & tolerance: |
900mm-1250mm (tolerance -0/+3 mm) |
Y.S: |
340 MPa –550MPa |
AZ coating: |
50-180g/m2 |
Surface finish: |

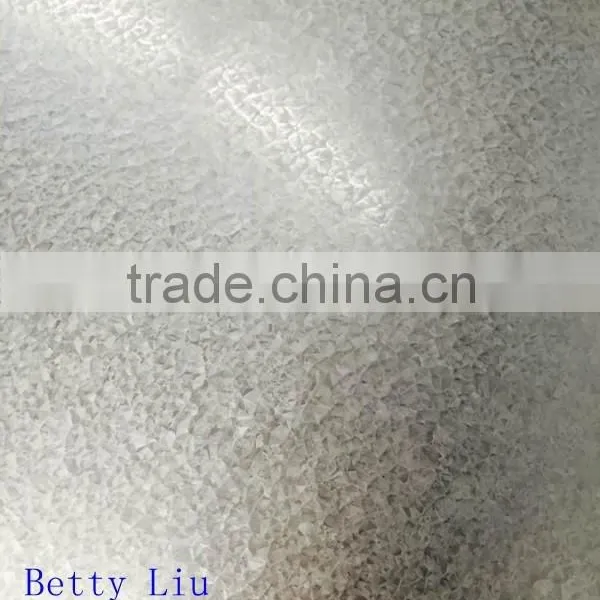

Anti-fingerprint or passivation skinpss |
Price: |
EXW;FOB,CFR,CIF |
Payment terms: |
L/C;T/T;DP; |
MOQ: |
40 Metric tons |
Packing: |
Seaworthy packing |
Delivery: |
40 days after advanced deposit |
Appliations: |
Contruction; roof; ceiling; wall of workshop; backboard of household appliances |
rust paper- paper sleeve -metal jacket- - straps
1.Quality Control:
The quality control inspection will be made, taking into account the following features:
a. Mechanical properties
b. dimensions and thickness of coating layer,
c. the quality of the steel surface after painted should be uniform, smooth, slight oiling, even, with no scratches, wrinkles or any other visible marks.
2. after-sales tracking service
WUXI XINDAZHONG STEEL SHEET CO.,LTD founded in 2004, emplyee 700, registered capital 21,000,000 us dollars.

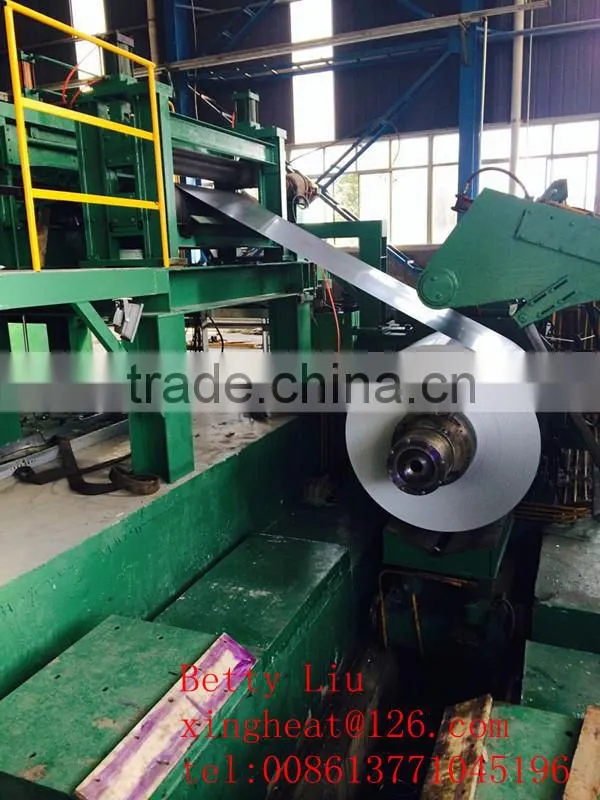

we have two lines for tinplate and tin free steel capacity 120000mt per year, one line for GL capacity 200000mt per year.
