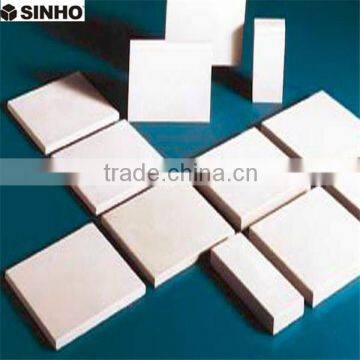

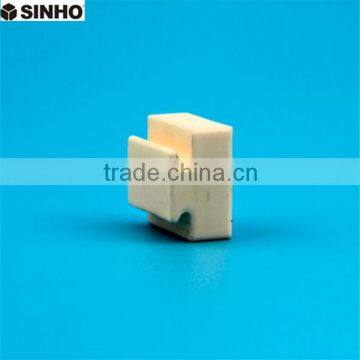

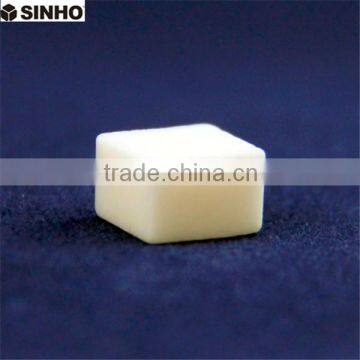

SHC wear-resistant ceramic tile
The main component of SHC wear-resistant ceramic is high purity alumina with excellent performance and good price and widely used material in the family of engineered ceramics. A high density, diamond like hardness, fine grain structured and superior mechanical strength are the unique properties that make it the material of choice for a wide range of demanding applications. Because of insulating properties, it is often used in electronic products.
Performance characteristics
1.Super high hardness
2.Very good wear resistance
3.Low density
4.Excellent temperature resistance
Application
1.It is mainly used in the material transportation and preparation system where needs wear protection.
2.Used in the condition with high temperature, such as crucible, refractory furnace tube, thermocouple, laser tube, etc.
3.Used in the condition with corrosion protection, such as corrosion resistant to acid and alkali in the material conveying system.
4.It is used for making electronic ceramic, such as circuit board, substrate, vacuum device, etc.
5. It is used for structural ceramic parts, such as ceramic bearings, seals, water valve pieces, textile machine wear parts, automotive spark plug, metal wire drawing die, etc.
The Technical Specifications
The performences |
Unit |
No. |
| Content of AL2O3 |
% |
≥95% |
| Density |
g/cm3 |
3.7 |
| Rockwell hardness |
HRA |
88 |
| Rupturing toughness |
MPa.m1/2 |
4 |
| Compression-resistant strength |
MPa |
≥850 |
| Bend-resistant |
MPa |
300 |
| Thermal conductivity |
W/m.K
|
24 |
Thermal expansion coefficient |
10-6 m/m.K |
5.0-8.3
|
