SHC-CR Ceramic pulley lagging

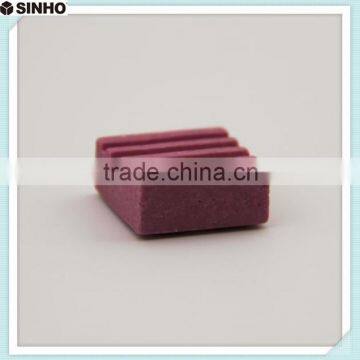

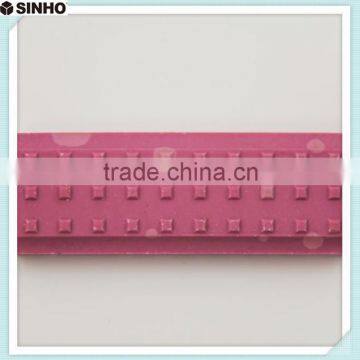

Pulley is not an ideal solution particularly in outdoor conditions, conveyor belt when slips cause significant damage to the drive pulley and the belt. Such damages are not only expensive to repair, but also time consuming and cause enormous loss due to down time. Ceramic pulley lagging is constructed from hundreds of individual ceramic tiles molded into a durable rubber backing. In certain applications, ceramic lagging can effectively prevent the sliding friction between the roller and the belt, and reduce the roller surface binding material, thereby reducing the belt deviation and wear. It is advanced, reliable, fast and convenient installation. Reduce the working intensity of disassembly and assembly, to avoid security risks, and improve maintenance& efficiency.
Product Features:
Excellent wear resistant property
Great friction resistance, no belt misalignment no slipping
Automatic drain contamination, mud removing.
Service life 5 times that of normal rubber coating dive pulley
Application
Applicable to high wear, easy slippage and material or extreme wet conditions, especially suitable for steel cable conveyor belt or high speed and high tension conveyor belt.
Pulley form
Driving pulley, Bend pulley, passive pulley
Working temperature: ≤100℃
Product performance criteria
ITEM | Ceramic hardness (Vivtorinox)
| Rubber elongation rate
| Rubber hardness
| The tensile strength of ceramic rubber | Ceramic roller coated heat resistance |
criteria | 1800 | 400% | 60±5 | 150kg/cm2 | 100℃ |
Friction coefficient in different conditions
working condition | Iron and steel (non coated rubber) | coated rubber | coated ceramic |
dry | 0.35-0.4 | 0.4-0.45 | 0.75-0.85 |
damp | 0.1-0.15 | 0.33-0.38 | 0.5-0.8 |
muddy | 0.1-0.15 | 0.22-0.30 | 0.45-0.55 |
Shandong SINHO will design and manufacture the custom-made products and provide tailor-made solution to every individual wear problem in specific conditions. It is very appriated to provide your equipment drawings and site condition features, so we will provide the most suitable anti abrasion and wear program for you.
