Specifications

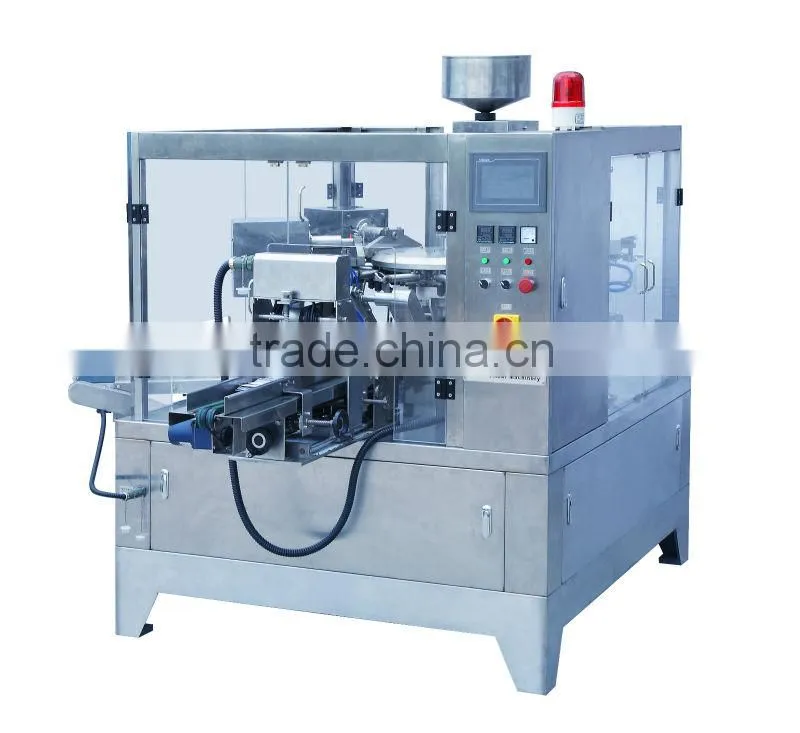

Automatic Solid Grain Packaging Machine fill different sauces into premade pouches ,bags.Automatic Solid Grain Packaging Machine Summarize:This automatic packing machine unit is specialized in the granular, such as wash clothes powder, rice, seed, white sugar, feed, sesame.This machine includes the rotary packing machine, Linear Weigher and Working Platform.
Function and characteristics:
1.Easy to operate, adopt advanced PLC from Germany Siemens, mate with touch screen and electric control system, the man-machine interface is friendly.
2.Automatic checking: no pouch or pouch open error, no fill, no seal. the bag can be used again, avoid wasting packing materials and raw materials.
3.Safty device: Machine stop at abnormal air pressure, heater disconnection alarm.
4. The width of the bags could be adjusted by electrical motor. Press the control-button could adjust the width of all clips, easily operate, and raw materials.
5.The part where touch to the material is made of stainless steel.
Main technical parameters
Pouch material |
Laminated filmPEPP etc. |
Pouch pattern |
Stand-up, stand-up & zipper, spout, flat |
Pouch size |
W:100-210mm L:100-350mm (could be customized to your measure) |
Filling range |
10-1000g (could be customized to your measure) |
Weigher accuracy |
±0.1-2g |
Speed |
≤50pouches/min(The speed depends on the product status and filling weight)) |
Voltage |
380V 3phase 50HZ/60HZ |
Total Power |
4KW |
Compress air |
0.6m3/min ( Supplied by user) |
Notice: Based on parameters such as bag type, bag sizes to choose different types of packaging machine.
Product Process:
1,Giving pouch
2,Coding date
3,Open pouch
4,Filling and vibarating
5,Exhaust & Sealing
6,Neaten and output packages
