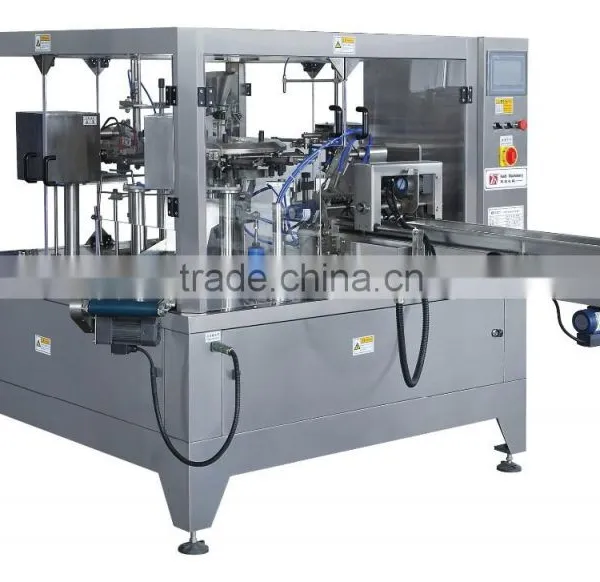

Automatic Stand-up Zipper Doy Pouch Filling Packing Machine
Summarize
The equipment is mainly applied to small pouches(like radix isatidis infusion, coffee, cereals, granulars infusion for influenza, etc.) automatically count packaging. Through the quantity of the pouches to the rotary packing machine, and the rotary packing machine will do filling, sealing and output packages. A complete set of equipments with high degree of automation. So that it could have you to save the labour and improve the production So that it could help you to save the lavour and improve the production.
Function and Characteristics
1.Easy to operate, adopt advanced PLC from Germany Siemens, mate with touch screen and electric control system, the man-machine interface is friendly.
2.Automatic checking,no pouch or pouch open error, no fill, no seal. the bag can be used again, avoid wasting packing materials and raw materials.
3.Safty device,Machine stop at abnormal air pressure, heater disconnection alarm.
4. The width of the bags could be adjusted by electrical motor. Press the control-button could adjust the width of all clips, easily operate, and raw materials.
5.The part where touch to the material is made of stainless steel is accord with the request of GMP
Main technical parameters

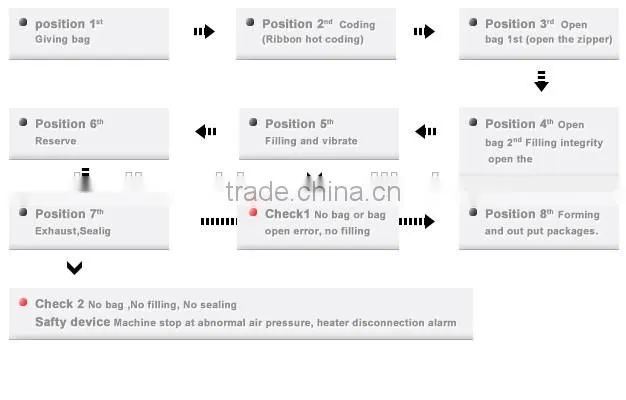

Working position |
eight-working position |
Pouch material |
Laminated filmPEPP etc. |

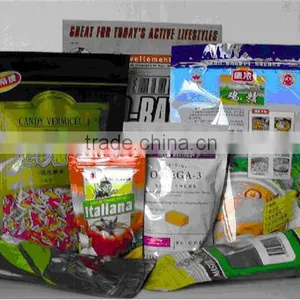

Pouch pattern |
Stand-up, stand-up & zipper, flat |
Filling range |
8-50small bags/times |
Pouch size |
W:100-210mm L:100-350mm (could be customized to your measure) |
Speed |
≤35pouches/min(The speed depends on the product status and filling weight) |
Total Power |
6.2KW |
Voltage |
380V 3phase 50HZ/60HZ |
Compress air |
0.6m3/min ( Supplied by user) |
