Specifications

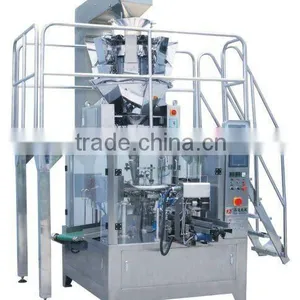

Automatic pet-food packing machine is applied to liquid and bulk materials for double filling, such as bone soup,broth,cans etcAutomatic Pet-food Packing Machine
Function and characteristic:
1. Easy to operate, adpot davanced PLC form Germany Siemens, mate with touch screen and electric control system, the man-machine interface is friendly.
2. Automatic checking:no pouch or pouch open error, no fill, no seal.The bag can be used again,avoid wasting packing materials and raw materials.
3. Safty device: Machine stop at abnormal air pressure, hester disconnection alarm.
4. The width of the bags could be adjusted by electrial motor.Press the control-button could adjust the width of all clips,sasily operate, and raw materials.
5. Double-filling working position,it also could fill two different kin material at the same time.Such as granule and liquid two different kind materials and so on.
6. The part where touch to the material is made of stainless steel.
Main technical parameters:
| Working position | Eight-working position |
| Pouch material | Laminated film,PP,PE etc. |
| Pouch pattern | Stand-up, spout, falt |
| Pouch size | W:100-210mm L:100-350mm(could be customized to your measure) |
| Filling range | 10-1000g(could be customized to your measure) |
| Weigher accuracy | ±0.5-1.5g |
| Speed | ≤60 pouches/min(The spend depends on the product status and filling weight) |
| Total power | 5.5KW |
| Voltage | 380V 3phase 50HZ/60HZ |
| Compress air | 0.6m3/min(supply by user) |
Product Precess:
1. giving pouch
2. coding date
3.open pouch
4.filling 1st
5.filling 2nd
6.sealing 1st
7.sealing 2nd
8.neaten and output packages
