Specifications

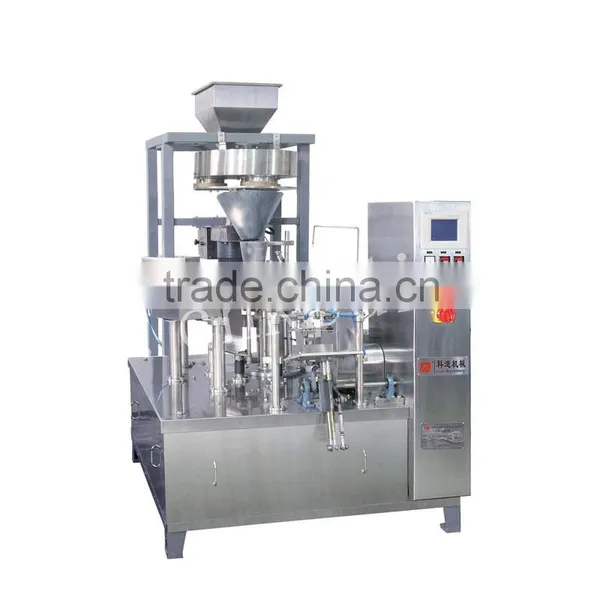

Automatic volumetric-cup packing machine is specialized in the powder and granularAutomatic Volumetric-cup Packing Machine
Function and characteristics:
1. Easy to operate, adopt advanced PLCform Germany Siemens,mate with touch screen abd electric control system, the man-machine interface is friendly.
2. Automatic checking: no pouch or pouch open error, no fill, no seal.The bag can be used again, avoid wasting packing materials and raw materials.
3. Safty device: Machine stop at abnormal air pressure, heater diaconnection alarm.
4. The width of the bags could be adjusted by electrical motor.Press the control-button could adjust the width of all clips, easily operate, and raw materials.
5. The part where touch to the materials is made of stailess steel.
Main technial parameters:
| Pouch material | Laminated film,PE,PP etc. |
| Pouch pattern | Stand-up, stand-up&zipper, spout, flat |
| Pouch size | W:100-210mm L:100-350mm(could be customized to your measure) |
| Filling range | Could be customized to your measure |
| Speed | ≤60pouches/min(The speed depends onthe product status and filling weight) |
| Total power | 4.5KW |
| Voltage | 380V 3phase 50HZ/60HZ |
| Compress air | 0.6m3/min(supply by user) |
| Notice | Based on parameters such ad bag type,bag sizes to choose different type of packaging machine. |
Product process:
1.giving pouch
ding date
3.open pouch
4.filling
5.sealing
6.neaten and output packages

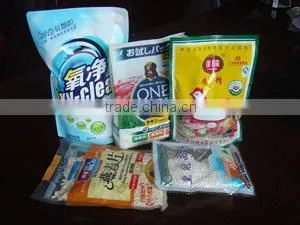

Sample:
