Thrust Ball Bearing 51100 51200 51300 51400 52200 52300 51105 51106

Thrust Ball Bearing 51100 51200 51300 51400 52200 52300 51105 51106 thumbnail-1
Thrust Ball Bearing 51100 51200 51300 51400 52200 52300 51105 51106 thumbnail-2
Thrust Ball Bearing 51100 51200 51300 51400 52200 52300 51105 51106 thumbnail-3
Thrust Ball Bearing 51100 51200 51300 51400 52200 52300 51105 51106 thumbnail-4
Thrust Ball Bearing 51100 51200 51300 51400 52200 52300 51105 51106 thumbnail-5
Thrust Ball Bearing 51100 51200 51300 51400 52200 52300 51105 51106 thumbnail-6
Thrust Ball Bearing 51100 51200 51300 51400 52200 52300 51105 51106 photo-1
Thrust Ball Bearing 51100 51200 51300 51400 52200 52300 51105 51106 photo-2
Thrust Ball Bearing 51100 51200 51300 51400 52200 52300 51105 51106 photo-3
Thrust Ball Bearing 51100 51200 51300 51400 52200 52300 51105 51106 photo-4
Thrust Ball Bearing 51100 51200 51300 51400 52200 52300 51105 51106 photo-5
Thrust Ball Bearing 51100 51200 51300 51400 52200 52300 51105 51106 photo-6
US$ 0.01 - 1 MOQ: 10 Pieces
Key Specifications
Get Latest Price
Brand Name:
Q@J
Bore Size:
10, 90
Outside Diameter:
24, 155
Contact Supplier Request Quote Chat Now
Qingdao Jiade Bearing Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name Q@J
Bore Size 10, 90
Outside Diameter 24, 155
Model Number 51100, 51100
Precision Rating P0
Seals Type open
Number of Row Single Row
Place of Origin Shandong, China
Product Description

thrust ball bearing 51100 51200 51300 51400 52200 52300 51105 51106thrust ball bearing 51100 51200 51300 51400 52200 52300 51105 51106

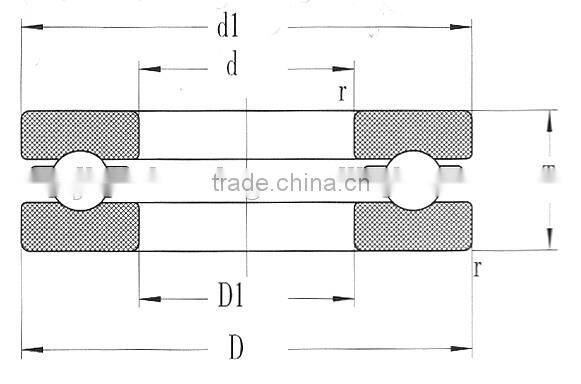

BearingNO. Dimensions     Weigh(kg) Bearing No.         Weigh(kg)
ISO CODE OLD CODE d D B   ISO CODE OLD CODE d D B
51100 8100 10 24 9 0.020 51215 8215 75 11027   0.085
51101 8101 12 59 9 0.021 51216 8216 80 115 28 0.925
51111 8111 55 78 16 0.240 51311 8311 55 105 35 1.340
51112 8112 60 85 17 0.290 51312 8312 60 110 35 1.430
51113 8113 65 90 18 0.324 51313 8313 65 115 36 1.570
51116 8116 80 105 19 0.400 51316 8316 80 140 44 2.800
51117 8117 85 110 19 0.404 51317 8317 85 150 49 3.700
51200 8200 10 26 11 0.029 51405 5405 25 60 24 0.340
51201 8201 12 28 11 0.032 51406 8406 30 70 28 0.350
51202 8202 15 32 12 0.044 51407 8407 35 80 32 0.820

51203

 8203 17 35 12 0.051 51408 8405 40 90 36 1.124
51204 8204 20 40 14 0.077 51409 8409 45 100 39 1.610
51209 8209 45 73 20 0.030 51414 8414 70 150 60 5.069
51210 8210 50 78 22 0.390 51415 8415 75 160 65 6.970
51211 8211 55 90 25 0.619 51416 8416 80 170 68 8.000
51212 8212 60 95 26 0.690 51417 8417 85 180 72 8.550
51213 8213 65 100 27 0.750 51418 8418 90 190 77 9.760
51214 8214 70 105 27 0.790

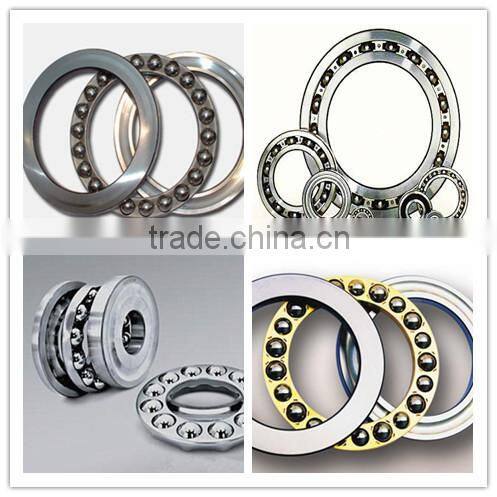

      Thrust ball bearing is a kind of separation type bearings, shaft circle, seat ring and maintain shelf, steel ball component separated.

      Thrust ball bearings with flat back face are separable and divided into sinple direction and double direction designs. The single direction thrust ball bearings with flat back face can only be used to carry axial load in one direction and limit the axial displacement in single direction. The doubledirection thrust ball bearings with flat back face can be used to carry axial loads in both directions and limit the axial displacements in both directions.Neither of them can carry radial loads.

workshop

thrust ball bearing 51100 51200 51300 51400 52200 52300 51105 51106

     Professional production team, production line, experienced technical experts who engaged in this industry for more than 10 years. We have the professional production line for this bearings.

     1. Our bearings are made of chrome steel, it has better corrosion resistance, hardenability and toughness.

     2. Double seal. Adopt nature rubber, made it hard for dirt and grime to get in, running more quietly.

     3. Cage. Also made of chrome steel, it is more durable than carbon steel bearings.

Our Services

1. What types of bearings are you provide?



    We are mainly producing roller bearing: spherical roller bearing; taper roller bearing; full complement cylindrical roller bearing; needle roller bearing; thrust roller bearing etc. We are producing the ball bearing at the same time. All types of bearing we could supply. You just list your requirement, we will give you the best service.



2. I couldn’t find a design to fit my application in your catalog. Can you help me design a bearing?



    Yes, technical expertise is available to assist you with engineering design for custom products. Available options include, but are not limited to, custom rings, retainers, balls, shields, lubricants, and packaging. We look forward to working with you to satisfy your rotary motion requirements.

3. How about the sample policy?



    If we have the sample in stock .we will provide free sample to you. if we don’t have in stock, then you should pay the sample fee . Anyway, the sample fee will pay back to you. when you confirm the order,

Sample fee is charged by the shipping company. Client should pay it.



4. How long is your delivery term?

    Our standard product delivery term is normally 30 days. A new product development cycle is 60 days in normal. Under normal circumstances, there are standing stocks for regular types. You can email us to learn more details.

5. Where is your port of shipment located?



     Our main port of shipment is Qingdao port, and we may operate at other ports if required by the customer.

6. Which payment way is workable?



    PayPal, Escrow (goods have stock, order value less than 500usd); Western Union, Money Gram or T/T (30%deposit, 70% before shipment after presentation of ready cargo)



Any questions, please feel free to contact us!

Welcome your inquiry!



Packaging & Shipping

1.Industrial packaging: plastic tube+carton+ nylon bag+wooden pallets. thrust ball bearing 51100 51200 51300 51400 52200 52300 51105 51106

2.Commercial packaging: plastic bag+color box+carton+nylon bag+wooden pallets.

thrust ball bearing 51100 51200 51300 51400 52200 52300 51105 51106

3.As the clients requirement.

Delivery and payment

thrust ball bearing 51100 51200 51300 51400 52200 52300 51105 51106thrust ball bearing 51100 51200 51300 51400 52200 52300 51105 51106
