Electric 230V 6mm Flexible Tubular Heater

Electric 230V 6mm Flexible Tubular Heater photo-1

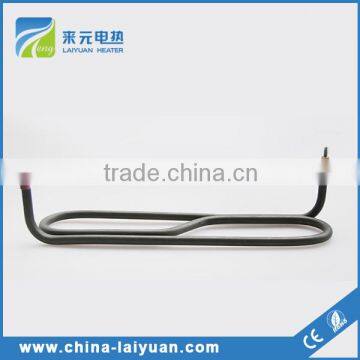

Electric 230V 6mm Flexible Tubular Heater photo-2

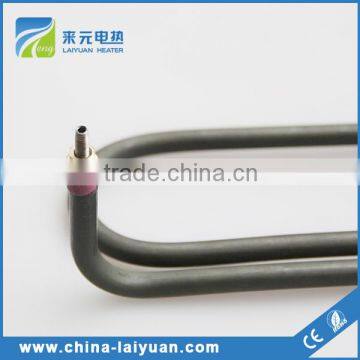

Electric 230V 6mm Flexible Tubular Heater photo-3

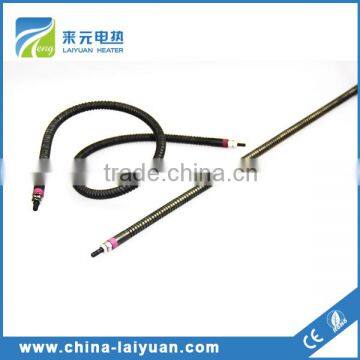

Electric 230V 6mm Flexible Tubular Heater photo-4

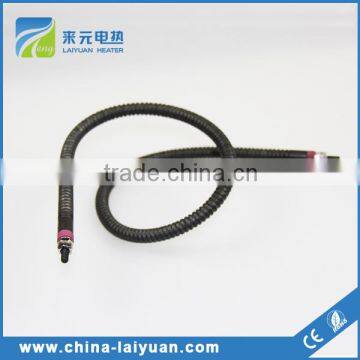

Electric 230V 6mm Flexible Tubular Heater photo-5

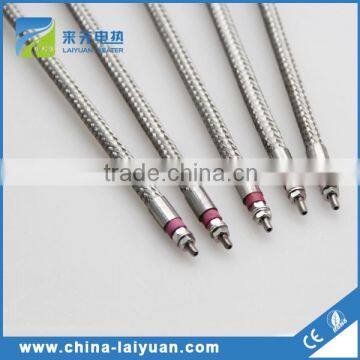

Electric 230V 6mm Flexible Tubular Heater photo-6
US$ 20.80 - 20.80 MOQ: 10 Pieces
Key Specifications
Get Latest Price
Condition:
New
Type:
Air Heater
Power Source:
Electric
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.
Condition New
Type Air Heater
Power Source Electric
Place of Origin Jiangsu, China
Brand Name Laiyuan
Model Number LY-Flex001
Dimension(L*W*H) 6*300mm
Voltage 12V TO 250V
Power(W) 350-4000W
Certification CE,ROHS
Warranty 1 Year
After-sales Service Provided Overseas third-party support available

Electric 230V 6mm Flexible Tubular Heater





Product Description

 Advantage of Flexible tubular heater:

1)Easy installation with a uniform finish

2)Can be formed by hand

3)Stored in a straight condition to save storage space

4)No special installation tools required

5)Patented technology ensures industry leading heat transfer

6)Up to 75% sheath contact with round and square Laiyuan heaters when recommended groove geometry is followed

7)Rapid heat-up times

8)Minimal temperature difference between heater sheath and heated tool

9)Dimensional groove geometry possible

10)Industry’s smallest bending radius

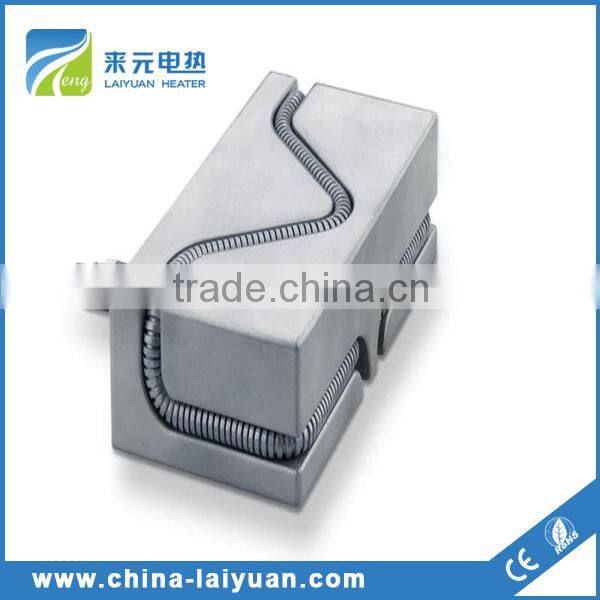

11)Laiyuan’s flexibility enables heat to be located where it is needed; an improvement over rigid cartridge heaters

12)Reduced energy costs: tool mass can be reduced



Technical key features of Felxible Tubular Heater :



Sheath material Stainless Steel
Sheath temperature of heating element Max. 700 °C / 1290 °F
Standard connection voltage 230 V
High voltage test 1000 V AC
Insulation resistance ≥5 Moh at 500 V DC
Leakage current < 0.5 mA at 253 V AC
Wattage tolerance ± 10%
Length tolerance ± 1.5%

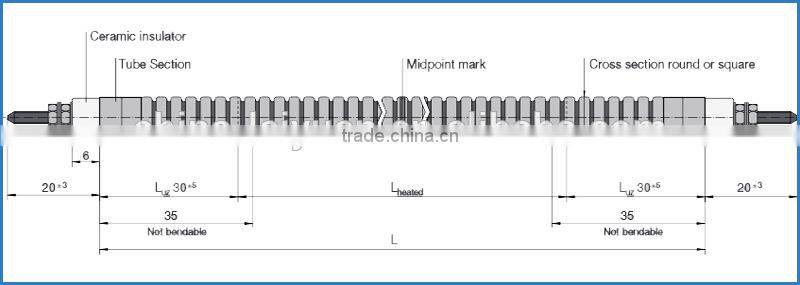

Drawing

 Electric 230V 6mm Flexible Tubular Heater



Options :

1)Bendable unheated zones

2)Connection voltage from 12 V to 250 V

3)Individual length

4)Individual wattage

5)Individual connection options


 Electric 230V 6mm Flexible Tubular HeaterElectric 230V 6mm Flexible Tubular HeaterElectric 230V 6mm Flexible Tubular HeaterElectric 230V 6mm Flexible Tubular HeaterElectric 230V 6mm Flexible Tubular HeaterElectric 230V 6mm Flexible Tubular Heater





Size Of Heater





Packaging & Shipping

 Electric 230V 6mm Flexible Tubular Heater





FAQ

  1. Are you Manufacture or Trade Company?
We are manufacture for Industry Heating Element several years.

 2.Where is your factory located? How can I visit there? Our factory is located in Yancheng City, Jiangsu Province, China .It takes 4.5 hours by bus ride from

 Shanghai .Warmly welcome to visit us freely .

 3.What type of payment do you have available?

 A: TT , L/C, Western Union,Money Gram,PAYPAL,Trade Assurance .

B: West Union,Money gram and Aliexpress are available for sample order .

4.How does your factory do regarding quality control? Quality without compromise, Laiyuan people always attach great importance to quality controlling from the very  beginning to the very end.

5.How to get Free Sample ?

Send your Inquiry Details in the below for free sample ,Click " Send " Now !
