Specifications
1.PLC ,touch screen control2.CE Approved
3.0-60bags/min
4,standup&flat pouch ,with zipper ,with spout

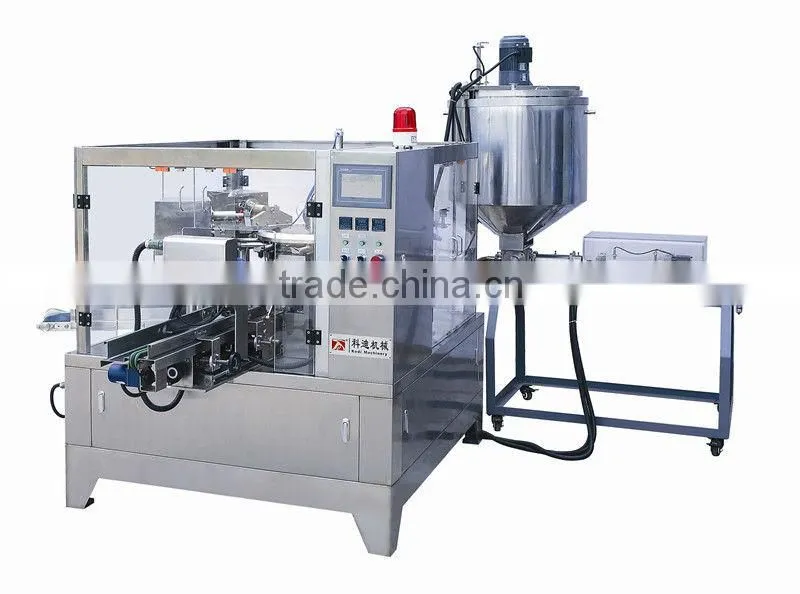

Automatic Doypack Liquid Packing Machine
Function and characteristics
1.Easy to operate,adopt advanced PLC from Germany Siemens, mate with touch screen and electric control system, the man-machine interface is friendly.
2.Frequency conversion adjusts the speed: this machine uses frequency conversion equipment, can be adjusted within the range according to the needs of reality in production.
3.Automatic checking: no pouch or pouch open error, no fill, no seal. the bag can be used again, avoid wasting packing materials and raw materials.
4.Safty device: Machine stop at abnormal air pressure, heater disconnection alarm.
5.Horizontal conveyer style to giving bag: it can put on more bags on the bag
storage and have a low requirement about the quality of bags.
6.The width of the bags could be adjusted by electrical motor. Press the control-button could adjust the width of clips, easily operate, and save time.
7.Use the plastic bearing, don’t need put on oil, less pollution.
8.Use no oil vacuum pump, avoid polluting the environment in the production.
9. huff,clamp the meatus of bag when put the windpipe into it, then huff to open up the bag fully to bottom in oder to avoid the material overflow from the bag if the it is not opend fully
10.The packing materials loss low, what this machine is used the preformed bag, the bag pattern is perfect and has a high quality of the sealing part, this improved the product specification
11.Product or packing bag contact parts adopt stainless steel or other materials which accord with the food hygienic requirements, guarantee hygiene and security of the food
12.With different feeders changed to pack solid, liquid, thick liquid ,powder and so on.

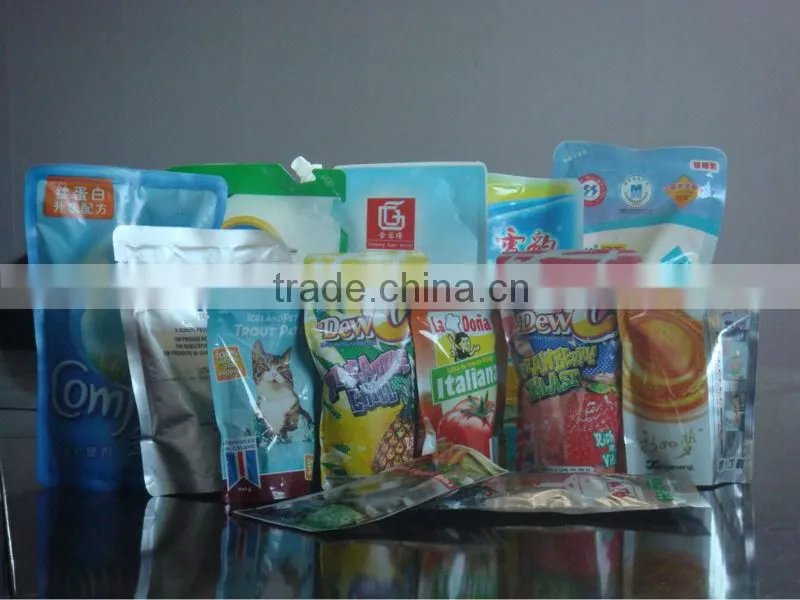

1.The packing bag suits in extensive range, suit for multi-layer compound, monolayer PE , PP and so on Preformed bag made by film and paper.
Specifications
Model |
GD8-200A+YJL-500B |
Working position |
eight-working position |
Pouch material |
Laminated filmPEPP etc. |
Pouch pattern |
Stand-up,spout,falt |
Pouch size |
W:100-210mm L:100-350mm |
Filling range |
10-1000ml (to be customized 3000ml) |
Speed |
10-60 packs/min(be decided by the weight and the status of the products) |
Weigher accuracy |
±1% |
Weight |
1000KGS |
Voltage |
240V 3phase 50HZ/60HZ |
Total power |
4.5KW |
Compress air |
0.6m3/min(supply by user) |
