Specifications
Autoamtic counting rotary packing machine is mainly applied to small pouches automatically count packaging.,

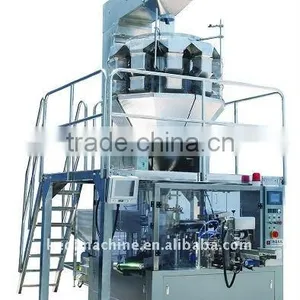

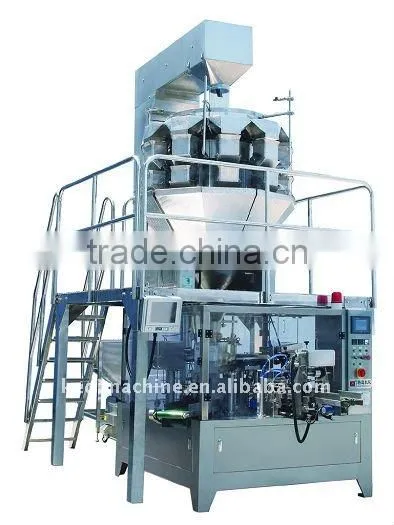

Automatic Counting Rotary Packing Machine
Function and Characteristics:
1.Easy to operate, adopt advanced PLC from Germany Siemens, mate with touch screen and electric control system, the man-machine inteface is friendly.
2.Automatic checking: no pouch or pouch open error, no fill, no seal, the bag can be used again, avoid wasting packing materials and raw materials.
3.Safty deveice: Machine stop at abnormal air pressure, heater disconnection alarm.
4.The width of the bags could be adjusted by electrical motor. Press the control-button could adjust the width of all clips, easily operate, and raw materials.
5.The part where touch to the material is made of stainless steel is accord with the request of GMP.
Specifications:
| Working position: | ten-working position |
| Pouch material: | Laminated filmPEPP etc. |
| Pouch pattern: | Stand-up, stand-up&zipper, spout, flat |
| Filling range: | 8-50small bags/times |
| Pouch size: | W:100-210mm L:100-350mm(could be coustomized to your measure) |
| Speed: | ≤60pouches/min(The speed depends on the product status and filling weight) |
| Total power: | 6.2KW |
| Voltage: | 380V 3phase 50HZ/60HZ |
| Compress air: | 0.6m3/min(supply by user) |
Product Process:
1.Giving bag
2.Coding date
3.Open zipper(optional)
4.Filling specification
5.Open upside of pouch and open underside of pouch
6.Filling
7.Vibrating
8.Pressing
9.Sealing
10.Neaten,check online, output packages
