Home > Industrial Equipment & Components > Refrigeration Equipment > Cold Room > Blast Freezer Cold Room For Fish
US$ 1 - 10,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Temperature:
-5C to -30C (it is adjustable)
Place of Origin:
Guangdong, China
Payment & Shipping
Payment Methods:
Port of Shipment:
GZ Huangpu or Nansha Port
Delivery Detail:
Delivery time depends on order quantity.
Condition New
Temperature -5C to -30C (it is adjustable)
Place of Origin Guangdong, China
Brand Name CBFI
Model Number VCR series
Voltage 380V/3P/50Hz
Power(W) Cold Room Specifications
Dimension(L*W*H) Customized Standard
Weight Cold Room Dimension
Certification CE ISO
Warranty One Year
After-sales Service Provided Engineers available to service machinery overseas


Blast Freezer



Cold Room Application

Cold room are widely used in food process factory, dairy factory, pharmaceutical factory, chemical factory, fruit and vegetable warehouse, egg storage, hotel, supermarket,  hospital, blood bank, troops and laboratory.

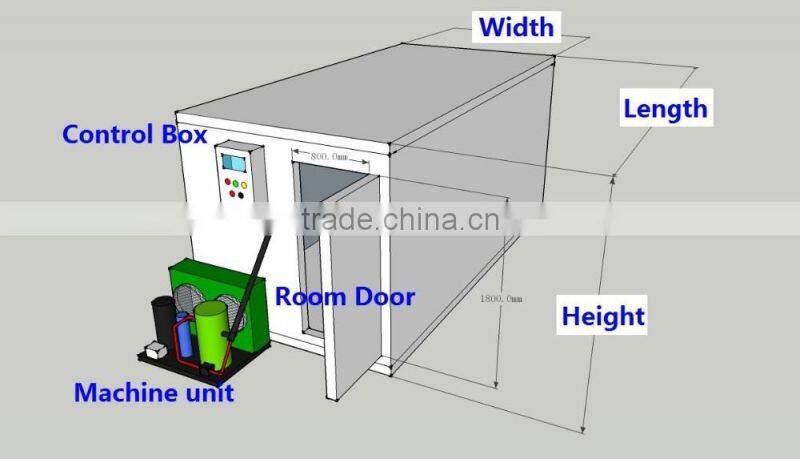

A complete cold room include:

1) Cold room body
2) Cold room door

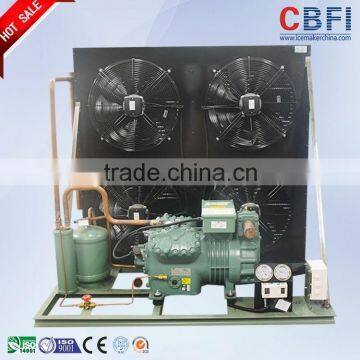

3) Machine unit
4) Control Box
5) Other essential parts of the machine installation as the picture show.



Main Features

— Temperature range: +15℃ to -45℃ are all available.

— Cold room Size: customization.

— Functions: fresh-keeping, freezing, quick-freezing.

— Cold room panel of density: 38~42kg/m³ and above.

— Automatic electric control by PLC.

— Refrigerating Unit Brand:American copeland, Germany Bitzer, Germany Bock and Taiwan Hanbell.

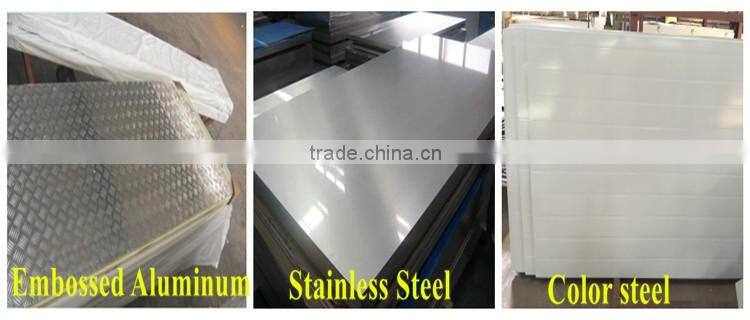

Three kinds of polyurethane panel of cold room


Features:
Density of rigid polyurethane is 38~42kg/m³,which is the lowest thermal conductivity in thermal insulation material.
- 100 mm, 150mm, 200mm, 250 mm of panel thickness for optional.
Polyurethane panel has good performance of moisture-proof and water proof.
Polyurethane panels have fireproof, flame retardant, heat-resistant. It will not produce harmful gases at high temperature.
Polyurethane cold room panel has strong anti-deformation, uneasy to crack, and its surface is stable and safe.
Polyurethane panel has light weight, easy to disassemble and assemble, easy to use.


Different cold room has different temperature, it is equip with different thickness polyurethane panel.

Cold room temperature
Thickness of wall and roof panel
5~15°C
75mm
-15~5°C
100mm
-15~-20°C
120mm
-20~-30°C
150mm
lower than -30 degree
200mm

Display of Cold Room Door

1) Electric Sliding door.
2) Sliding door.
3) Hinge door.



Cold Room Project In ZAMBIA

our company arrange the engineer helping customer to install cold room in zambia, also get along with local people.


Customer from MALAYSIA                   Customer from MADAGASCAR             Customer is discussing                                                                                                                                                 product details with our staff




Intelligent Cold Room



Intelligent Cold Room



Blast Freezer







1)Warranty: One year.
2)Manual book: Detail instruction book with clear drawing will be provided to tell you how to install and operate the machine.
3) If customer's technicians come to Guangzhou and visit our factory, we can train them how to operate and install machines.
4) After -sale service overseas is available when you need.



Q1: Why don’t you choose Ammonia as refrigerant ?
A: 1.As we know, Ammonia, with a strong pungent smell, is a toxic refrigerant. It have strong stimulation to our eyes, nose, throat, lung and skin. It can be danger of fire and explosion when the air concentration of ammonia is more than 15%. Therefore, the ammonia refrigeration system come under a rigorous regulatory approvals by the State administration of work safety.


Q2: What configuration of the voltage of the machine is ?
A: We adopt standard voltage -380V/3P/50Hz usually, non-standard voltage can be customized, the price is extra.

Q3: What’s your usual practice about terms of payment ?
A:The payment can be T/T,L/C,Western Union, Money Gram and in Cash. The deposit is 30%, after we receive your deposit, we will start to produce the machine for you. The balance 70% should be paid before shipping.

Q4: How long is the time of delivery?
A: The delivery time normally is 30 days after we receive the deposit. And If necessary, we will arrange the shipping for you.
