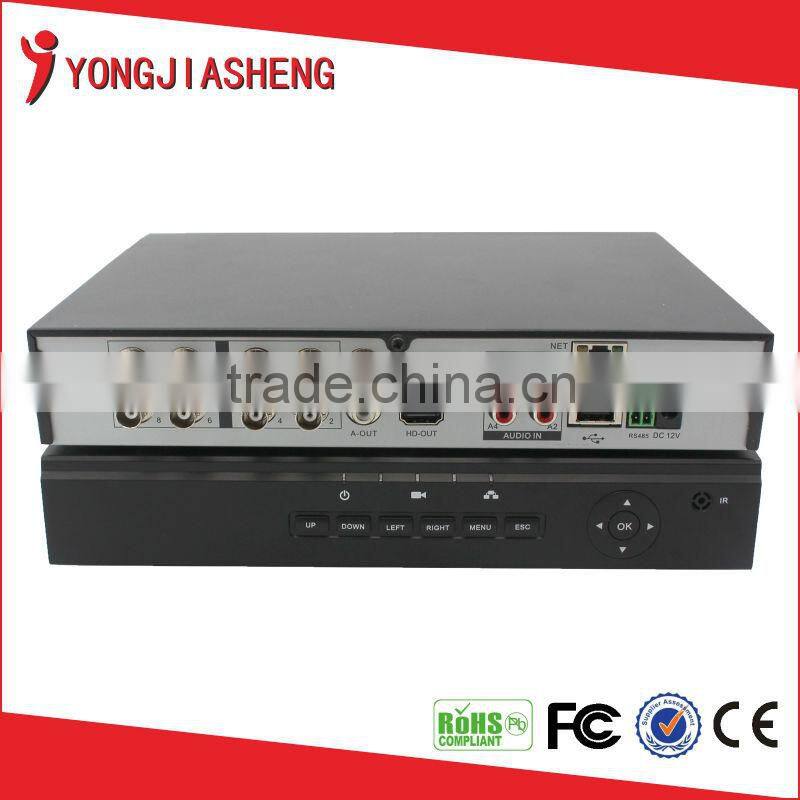

Easy to install cctv DVR 8 CH DVR H.264
1 Support PC and Smartphone playback
2 The unique data storage technology, which can record the data of 1 sec before power failure
3 Support composite streaming and video streaming encoding. Under the composite steaming encoding,
video and audio can be encoded synchronously
4 Support VGA, BNC and HDMI output
5 High definition VGA display, 800*600, 1024*768, 1280*1024
6 Support digital zoom in preview and playback
7 Support different PTZ protocols, support present tour function
8 Activates event recording automatically when alarm is triggered, and send alerts with images to designated emails
Specifications:
| Video Compression Format | H.264 |
| Video System | NTSC / PAL |
| GUI OSD | YES |
| Video Input (BNC) | 1CH BNC input (composite video signal 1Vp-p 75Ω BNC) |
| Video Output (BNC) | 1CH BNC output |
| Audio Input/Output | 4CH audio input,1CH audio output (RCA) |
| Maximum Recording Rate |
CIF:352×240 pixels with 480 IPS /352×288 pixels with 400 IPS QCIF:176×120 pixels with 480 IPS /176×144 pixels with 400 IPS |
| Image Quality Setting | Supper Best, Well, Good, Medium, Normal and Bad |
| Hard Disk Storage | Support 1 SATA HDD, up to 2TB No HDD Included |
| Alarm Input/ Output |
No |
| Multiplex Operation | Live display/record/playback/backup/network transmit |
| Recording Mode | Manual/Timer/Motion/Alarm |
| Playback Mode | Multiple slow and rapid play speeds,manual and single-frame play modes,and support of drag the sliding bar to set. |
| Backup Device | USB flash disk/USB remove HDD/Network |
| Pre-alarm Recording | Recording for 10 seconds before alarming |
| Network Protocol | TCP/IP, PPPOE , DDNS and NTP |
| Ethernet remote view | Support remote surveillance up to 10 users simultaneously |
| CMS software | YES |
| Mobile phone View | YES |
| Electronic zoom | YES |
| VGA Interface | YES |
| Log record function | YES |
| Image Tour | YES |
| IR Remote control | YES |
| Video Loss Detection | YES |
| Video Adjustable | Hue /Saturation /Contrast /Brightness adjust |
| PTZ Control | YES, built-in RS-485 port |
| USB Mouse | YES |
| Power Source | DC 12V |
| Key Lock (Password Protection) | YES |
| Size (mm) | 259(W) x44(H) x221(D) |
Shenzhen Yongjiasheng Technologies Co., Ltd. is a Surge Protector manufacturer of security products with well-equipped testing facilities and strong technical force.
With a wide Surge Protector range, good quality, reasonable prices and stylish designs, our Surge Protector products are extensively used in security industry and other industries.
Our Surge Protector products are widely recognized and trusted by users and can meet continuously changing economic and social needs.
We welcome new and old customers to contact us for future business relationships and mutual success!
1. We guarantee that all our items are "as stated" in their descriptions. We strive for 100% customer satisfaction on every sale we complete.
2. Your satisfaction and positive feedback is very important to us. Please leave positive feedback and 5 stars if you are satisfied with our items and services.
3. If you have any problems with our items or services, please feel free to contact us first before you leave negative feedback. We will do our best to solve any problems and provide you with the best customer services.
Shenzhen Yongjiasheng Technology Co.,LTD. is a direct supplier of security cameras(CCTV,network IP,and AHD),video surveillance systems,and CCTV equipment (Closed Circuit Television ) for home, business and government.In addition to CCTV cameras and systems,we also manufacture network IP cameras,AHD cameras,and hundreds of video surveillance accessories.Most of our surveillance systems include DVR viewer software for Windows and Mac PCs,as well as mobile surveillance viewer apps for iphone, ipad,and Android devices.We offer many complete systems that are pre-configured and easy to install.
Our security cameras provides the best customer service & technical support in the industry.We also strive to provide the most competitive pricing possible on surveillance systems,security cameras,surveillance equipment,and DVR cards.
