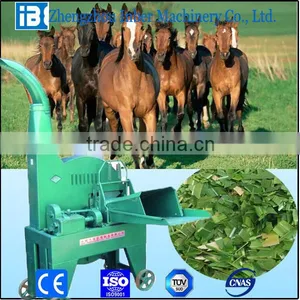

high efficiency chaff straw hay cutter
INSC series chaff haycutter is mainly used to cut crops straw/stalk(such asc orn,rice,wheat,etc),
all kinds of chaff,hay, grass(no mtter dry or fresh).
Final product:10-35mm,could adjust based on your need.
It’s a kind of agri-forage feed processing machine.It suits to feed cattle,sheep,horse,deer and
other animals. Suitable for bigger and smaller farm, feed processing factories.

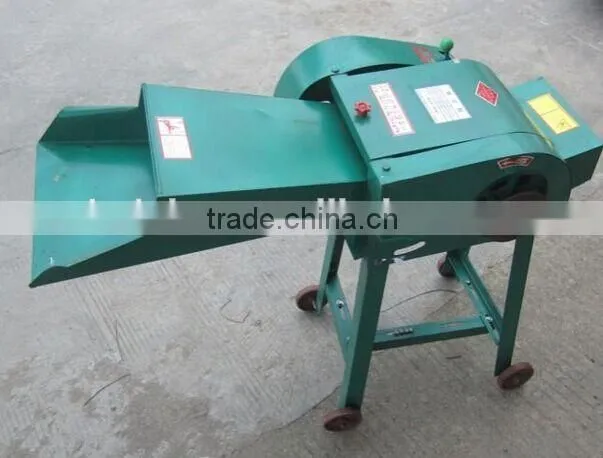

We have some different models based on capacity,following is the smallest model for personal farmer and small farms.
Model:INSC-0.4
power:2.2~3kw
voltage:220V/50HZ
capacity:400~800kg/h
rotate speed:2800r/min
size:1060*950*530mm
weight:85kg(including the motor)

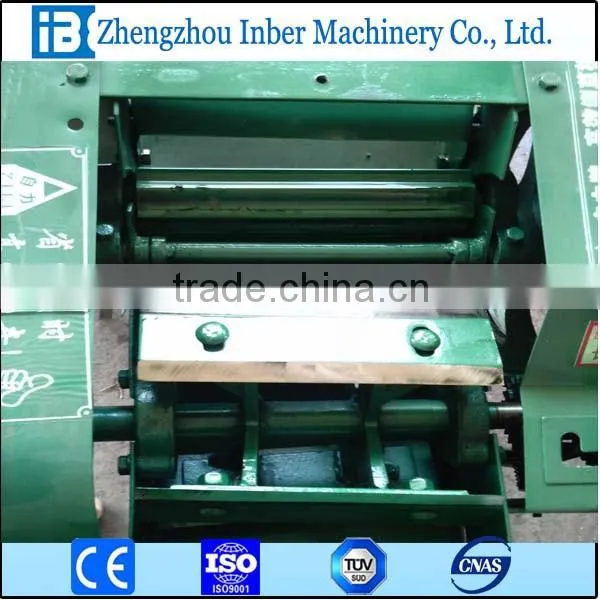

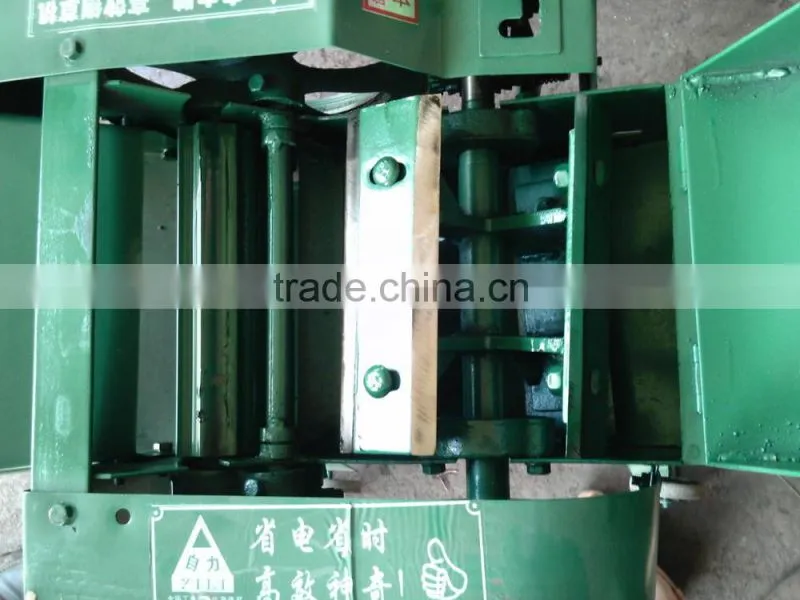

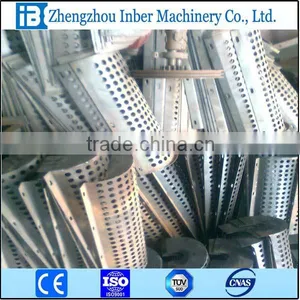

Inside feeding structure and cutter:

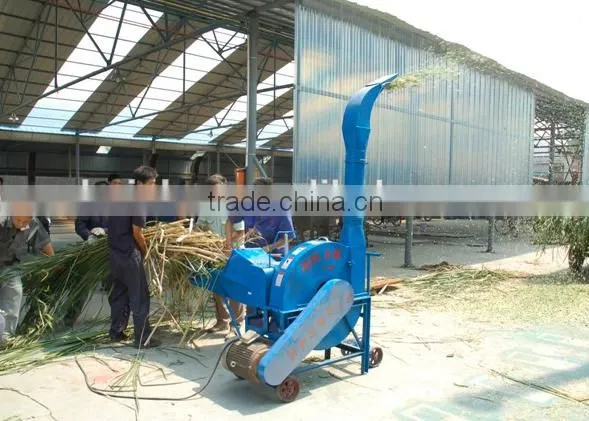

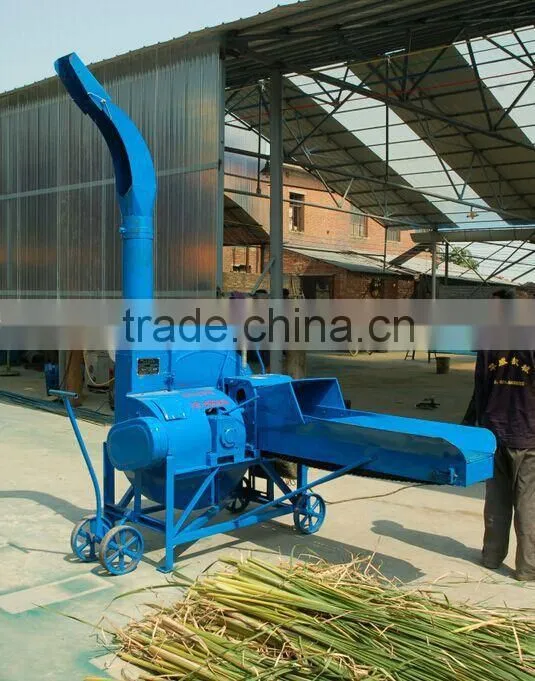

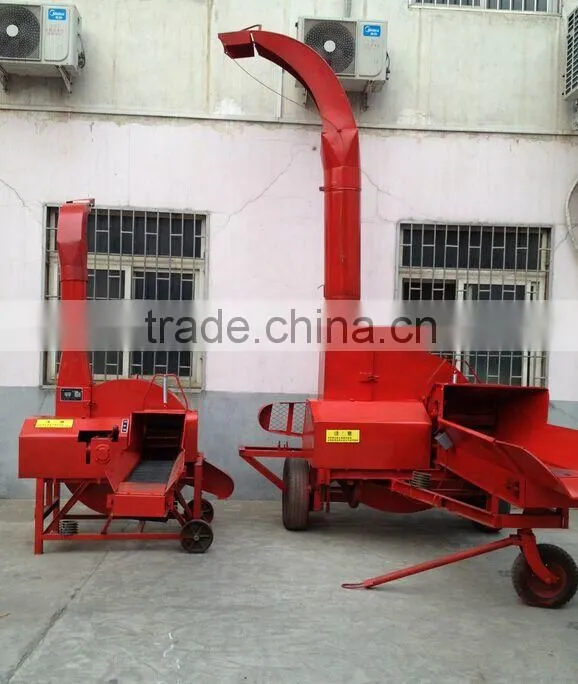

Following bigger models with long neck-discharing port, which prevent crushed feed store too much at one place, could connect with some movable transporting tool like tractors, to transport final feed for further use directly.From Model INSC-5 to INSC-12,for capcity is big, feeding conveyor is with chain, helping raw materails feeded into the machine automatically.
Model |
INSC-12 |
INSC-10 |
INSC-8 |
INSC-5 |
INSC-3 |
INSC-2 |
|||||||
power |
18.5kw |
15kw |
7.5kw |
5.5kw |
4kw |
3kw |
|||||||
Diesel engine |
≥30hp |
≥20hp |
≥15hp |
≥12hp |
≥8hp |
≥6hp |
|||||||
output |
10-15t/h |
8-10t/h |
5-8t/h |
4-6t/h |
2-4t/h |
1-3t/h |
|||||||
Ouput size |
10-35mm |
10-35mm |
10-35mm |
10-35mm |
10-35mm |
10-35mm |
|||||||
Chain conveyor |
√ |
√ |
√ |
√ |
× |
× |
|||||||
Size(m) |
2.63×2.23×4.12 |
2.62×2.14×4.11 |
2.14×1.6×2.75 |
1.73×1.57×2.31 |
1.23×1.15×1.69 |
0.8×0.76×1.16 |
|||||||

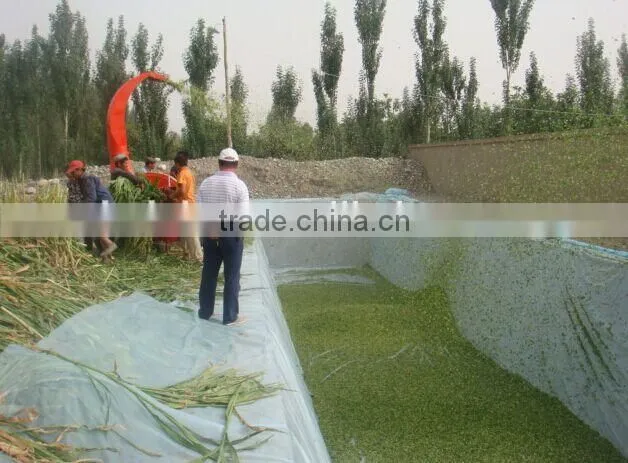

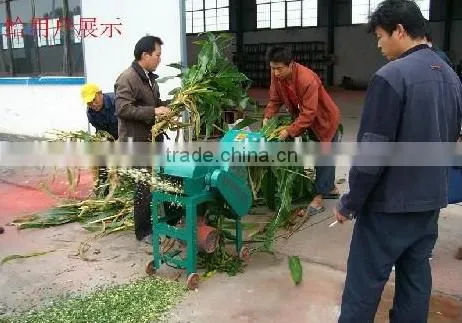

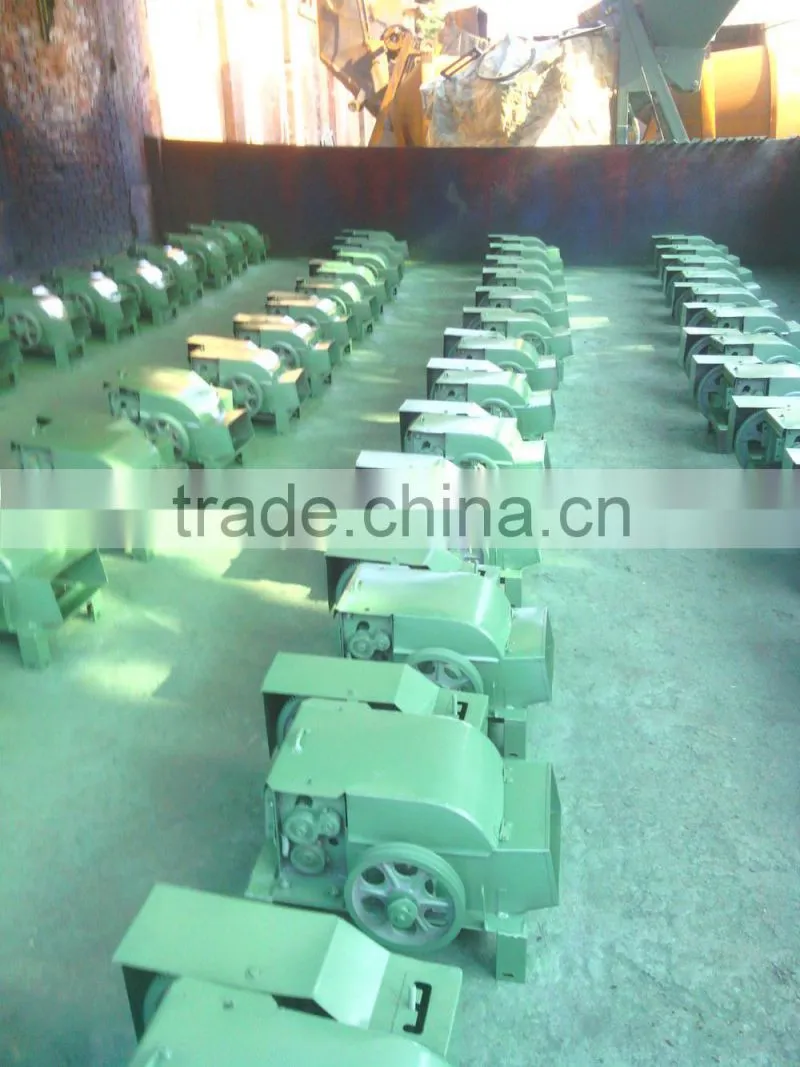

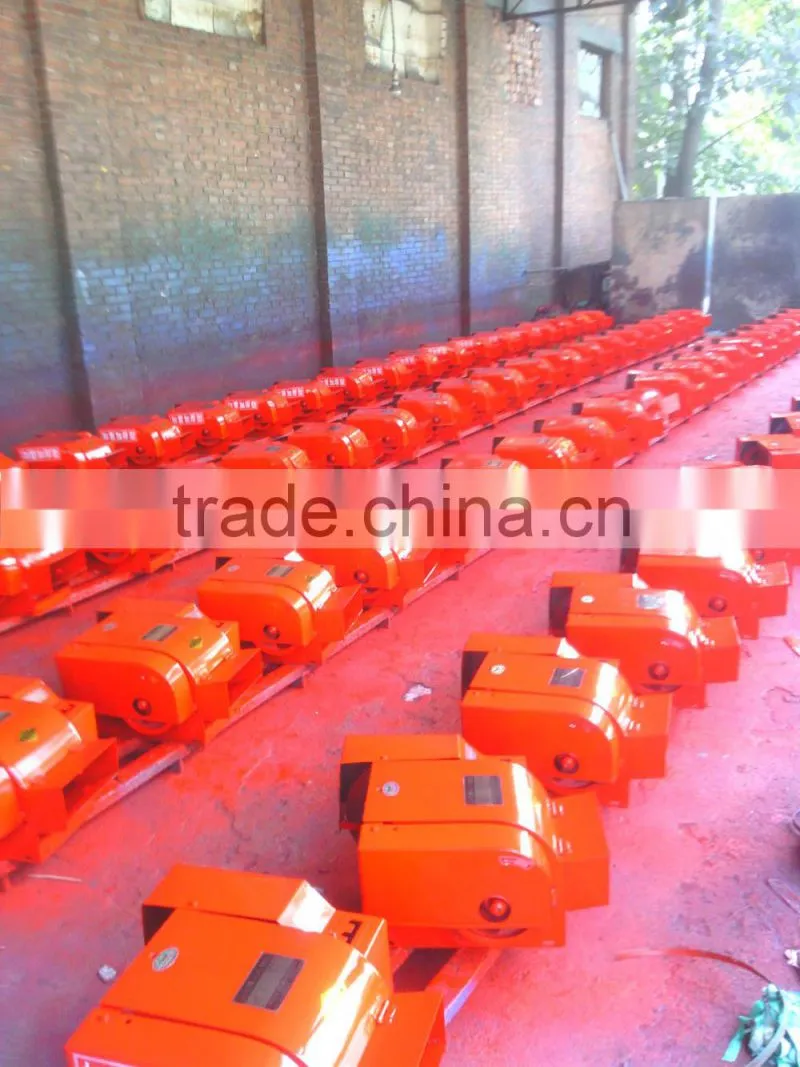

Working site:
Any interest,pls confirm following details:
1.input materials?
2.output size?
3.capacity?
4.power(prefer motor or diesel engine)?
Then i could recommend you suitable machinery more efficiency.
We could arrange shippment by sea, by air, by express.
If by express, could directly to your home. shipping time:3-5days
If by air, could ship to your destination airport,shipping time:5-7days
If by sea, could ship to your nearest seaport, shipping time is different based on your port details
Quality guarantee term is for one year. Malfunctions which are caused by machine-self and quality will be responsible for our manufacturer. Other malfunctions which caused by operation mistakes, man-made problems, etc will be responsible for clients-self.
Any interest, pls contact with me freely.
