EKEMP Handheld Wifi Communication Devices(X6)
X6 Detail:
Performance | ||
CPU |
SAMSUNG ARM Cortex A8 1GHz |
|
RAM |
Mobile DDR 256MB or 512MB |
|
OS |
Android 4.0 or Windows CE 6.0 ER3 |
|
Keyboard |
34 Keys |
|
Interface |
USB 2.0 OTG, USB Host 1.1,SPI, RS-232 |
|
Memory |
ROM |
MLC NAND Flash 512MB |
EXPANSION |
Micro SD,supports Max 32GB |
|
Bluetooth |
Class V2.1-EDR |
|
WIFI (Optional) |
802.11b/802.11g/802.11n |
|
3G |
GSM/GPRS/WCDMA HSDPA optional |
|
GPRS |
U-block NEO-6th,Support AGPS, DGPS,RTK can be customized |
|
Camera |
Vibration Motor & LED Indicator |
|
3.0Mega,ixelsAUTOFOCUS,Flashlight | ||
Functions | ||
Barcode scanner |
1DSymbol SE95(Option 2D Symbol SE4500orHoneywell IT5100) |
|
Fingerprint |
508 DPI meets (Fingerprint Module can be removable) |
|
RFID (Optional) |
HF 13.56Mhz, ISO/IEC 14443A/B,ISO15693 |
|
LF 125k,134.2khz ISO-11784/11785 | ||
UHF 860~950Mhz EPC Gen2,ISO180006 | ||
MR ZOCR Scanner |
Snapped MRZ OCR Scanner,ICAO Documents 9303 standard. |
|
Physical characteristics | ||
Power |
DC5v |
|
Battery |
4000mAH Li-ion(Rechargeable) |
|
Storage Temp. |
_20°C ~ +60°C |
|
Operation Temp |
_10°C~ +45°C |
|
Operation Hum |
5% ~ 90% |
|
Size |
192x82.0x30(mm) ;228 x 82 x 30(mm) (with fingerprint ) |
|
Weight |
around 300g(without fingerprint);330g (with fingerprint) |
|
Accessories |
1Batterym,1 Stylus with hand strip,1 USB cable,1 AC charger, Optional,S232 cable,Cradle,Carcharger,USBhost Ethernet |
|
Endurance |
Sleeping |
More than 5days |
Working |
More than 8 hours |
|
Recharge Time |
around 5 hours |
|
Certification |
CE UN38.3 RoHS CCC |
|
Sealing Standard |
IP65 |
|
Drop Durability |
Withstand1.5meterdrop on to concrete |
|
Ekemp wifi devices Solutions:
1) Hotel/Supermarket/Retail/Kiosk/Restaurant/Convenience store management.
2) Money Transfer, E-Wallet, E-voucher, E-top-up, Instant Mobile Remittance.
3) Travel & Ticket billing for Air Ticket, Railway, Subway, Taxi, Bus, Movie.
4) Bill Payment in Electricity, GAS, Insurance, Charity.
5) Prepaid Recharge for Gift card and Loyalty card.
6) Lottery, Surveying, and other applications.

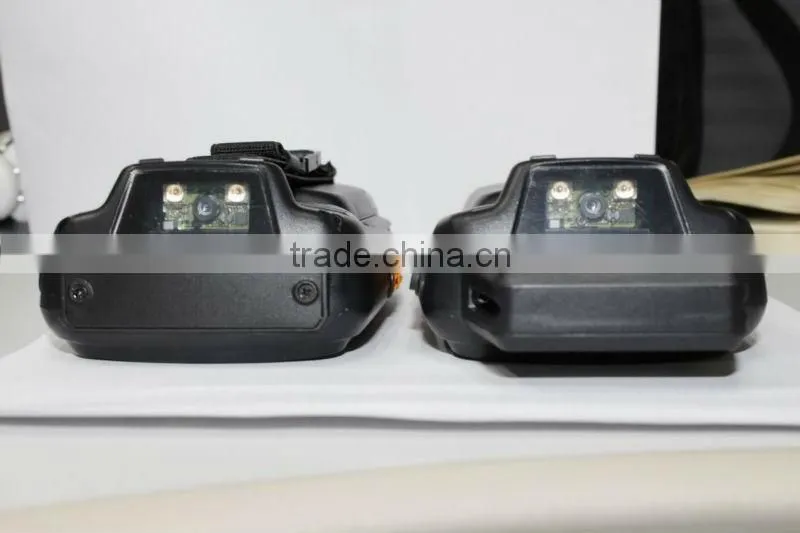

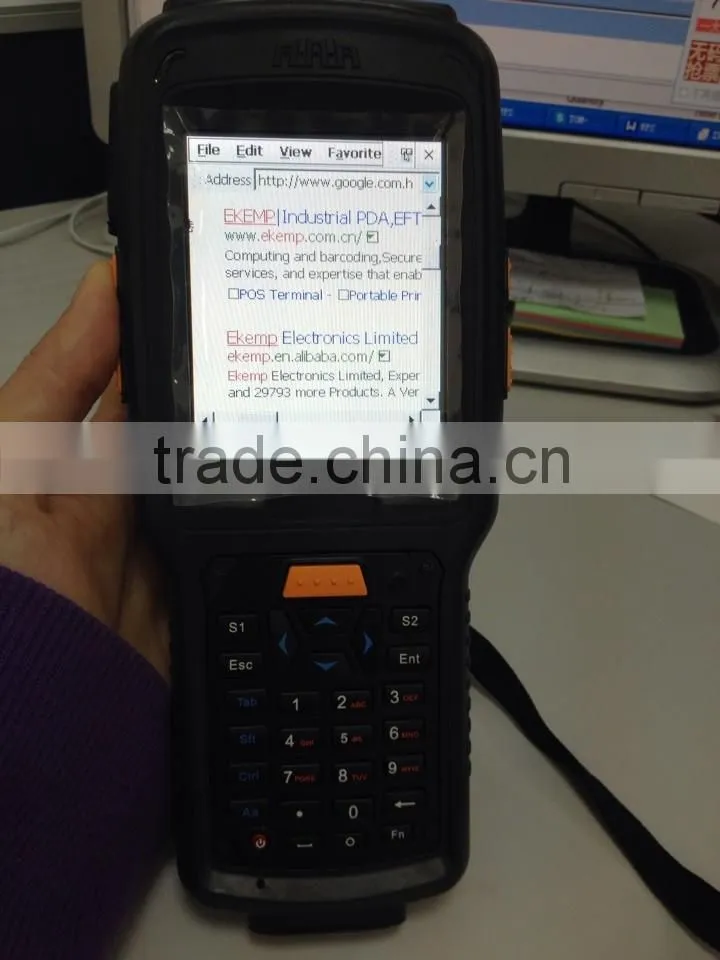

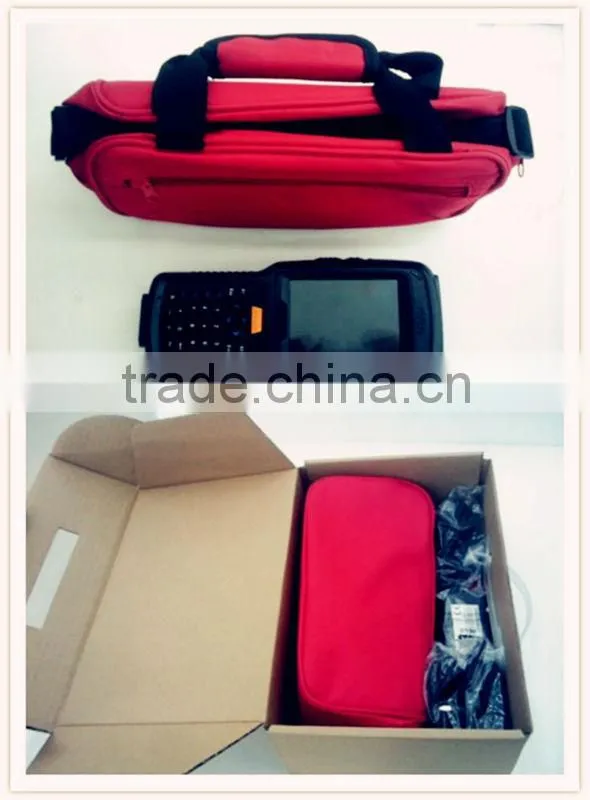

Pictures of Ekemp Handheld Wifi Communication Devices:
