Farm Movable Sprinkling Equipment Made in China
- qingdao
- T/T Money Gram Credit Card PayPal
You May Like
Product Details
| Condition | New | Place of Origin | Henan, China | |
| Brand Name | inber | Model Number | INYG | |
| Material | Metal | Feature | center pivot and linear type | |
| Diameter | 16.5 cm | After-sales Service Provided | Engineers available to service machinery overseas |
Product Description

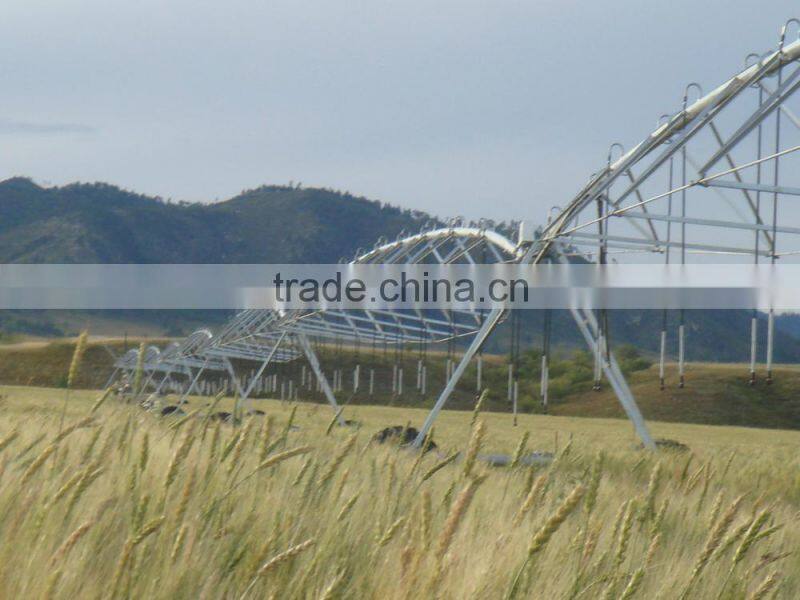

Farm center pivor irrigation system
It realize labor savings, power savings and water savings plus the improved crop yields of
automated center pivot irrigation to small acreage applications. Developed for big areas to
about 112ha., and where low ground pressure is essential, suitable for wide application.
like crop farmland, desert,grassland,vegetable plots, sploing sites,etc
The systems are equipped with impact sprinkler with uniformity coefficient more than 85%, and can be used for the uniform application of chemicals and fertilizers. The systems can be operated on fields with slopes of up 25%. The important structural components of the systems are all hot-dipped galvanized for 30 year's anticorrosion warranty.
specification | Technicial prameters |
Power supply | 6*1.1kw/380v/50hz/3ph |
Main tube type | Φ165×3.25 high high tensile steel,hot dip galvanization |
Connecting flange thickness | 10mm |
Sprinkling tube diameter | 22mm |
Inlet pressure | 0.25~0.35Mpa |
End pressure | 0.15MPa |
Voltage | 380V,50HZ |
Min ground clearance | 2.6m |
Max ground clearance | 4.5m |
Sprinkler ground clearance | 1.2m |
sprinkler uniformity | ≥85% |
Max grade ability | 20% |
Tire type | 14.9×24-8Hot dip galvanized steel |
Wheel distance | 3.85m(center distance) |
Sprinkler | D3000 Low pressure nozzle |
Sprinkling diameter | 6m |
Controling tower box | France“Schneider”,Japan “Omron” Electrical components with safety protection function |
Motor and reducer | Miter gear box,waterproof motor,speed ratio 40:1 |
Wheel gear reducer | large torque,Worm gear deceleration on both ends of the shaft design,speed ratio 52:1 |
Spare parts:

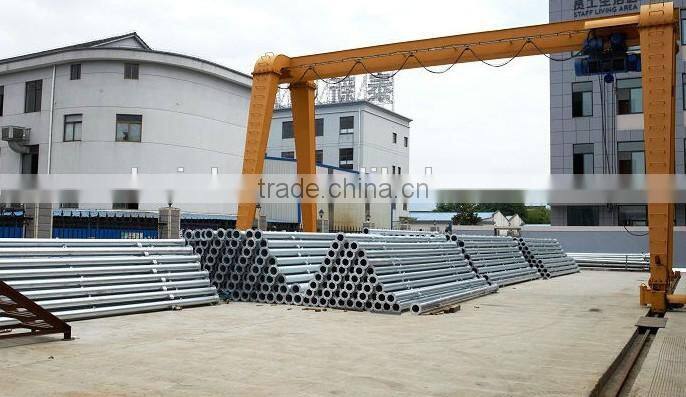

Main irrigation tube: high high tensile steel,hot dip galvanization ,won't rust within 30years.

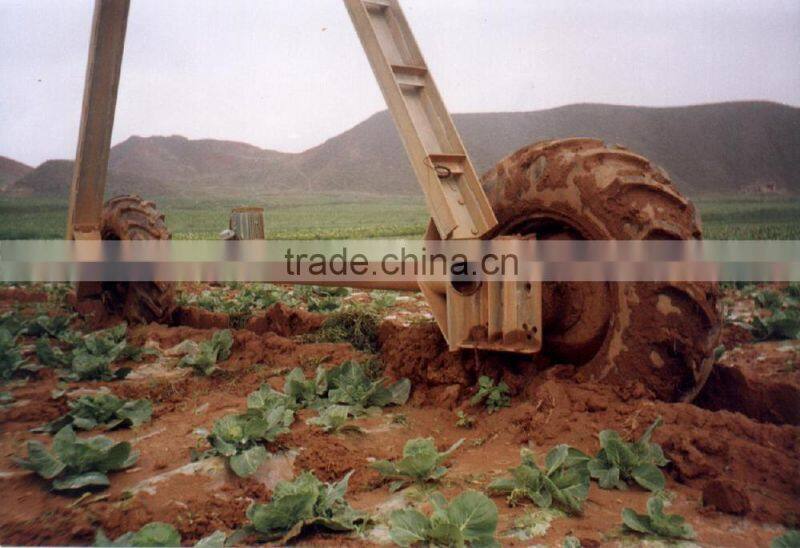

Tyre: 14.9×24-8Hot dip galvanized steel,even no problem walking in muddy fields.

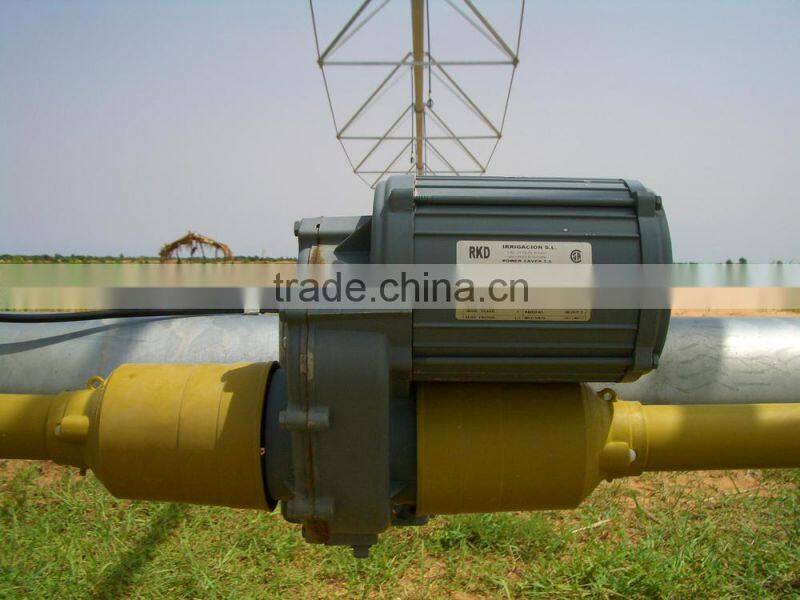

Reducer:Transport powder from teh motor to the wheel, drive the wheel move uniformly.

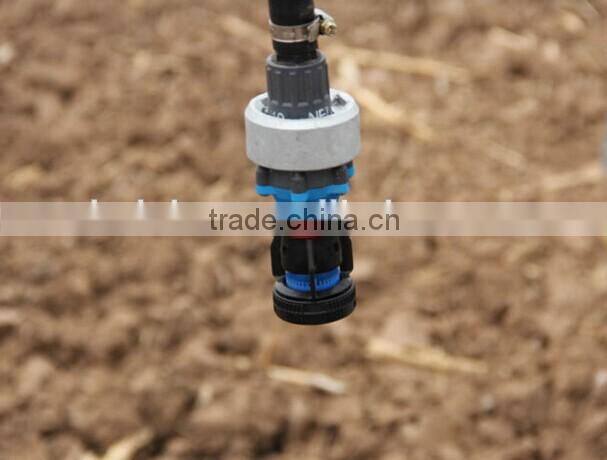

Sprinkler:you could adjust the height from the sprinkler to the field based on your field crops.
Sprinkling diameter:6m.

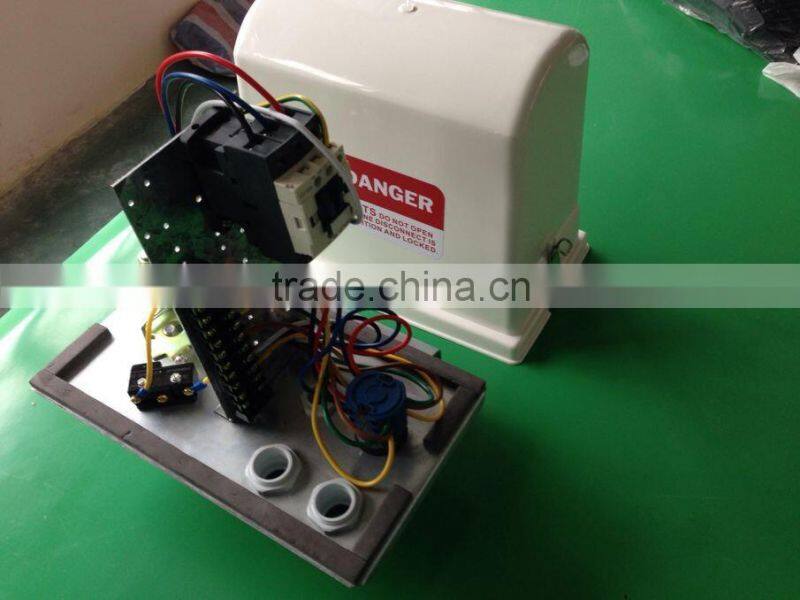

controller:Each span has one controller, to control teh wheel movement.

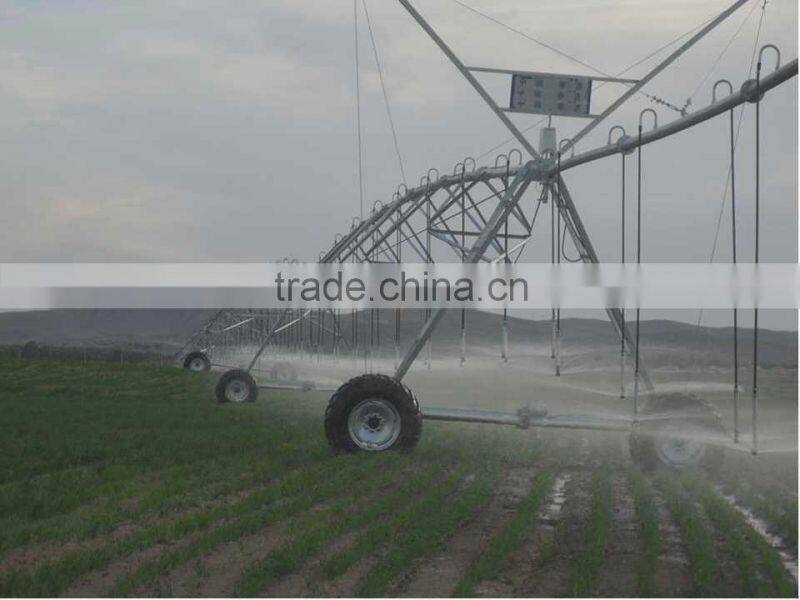

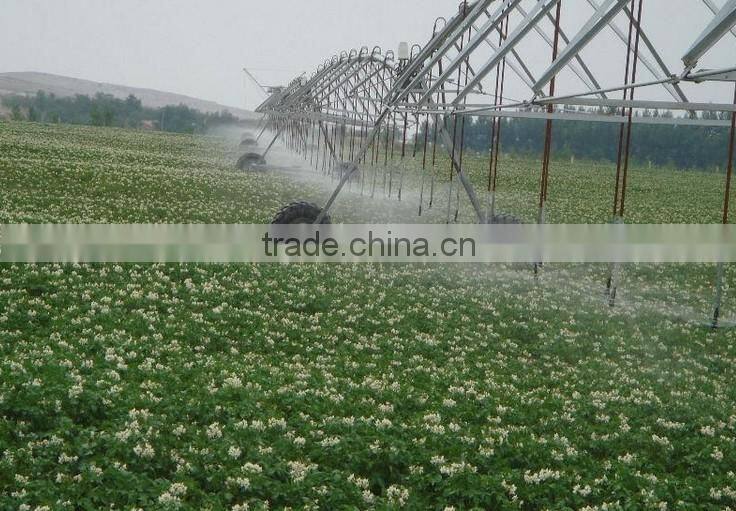

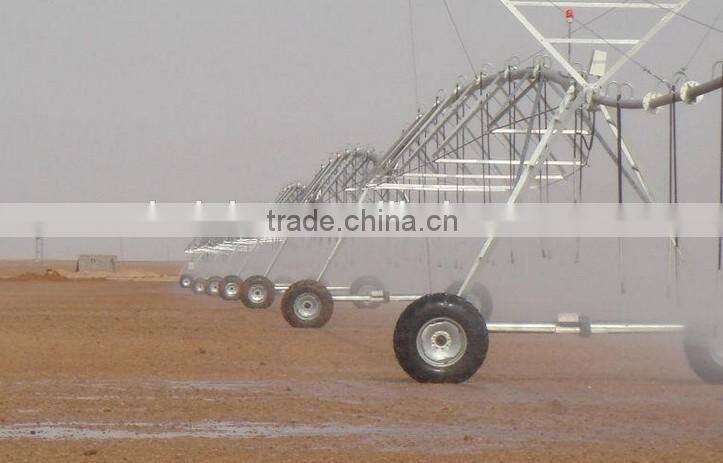

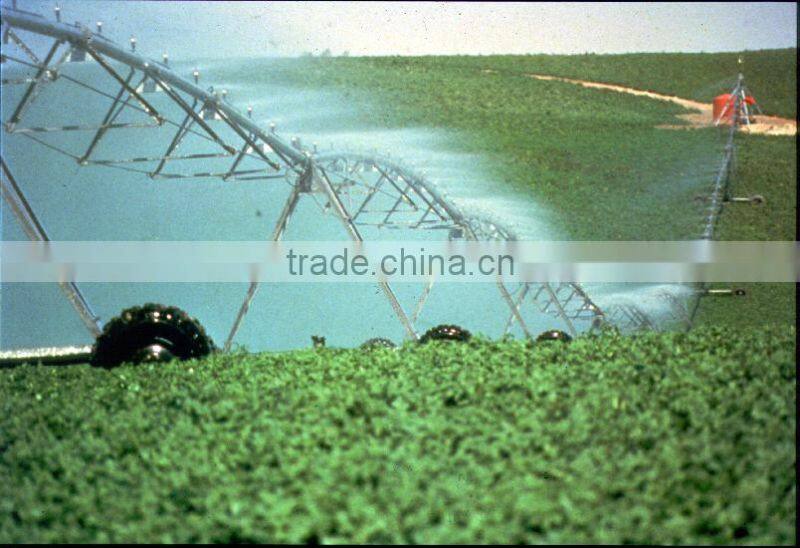

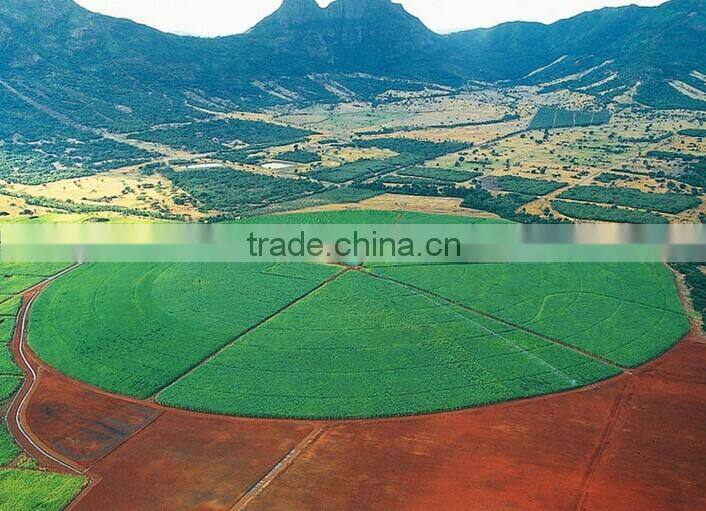

effect picture
We have two types machine:
one if center pivot type,perfect for round fields.
other is linear type.perfect for rectangular fileds.
If you have any interest,pls confirm following items first:
1)Your field size and shape?
If round type, field diamter,if rectangular type, width and length?
2)Your crops details(specially need know the height)?
3)Where is your water suoply?also from where(river or well)?
Then i could recommend you suitable machinery more efficiency.

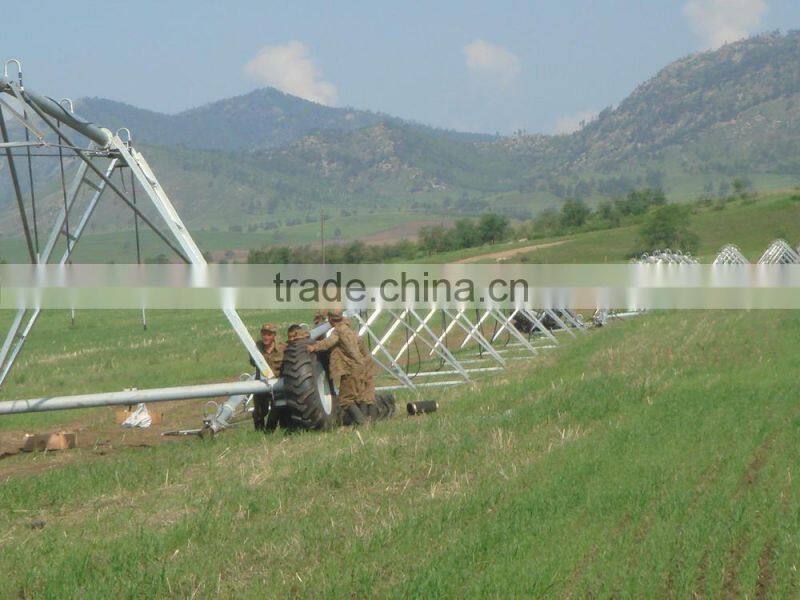

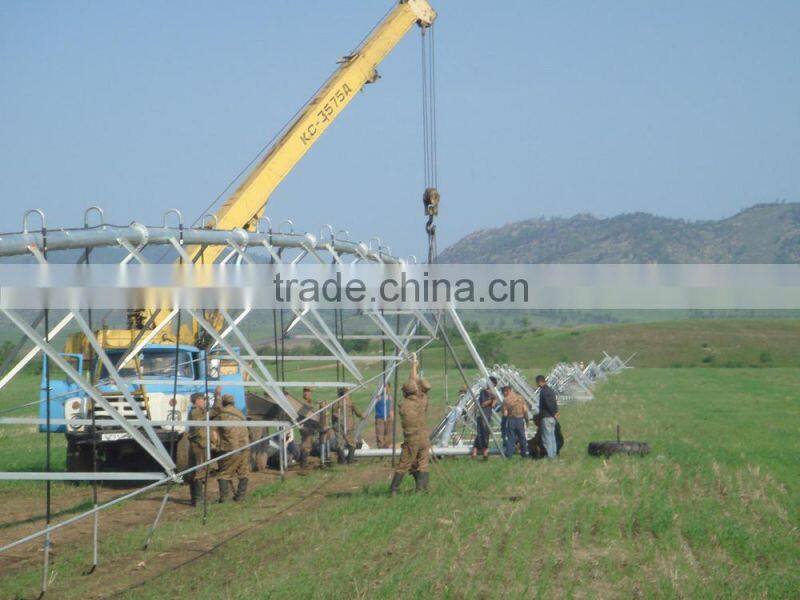

Because this sytem is long, when shipping, we separate it into many spare parts, need our engineer go to your working site for installation instruction.
Quality guarantee term is for one year. Malfunctions which are caused by machine-self and quality will be responsible for our manufacturer. Other malfunctions which caused by operation mistakes, man-made problems, etc will be responsible for clients-self.
30% By T/T asdeposit to start order.
70% as balance when offering copy B/L.
Any interest,pls contact with me freely.
