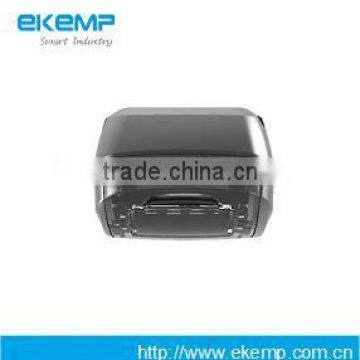

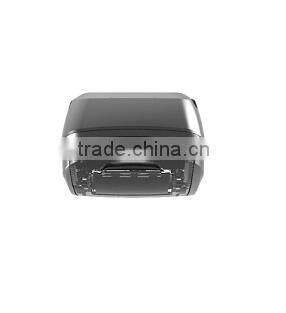

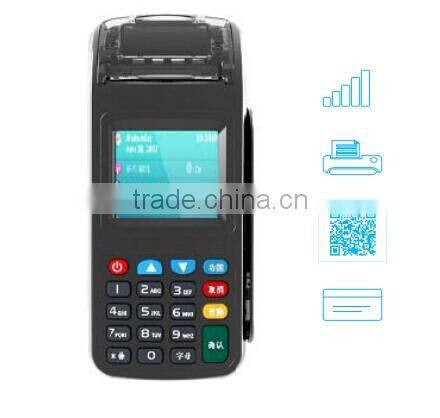

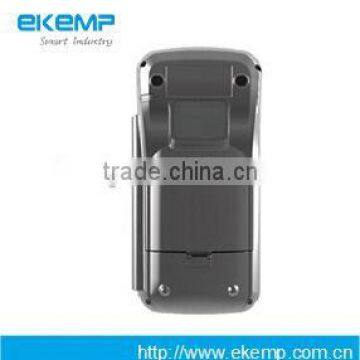

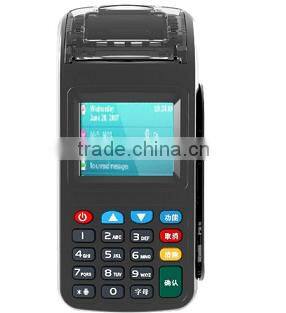

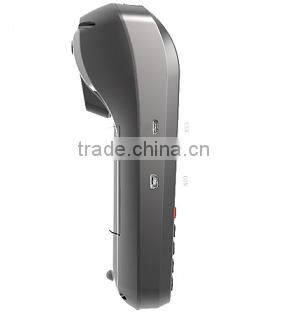

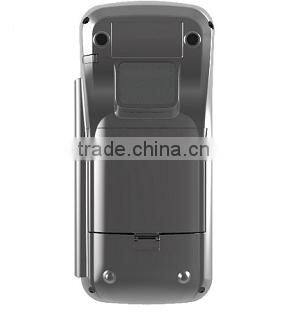

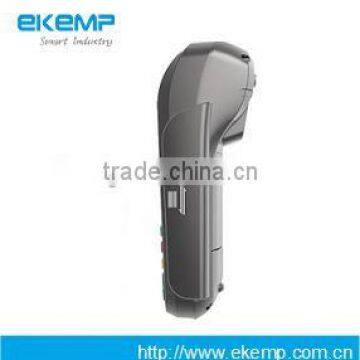

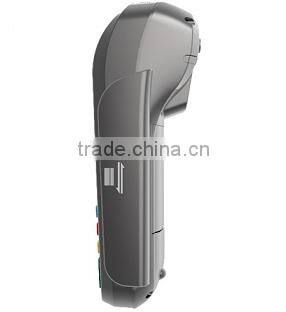

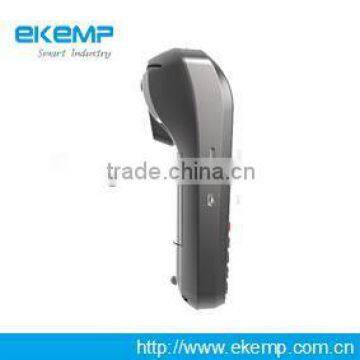

Portable Lottery Vending POS Machine
with Barcode Scanner and Thermal Printer
1.YK600 is a multifunctional payment terminal which was equipped with the barcode scanner,
thermal printer, IC card, magnetic stripe card reader.
2.As a safe and intelligent equipment,YK600 is specially designed for mobile payment.
3.The design of YK600 combines the screen with keyboard key, esure the convenient operation for customer.
4.Many communication methods for real-time data transmission,such as GPRS, WiFi, bluetooth are supported by YK600.
Features:
1. 32 bit secure CPU ARM Core processor makes the data processing very fast.
2. Multiple communication method, such as GPRS ,WIFI 8, bluetooth .
3. Internal 1D and 2D/QR code scanner for data collection .
4. Magnetic stripe card reader makes the payment safe and effective.
5. Integrated with 58mm high speed thermal printer makes receipt printing easily.
6.Built-in contactless card reader comply with 13.56MHZ, ISO14443 Type A/B, NFC,etc.
Specifications:
Item | Technical Parameter |
CPU | 32 bit secure CPU ARM Core |
Memory | 8 MB FLASH, 256KB SRAM |
LED Display | 2.4’ inch TFT,320*240,LED high brightness back light,supports digital signatures |
keyboard | 19 keys,10 numeric keys/letter keys,8 function keys,1 ON/OFF button |
Magnetic stripe card reader | Meet standard ISO7811,ISO7812,1/2/3 tracks,supports bi-directional swiping |
IC card reader | Support one IC card slot,meet ISO 7816,PBOC3.0,EMV standard |
Contactless card reader | supports 13.56MHZ, ISO14443 Type A/B, NFC (optional) |
SAM/SIM slot | One PSAM slot ,meet standard ISO 7816,one SIM slot |
Safety | Hardware Encryption,pay with ANSI X9.8/ISO9564,ANSI X9.8/ISO8731,3DES,RSA,etc. |
Thermal Printer | High speed and low noise thermal printer ,paper width: 58MM, ,outside diameter: 30mm |
Bar code Scanner | Internal 1D bar code or 2D code scanner ( optional) |
communication | GPRS wireless communication(standard),WIFI/Bluetooth (optional) |
Peripheral Interface | One MIC USB(For charging),one MINI USB (For serial communication) |
Power Adapter | Input :100~240VAC,50Hz/60Hz;Out put:5.0VDC,2A |
battery | Li-ion battery,2600mah,3.7V |
Programming language | Standard C,supports secondary development |
Dimension | 178mm×82mm×59mm(length×width×height) |
Weight | 300g |
Work environment | Temperature 0°C~50°C (32°F~122°F),relative humidity 10%~90% (Non - Condensing) |
Storage environment | Temperature -20°C~60°C (-4°F~140°F),relative humidity 5%~95% (Non - Condensing) |
Founded in 2006,EKEMP Electronics Ltd. is hi-tech enterprise.and focusing on R&D,Manufaturing of Industrial Mobile computing Terminal,POS terminal, Biometric Identify products,and software system development,etc
EKEMP is professional on research and development the Barcode Technical ,Wireless RFID technical,electronics payment,Industrial mobile data collection terminal, applicated terminal collection together real-time message with enterprise backstage system, business processing,Lottery system,Logistics and Supply-Chain management system,Public Bicycle Hiring System in all.
We owned professional applicated consultancy and abundant technical force. Over 30 engineers and designers have bechalor and master degrees in telecom, electronics, and mechanical engineer.Our company devoted in created group which is study innovative. Cooperate inseparably, harmonious development. Our company are the top of this industry.
Why Choose EKEMP ?
1.Q:Are you manufacturer?
A:Yes.Our company factory in Shenzhen.
2.Q:Can you provide application software for the hardware?
A:We provide free SDK and User manual of all API to support your development or programming.
3.Q:What is the warranty?
A:The warranty time is 1 year without man-made damage.
4.Q:Does the device have the language default as English?
A:Of course, our device supports multilanguage such as English,Spanish, Portuguese ,French, German,Polish,Japanese, Russian and so on.
5. Q: what are the payment terms?
Flexible payment terms. T/T, Western Union, Paypal
