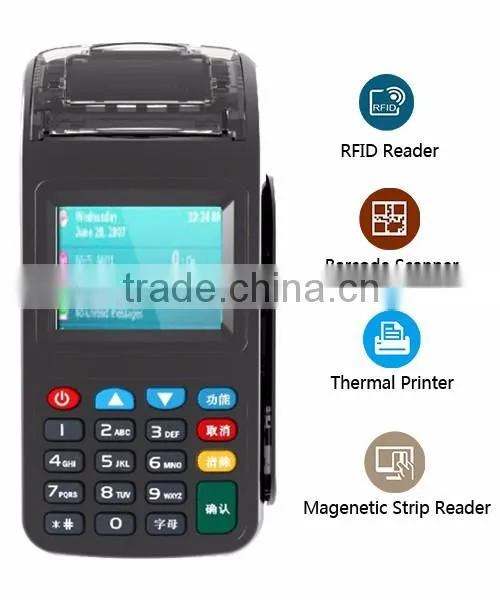

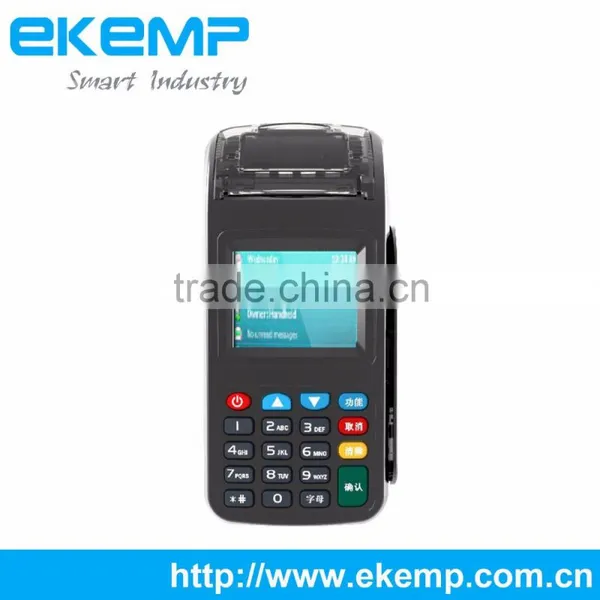

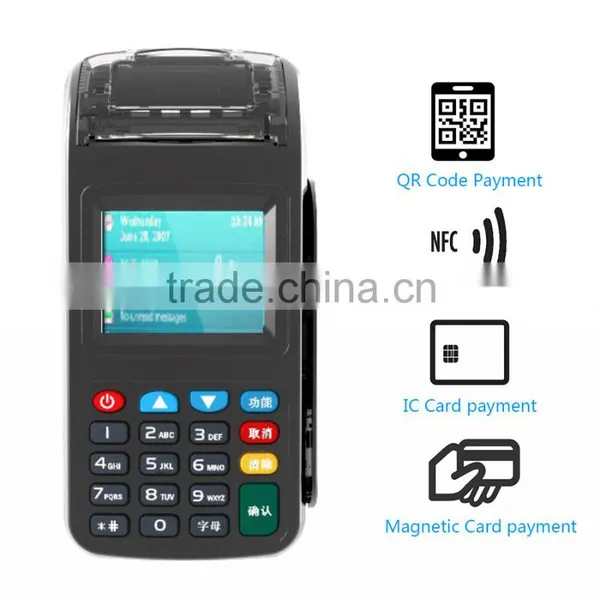

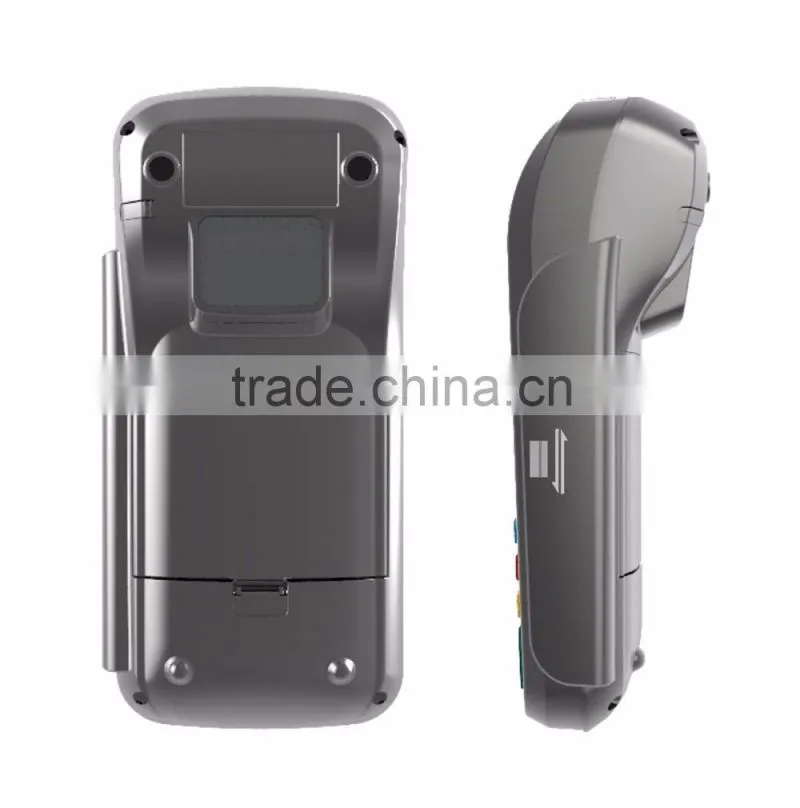

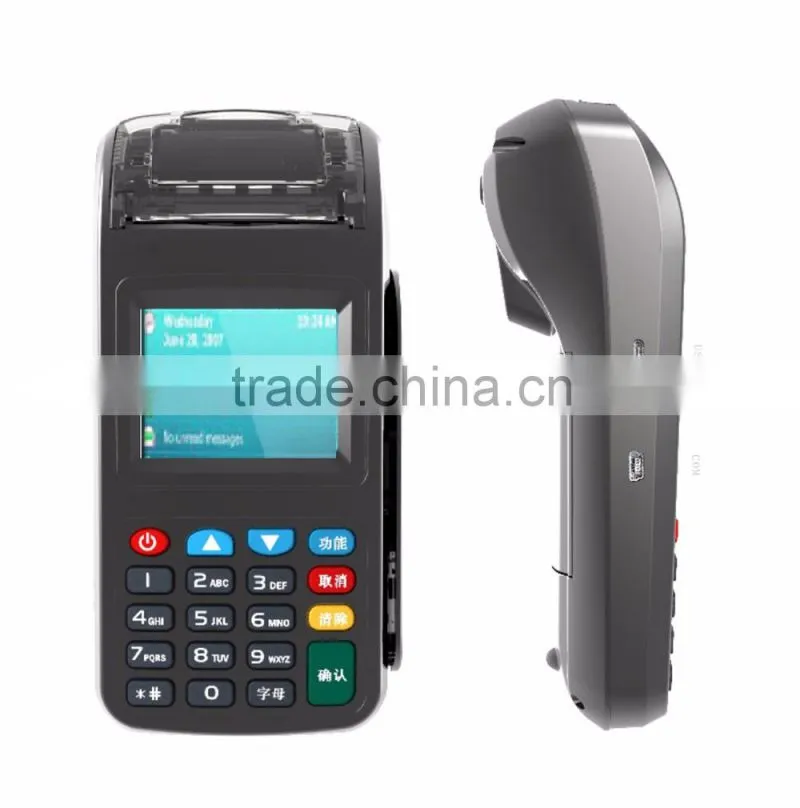

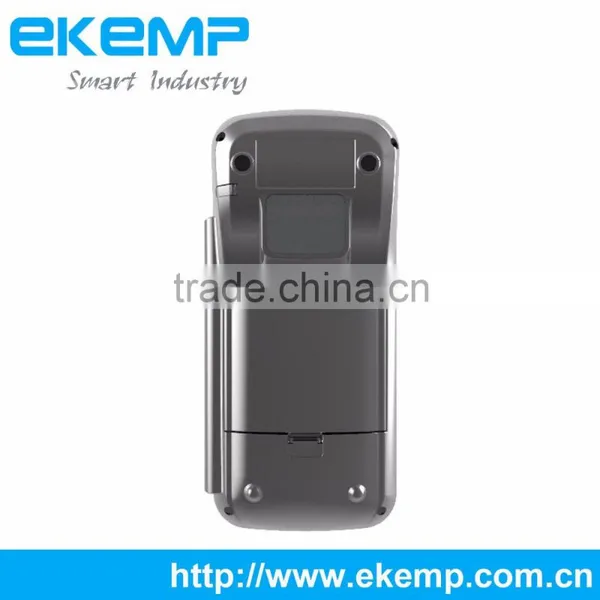

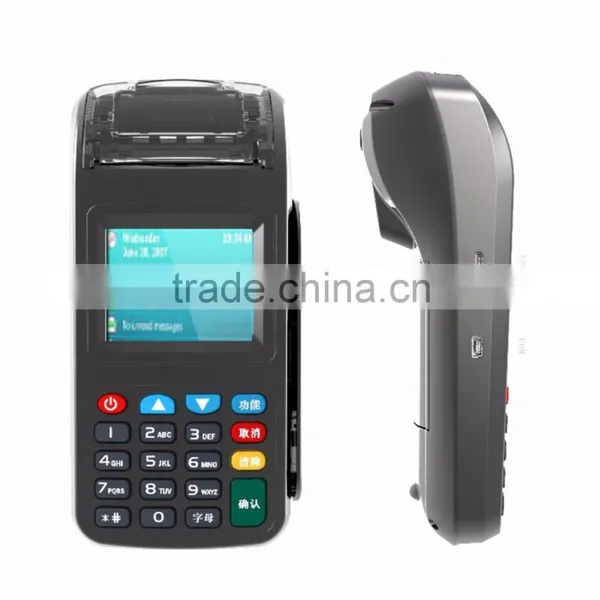

EKEMP YK600 PDA With Buit-in Printer/Lottery POS Ticket Printing Machine
EKEMP YK600 PDA With Buit-in Printer/Lottery POS Ticket Printing Machine
Brief introduction:
YK600 is a multifunctional POS terminal
1. Equipped with the 1D/2D Barcode Reader
2. Built-in 58mm Thermal Printer
3. Credit Card Swipe Machine
4. Safe and intelligent equipment
5. Specially designed for mobile payment
6. The design combines the screen with keyboard key, esure the convenient operation for customer.
7. Many communication methods, real-time data transmission,such as GPRS, WiFi, Bluetooth.
Features:
1. 32 bit secure CPU ARM Core processor .
2. Multiple communication method, such as GPRS ,WIFI 8, bluetooth .
3. Internal 1D and 2D/QR Barcode Reader .
4. Lottey Ticket Printing Machine with buit-in Printer
5. Integrated with 58mm high speed thermal printer makes receipt printing easily.
6. Built-in contactless card reader comply with 13.56MHZ, ISO14443 Type A/B, Mifare,
NFC,etc.
EKEMP YK600 PDA With Buit-in Printer/Lottery POS Ticket Printing Machine
Memory
9 MB FLASH, 256KB SRAM
LED Display
2.4’ inch TFT,320*240,LED high brightness back light, supports digital signatures
Keyboard
19 keys,10 numeric keys/letter keys,8 function keys,1 ON/OFF button
Magnetic stripe card reader
Meet standard ISO7811,ISO7812,1/2/3 tracks, supports bi-directional swiping
IC card reader
Support one IC card slot,meet ISO 7816,PBOC3.0,EMV standard
Contactless card reader
Supports 13.56MHZ, ISO14443 Type A/B, Mifare, NFC (optional)
SAM/SIM slot
One PSAM slot ,meet standard ISO 7816,one SIM slot
Safety
Hardware Encryption,pay with ANSI X9.8/ISO9564,ANSI X9.8/ISO8731, 3DES,RSA,etc.
Thermal Printer
High speed and low noise thermal printer, paper width: 58MM, outside diameter: 30mm
Bar code Reader
Internal 1D bar code or 2D Barcode Reader ( optional)
Communication
GPRS wireless communication(standard),WIFI/Bluetooth (optional)
Peripheral Interface
One MIC USB(For charging),one MINI USB (For serial communication)
Power Adapter
Input :100~240VAC,50Hz/60Hz; Out put: 5.0VDC,2A
Battery
Li-ion battery,2600mah,3.7V
Programming language
Standard C,supports secondary development
Dimension
178mm×82mm×59mm(length×width×height)
Weight: 300g
Work environment
Temperature 0℃~50℃ (32℉~122℉),
relative humidity 10%~90% (Non - Condensing)
Storage environment
Temperature -20℃~60℃ (-4℉~140℉),
relative humidity 5%~95% (Non - Condensing)
EKEMP YK600 PDA With Buit-in Printer/Lottery POS Ticket Printing Machine
Application
- Instant Mobile Remittance
- Lottery Ticket Printing Machine
- Prepaid Recharge for Gift card and Loyalty card
- Small amount Money Transfer/E-Wallet/ E-voucher/E-topup
- Travel & Ticket billing for Air Ticket/Railway/Subway/Taxi/Bus/Movie
- Hotel/supermarket/retail/Kiosk/restaurant/convenience store management
Founded in 2006, EKEMP Electronics Ltd. is hi-tech enterprise.and focusing on R&D,Manufaturing of Industrial Mobile computing Terminal,POS terminal, Biometric Identify products,and software system development,etc
EKEMP is professional on research and development the Barcode Technical, Wireless RFID technical, electronics payment, Industrial mobile data collection terminal, applicated terminal collection together real-time message with enterprise backstage system, business processing, Lottery system, Logistics and Supply-Chain management system, Public Bicycle Hiring System
in all.
We owned professional applicated consultancy and abundant technical force.
Over 30 engineers and designers have bechalor and master degrees in telecom, electronics,
and mechanical engineer.
Our company devoted in created group which is study innovative.
Cooperate inseparably, harmonious development. Our company are the top of this industry.
EKEMP Succeful Cases
EKEMP YK600 PDA With Buit-in Printer/Lottery POS Ticket Printing Machine
