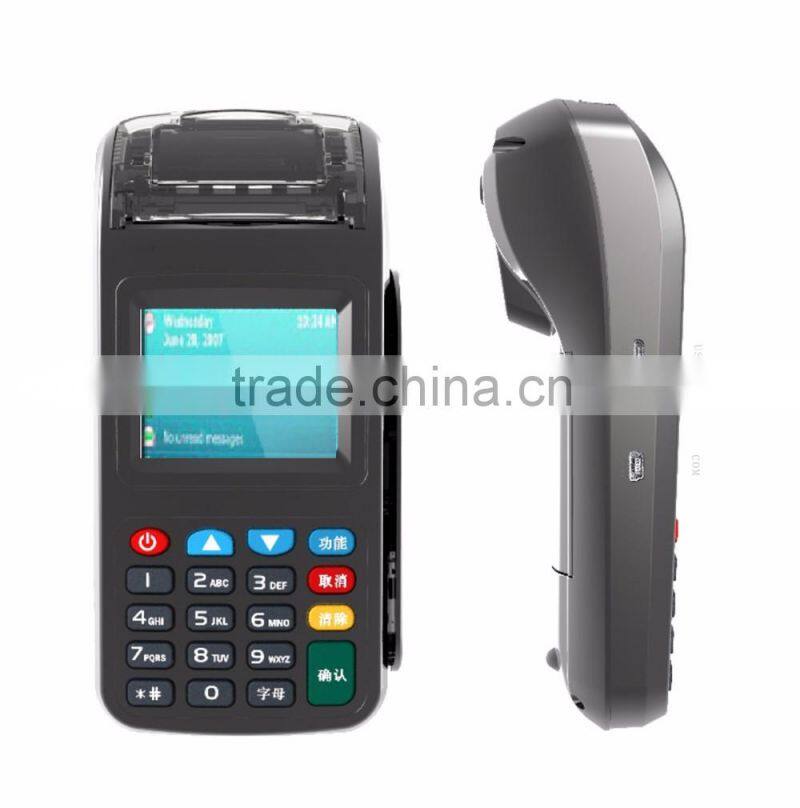

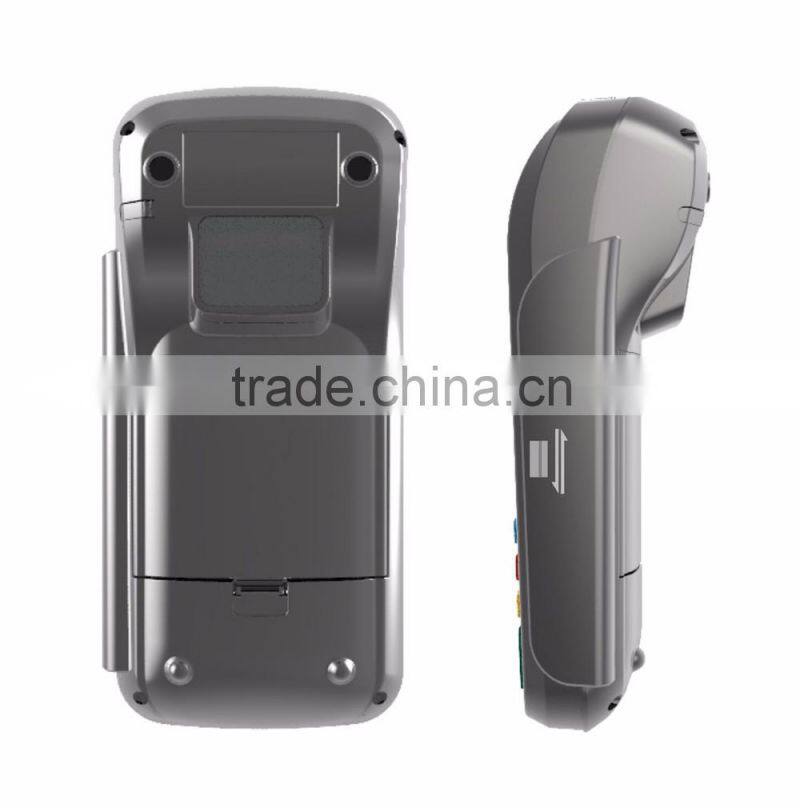

EKEMP YK600 Ethernet POS Printer Label Code 2016 for Lottery System Development

EKEMP YK600 Ethernet POS Printer Label Code 2016 for Lottery System Development

Brief introduction:

YK600 Ethernet POS Printer Label Code 2016 for Lottery System Development

Memory

9 MB FLASH, 256KB SRAM

LED Display
2.4’ inch TFT,320*240,LED high brightness back light, supports digital signatures

Keyboard
19 keys,10 numeric keys/letter keys,8 function keys,1 ON/OFF button

Magnetic stripe card reader
Meet standard ISO7811,ISO7812,1/2/3 tracks, supports bi-directional swiping

IC card reader
Support one IC card slot,meet ISO 7816,PBOC3.0,EMV standard

Contactless card reader
Supports 13.56MHZ, ISO14443 Type A/B, Mifare, NFC (optional)

SAM/SIM slot
One PSAM slot ,meet standard ISO 7816,one SIM slot

Safety
Hardware Encryption,pay with ANSI X9.8/ISO9564,ANSI X9.8/ISO8731, 3DES,RSA,etc.

Thermal Printer
High speed and low noise thermal printer, paper width: 58MM,  outside diameter: 30mm

Bar code Reader
Internal 1D bar code or 2D Barcode Reader ( optional)

Communication
GPRS wireless communication(standard),WIFI/Bluetooth (optional)

Peripheral Interface
One MIC USB(For charging),one MINI USB (For serial communication)

Power Adapter
Input :100~240VAC,50Hz/60Hz;  Out put: 5.0VDC,2A

Battery
Li-ion battery,2600mah,3.7V

Programming language
Standard C,supports secondary development

Dimension
178mm×82mm×59mm(length×width×height)

Weight:  300g

Work environment
Temperature 0℃~50℃ (32℉~122℉),
relative humidity 10%~90% (Non - Condensing)
Storage environment
Temperature -20℃~60℃ (-4℉~140℉),
relative humidity 5%~95% (Non - Condensing)

     EKEMP YK600 Ethernet POS Printer Label Code 2016 for Lottery System Development

   Application

•  Instant Mobile Remittance
•  For Lottery System Development
•  Prepaid Recharge for Gift card and Loyalty card
•  Small amount Money Transfer/E-Wallet/ E-voucher/E-topup
•  Travel & Ticket billing for Air Ticket/Railway/Subway/Taxi/Bus/Movie
•   Hotel/supermarket/retail/Kiosk/restaurant/convenience store management

Founded in 2006, EKEMP Electronics Ltd. is hi-tech enterprise.and focusing on R&D,Manufaturing of Industrial Mobile computing Terminal,POS terminal, Biometric Identify products,and software system development,etc

EKEMP is professional on research and development the Barcode Technical, Wireless RFID technical, electronics payment, Industrial mobile data collection terminal, applicated terminal collection together real-time message with enterprise backstage system, business processing, Lottery system, Logistics and Supply-Chain management system, Public Bicycle Hiring System

in all.

We owned professional applicated consultancy and abundant technical force.

Over 30 engineers and designers have bechalor and master degrees in telecom, electronics,

and mechanical engineer.

Our company devoted in created group which is study innovative.

Cooperate inseparably, harmonious development. Our company are the top of this industry.

EKEMP YK600 Ethernet POS Printer Label Code 2016 for Lottery System Development

Welcome Your Inquiry!
