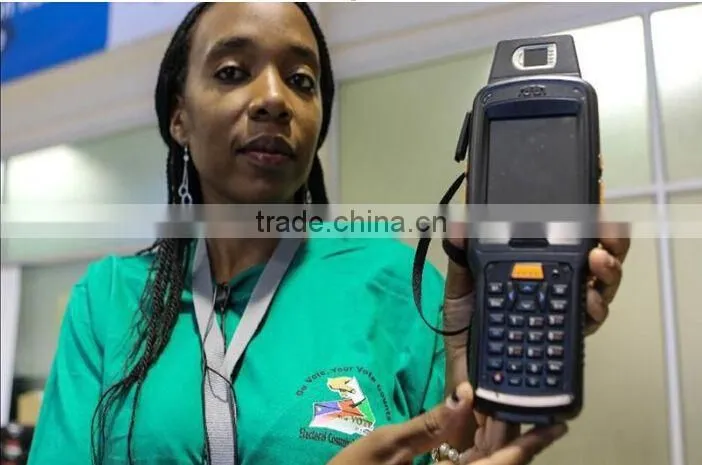

Help CenterGood Quality Touch Screen Handheld PDA/POS Barcode Scaner
Related Products
-
3.5 Inch Touch Screen Police Use Handheld Passport Scanner With Fingerprint ReaderUS$ 350 - 420MOQ: 1 Unit -
Android Touch Screen Handheld Computer With MRZ OCR Scanner and Passport ReaderUS$ 350 - 420MOQ: 1 Unit
-
EKEMP Handheld PDA/Android Data Collector/RFID Reader With Fingerprint ReaderUS$ 198 - 320MOQ: 1 Unit
-
Warehouse Barcode Ccanner With GPRS WIFI All in One Handheld PDAUS$ 350 - 420MOQ: 1 Unit
-
Andriod WinCE 6.0 Handheld Touch Screen PDA With Multiple Data Collection MethodsUS$ 350 - 420MOQ: 1 Unit

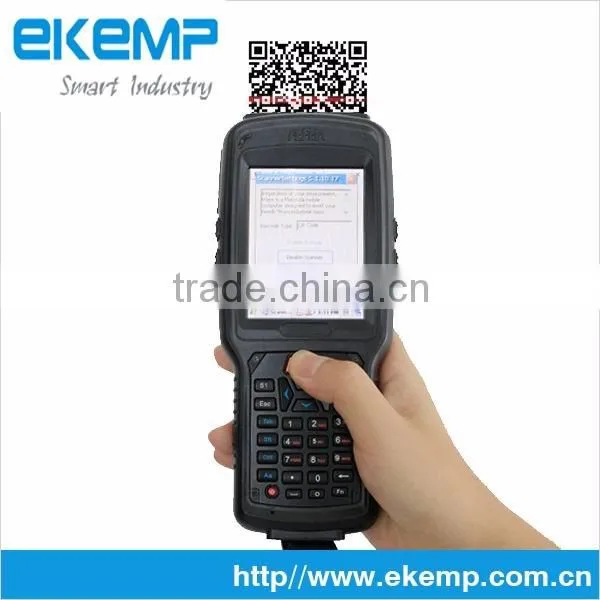

EKEMP All-in-one Industrial PDA X6
Key Features:
The model X6 is a mute-functional industrial rugged handheld PDA with powerful functions.
1. Windows CE or Android OS optional combined with free SDK simplify your secondary development;
2. High level CPU 1G Hz SAMSUNG ARM Cortex A8;
3. High-capacity RAM 256MB or 512MB, ROM 512MB, MSD 32GB max;
4. 3.5” big screen with TFT 480*640 VGA or 320*240 QVGA optional;
5. Obligate space highly expandable for Barcode, RFID, SAM, OCR etc;
6. Long life Build-in Li-battery (4000mAh) makes it easy to use anytime anywhere;
7. IP65 approved.
Details:
|
Performance | ||
CPU |
SAMSUNG ARM Cortex A8 1GHz |
|
RAM |
Mobile DDR 256MB or 512MB |
|
OS |
Android 4.0 or Windows CE 6.0 ER3 |
|
Keyboard |
34 Keys |
|
Interface |
USB 2.0 OTG, USB Host 1.1,SPI, RS-232 |
|
Memory |
ROM |
MLC NAND Flash 512MB |
EXPANSION |
Micro SD,supports Max 32GB |
|
Bluetooth |
Class V2.1-EDR |
|
WIFI (Optional) |
802.11b/802.11g/802.11n |
|
3G |
GSM/GPRS/WCDMA HSDPA optional |
|
GPRS |
U-block NEO-6th,Support AGPS, DGPS,RTK can be customized |
|
Camera |
Vibration Motor & LED Indicator |
|
3.0Mega,ixelsAUTOFOCUS,Flashlight | ||
Functions | ||

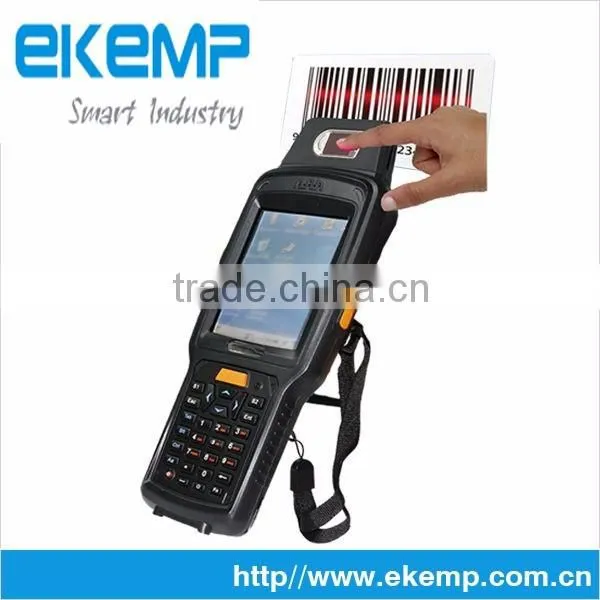

Barcode scanner |
1DSymbol SE95(Option 2D Symbol SE4500orHoneywell IT5100) |
|
Fingerprint |
508 DPI meets (Fingerprint Module can be removable) |
|
RFID (Optional) |
HF 13.56Mhz, ISO/IEC 14443A/B,ISO15693 |
|
LF 125k,134.2khz ISO-11784/11785 | ||
UHF 860~950Mhz EPC Gen2,ISO180006 | ||
MR ZOCR Scanner |
Snapped MRZ OCR Scanner,ICAO Documents 9303 standard. |
|
Physical characteristics | ||
Power |
DC5v |
|
Battery |
4000mAH Li-ion(Rechargeable) |
|
Storage Temp. |
_20°C ~ +60°C |
|
Operation Temp |
_10°C~ +45°C |
|
Operation Hum |
5% ~ 90% |
|
Size |
192x82.0x30(mm) ;228 x 82 x 30(mm) (with fingerprint ) |
|
Weight |
around 300g(without fingerprint);330g (with fingerprint) |
|

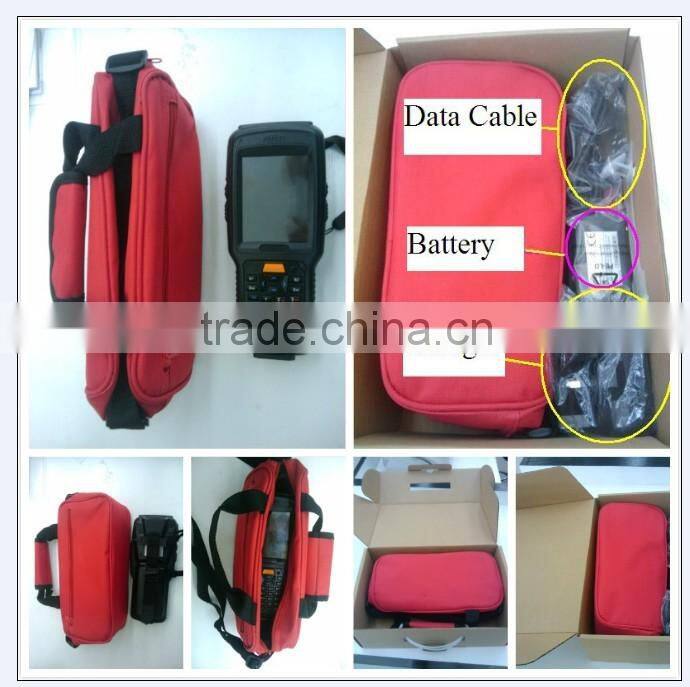

Accessories |
1Batterym,1 Stylus with hand strip,1 USB cable,1 AC charger, Optional,S232 cable,Cradle,Carcharger,USBhost Ethernet |
|
Endurance |
Sleeping |
More than 5days |
Working |
More than 8 hours |
|
Recharge Time |
around 5 hours |
|
Certification |
CE UN38.3 RoHS CCC |
|
Sealing Standard |
IP65 |
|
Drop Durability |
Withstand1.5meter drop on to concrete |
|
Images:

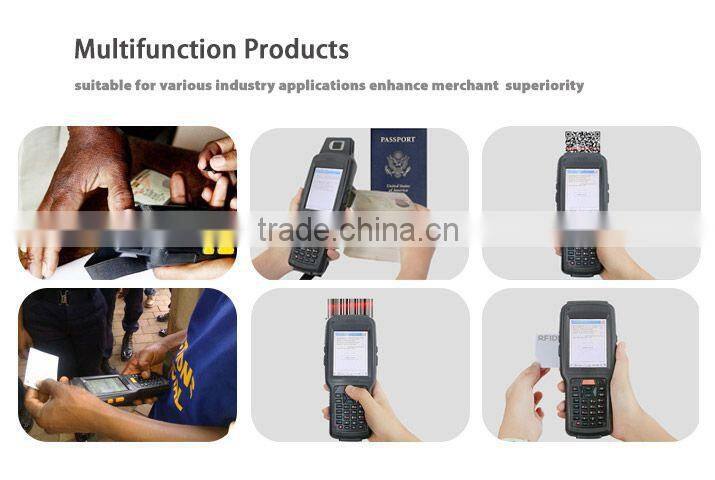

Solutions:
Free SDK is provided for customers' secondary development; also we can customize the application software if required. As specialized in the field for many years, we have accumulated a lot of experiences in the following field.
1) Hotel/Supermarket/Retail/Kiosk/Restaurant/Convenience store management.
2) Money Transfer, E-Wallet, E-voucher, E-top-up, Instant Mobile Remittance.
3) Travel & Ticket billing for Air Ticket, Railway, Subway, Taxi, Bus, Movie.
4) Bill Payment in Electricity, GAS, Insurance, Charity.
5) Prepaid Recharge for Gift card and Loyalty card.
6) Lottery, Surveying, and other applications.

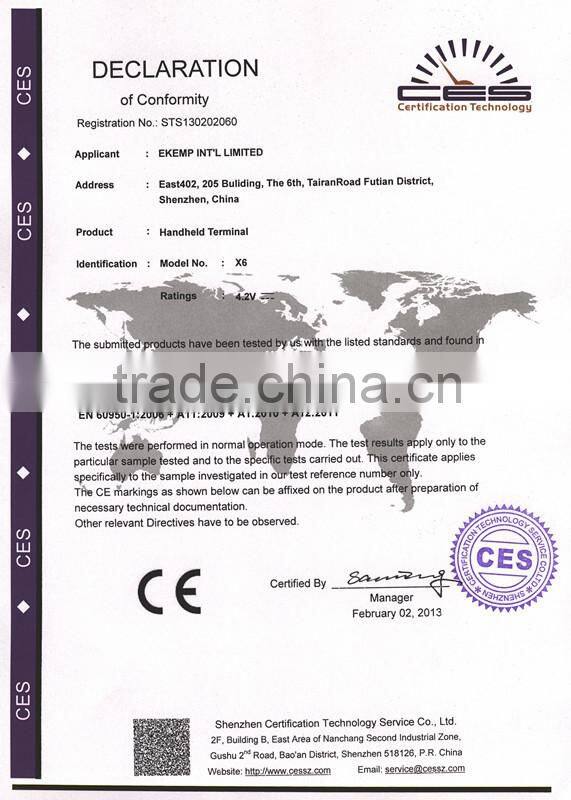

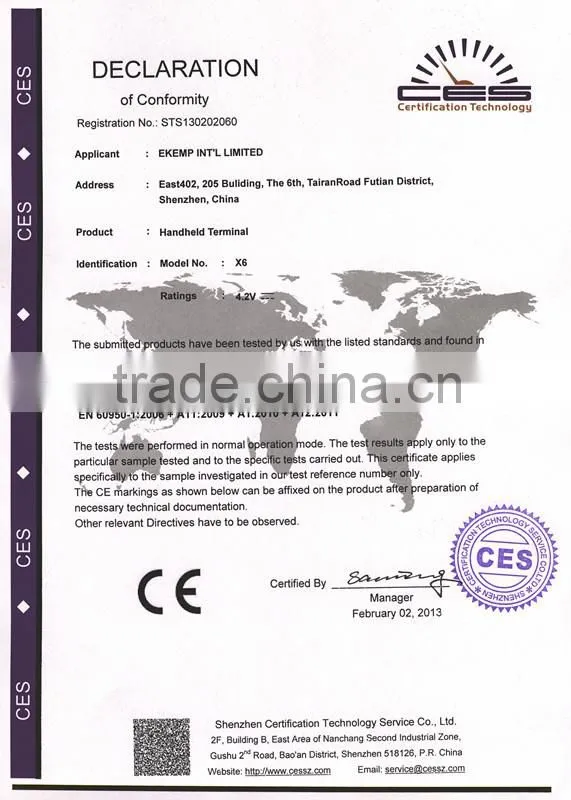

Certification:
