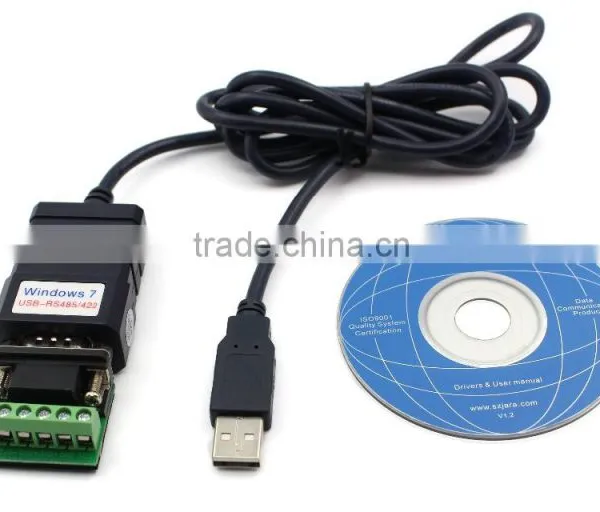

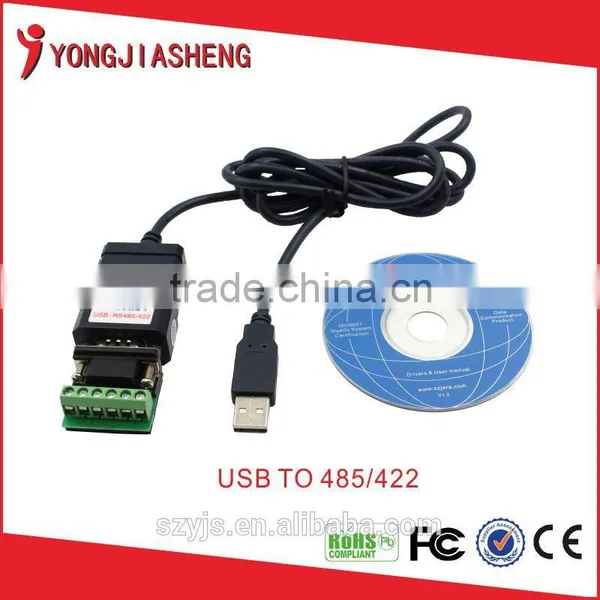

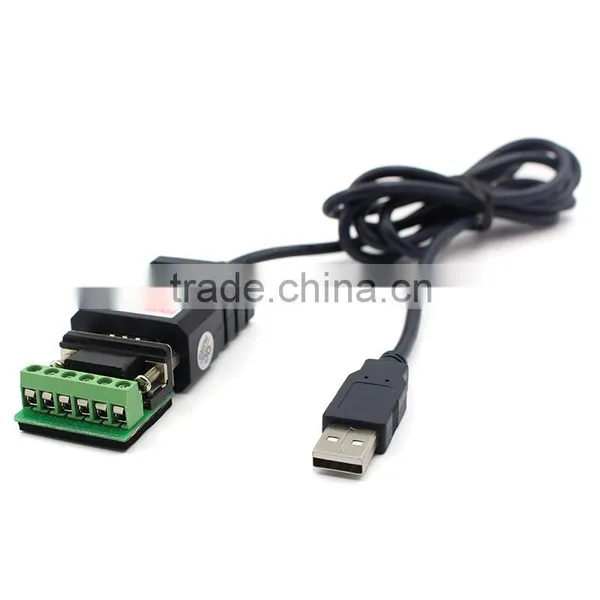

Help CenterUSB to Rs422 Adapter USB to Rs485 Converter
Related Products
-
Poewr Active RS232 to RS485US$ 7 - 9MOQ: 10 Pieces -
Wholesale Interface Rs232 to Rs485 ConverterUS$ 0.01 - 2.5MOQ: 100 Pieces
-
Passive Terminal Connector RS232 to RS485 ConvertorUS$ 2 - 2.5MOQ: 100 Pieces
-
RS232 to RS485 ConvertorUS$ 2 - 2.5MOQ: 100 Pieces
-
RS232 to RS485 Adapter for Security SystemUS$ 2.3 - 3.5MOQ: 10 Pieces
Performance parameters
- Standards: conforming to USBV1.0, 1.1 and 2.0 and EIARS-232.
- USB signals: VCC, DATA+, DATA-, GND and FG.
- RS-232 signals: DCDRXDTXD DTR GND DSR RTS CTS RI
- Working mode: asynchronous point-to-point.
- Direction control: adoption of automatic data streamcontrol for automaticrecognition and control of data transmission direction.
- Baud rate: 300-921.6Kbps, automatic detection of the transmission rate of theserial interface signal.
- Transmission distance: 1200 meters for RS-485422 and less than 5 meters for USB.
- Interface protection: +-15KVelectrostatic protection.
- Interface forms: B interface female connector and DB9 male com port connector for USB.
- Transmission media: twisted-pair cable or shielded cable.
- Dimensions: 1555mmX55mmX36mm.
- Working environment: -25°C to 70°C , relative humidity 5%to 95%
- Windows95/98/2000/XP/Win 7/Vista and IMAG are supported.
- Both BUS and external power supply are supported.
Connector and signal
RS-485/RS-422 output signals and PIN assignment
| DB9 Connector(PIN) | Output Signal | RS-422 full-duplex | RS-485 half duplex |
| 1 | T/R+ | Sending (A+) | RS-485(A+) |
| 2 | T/R- | Sending(B-) | RS-485(B-) |
| 3 | RXD+ | Receiving(A+) | NULL |
| 4 | RXD- | Receiving(B-) | NULL |
| 5 | GND | Grounding | Grounding |
| 6 | N/A | ||
| 7 | N/A | ||
| 8 | N/A | ||
| 9 | N/A |
2. USB-B female: USB output signals and PIN assignment
Communication Connection Chart
1- Standard USBAtype male connector
2- Filter magnetic pole
3- Transparent and shielded standard 2.0 communication line
4- Fine shell(blue)
5- Standard DB9 male connector
6- MCU adopts the product of the TaiWan chip
USB to RS-232 Communication
Problems and troubleshooting
1. Data communication failure
A. Check to make sure USB cable is OK.
B. Make sure RS-485422 output interface connection is correct.
C. Make sure power supply is OK.
D. Make sure the wire terminal connection is OK.
E. Make sure the indicator lights flash when receiving.
F. Make sure the indicator lights flash when sending.
2. Data missing or incorrect
A. Check to see whether the data rate and format at both ends of thecommunication equipment are consistent.
1.We also provide 16-month free maintenance. The buyer should return the Surge Protector product in the original conditions to us and should bear the shipping costs for return. If any part is required to be replaced, the buyer should also pay for the costs of the parts to be replaced.
2.Before returning the items, please confirm the return address and the logistics method with us. After you give the items to the logistic company, please send us the tracking number. As soon as we receive the items, we will repair or exchange them ASAP.
3.We will refund you if you return the items within 15 days of your receipt of the items for any reason. However, the buyer should make sure that the Surge Protector items returned are in their original conditions. If the items are damaged or lost when they are returned, the buyer will be responsible for such damage or loss, and we will not give the buyer a full refund. The buyer should try to file a claim with the logistic company to recover the cost of damage or loss.
The buyer will be responsible for the shipping fees to return the items.
